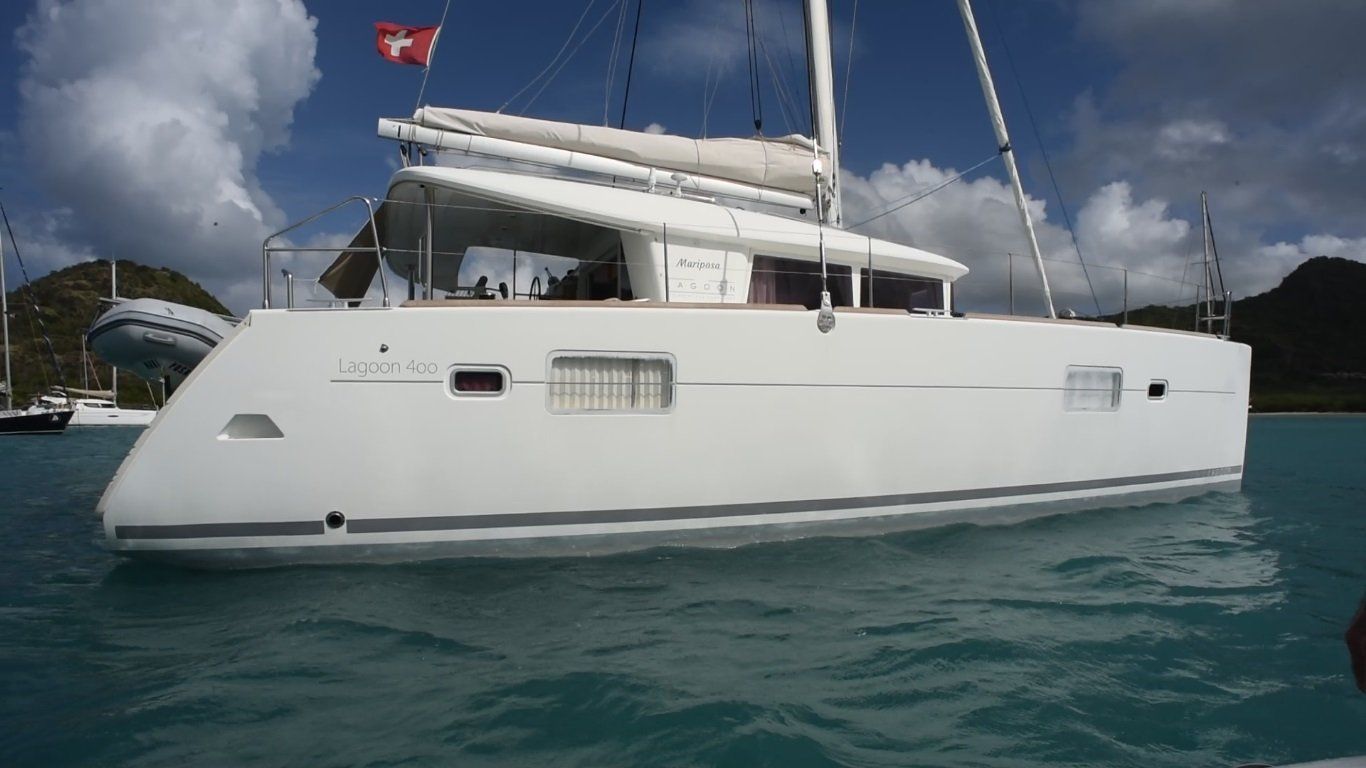

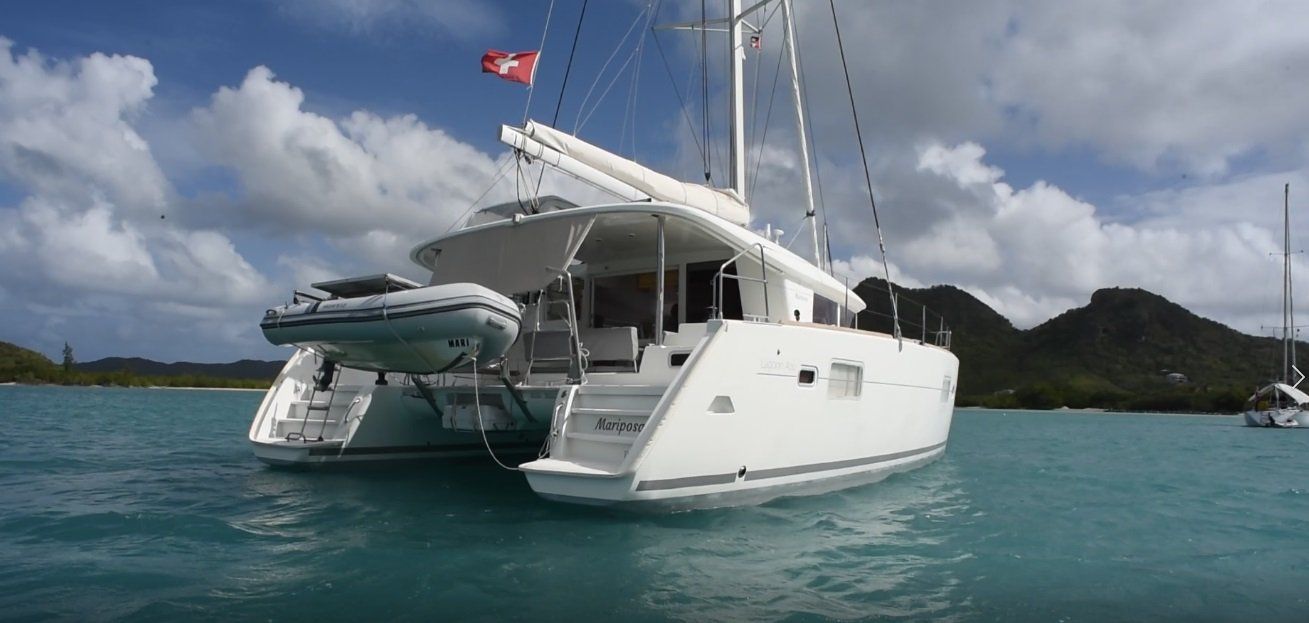

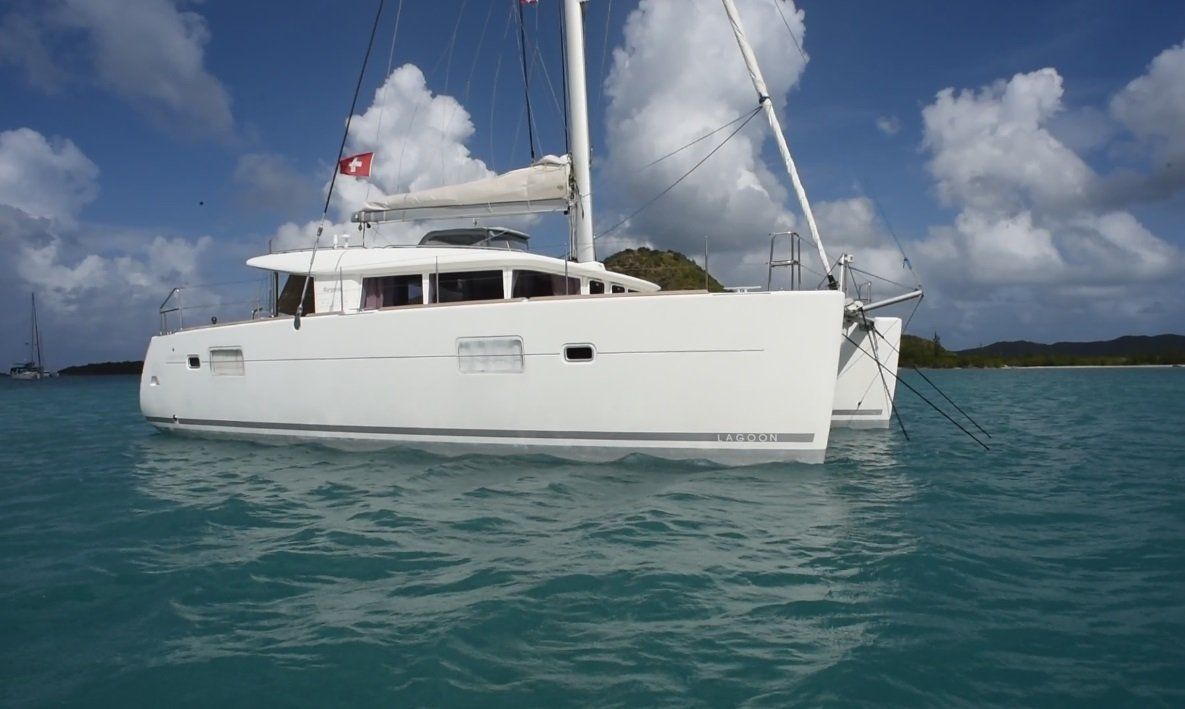

LAGOON 400 - SOLD

VESSEL INFORMATION

ASKING PRICE

SOLD

LAUNCHED
2011
LENGTH
39' 3"
BEAM
23' 9"
DRAFT
4'
GUESTS
6
CABINS
3
HEADS
2
ENGINE
Yanmar 40 hp (x2)
HULL
GRP - White
DESIGNER
Van Petheghem/Lauriot-Prévost
BUILDER
Lagoon Catamarans

VESSEL SPECIFICATION

Description:

OWNERS VERSION NEVER CHARTERED

Immaculately maintained by Swiss owners, this one's 10/10. She crossed the Atlantic and has spent three seasons cruising the Caribbean. She's in a perfect sail-away condition and located on the beautiful island of Antigua.

VIDEO WALK THROUGH AVAILABLE ON REQUEST
  • Loads of new equipment.
  • Lazy bag 2018
  • New starter batteries 2018
  • New 230 feet chain 2018
  • New dingy and outboard 2017
  • Electronics 2017
  • Epirb 2017
  • Washing machine 2017
  • Generator 2017
  • Solar panels and regulator 2017
  • Cockpit sun cover 2017
  • New AIS receiver 2017

Additional Specs, Equipment and Information:

Specs
Builder: Cata Lagoon
Flag of Registry: Switzerland
Keel: Other
Hull Shape: Catamaran

Dimensions
LOA: 39 ft 3 in
Beam: 23 ft 9 in
LWL: 37 ft 7 in
Maximum Draft: 4 ft 0 in
Bridge Clearance: 66 ft 7 in
Dry Weight: 22817 lbs

Engines
Total Power: 80 HP

Engine 1:
Engine Brand: Yanmar
Year Built: 2011

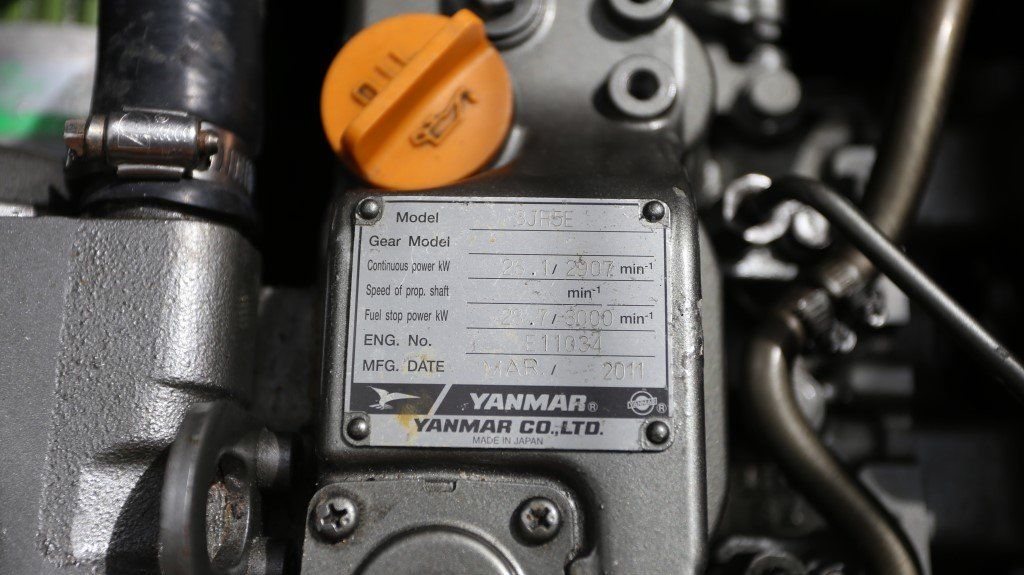

Engine Model: 3JH5ACE
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Starboard
Engine Hours: 1650
Propeller: 3 blade propeller
Drive Type: Sail drive
Engine Power: 40 HP
Engine 2:
Engine Brand: Yanmar
Year Built: 2011
Engine Model: 3JH5ACE
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Port
Engine Hours: 1650
Propeller: 3 blade propeller
Drive Type: Sail drive
Engine Power: 40 HP
Cruising Speed: 6 mph @ 1800 RPM
Maximum Speed: 9 mph

Tanks
Fresh Water Tanks: 2 Plastic (79 Gallons)
Fuel Tanks: 2 Plastic (53 Gallons)
Holding Tanks: 2 Plastic (20 Gallons)

Accommodations
Number of cabins: 3
Number of heads: 2

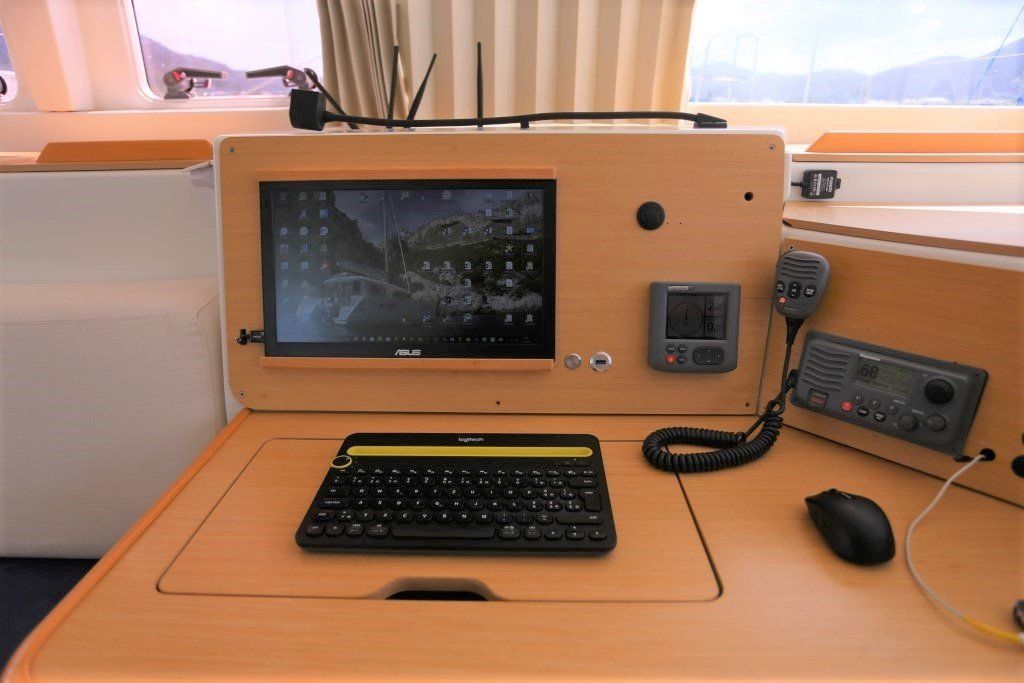

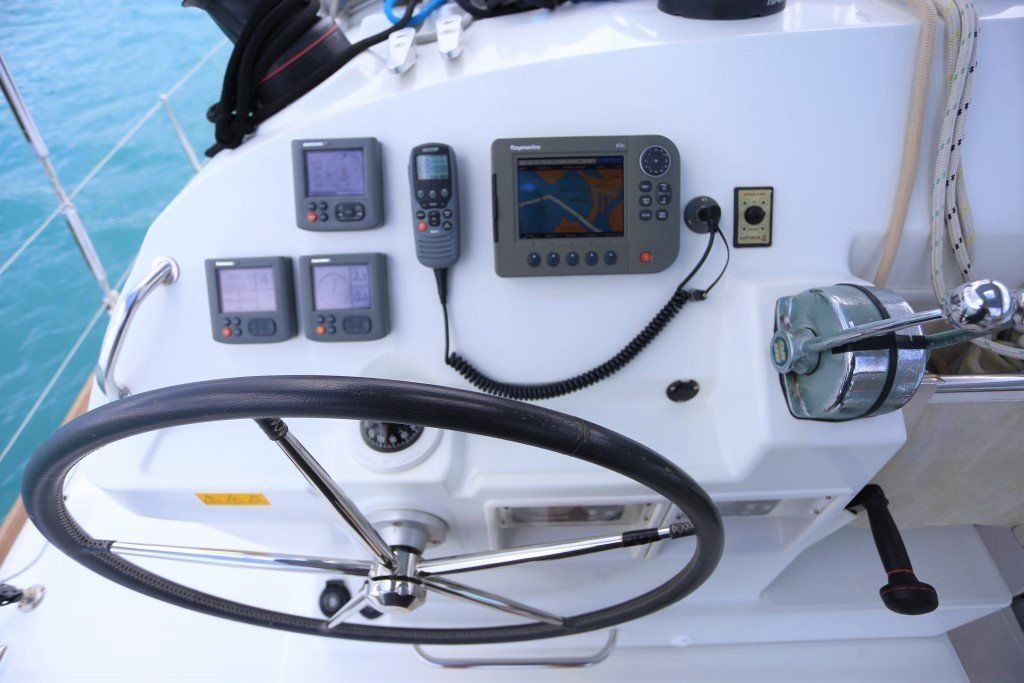

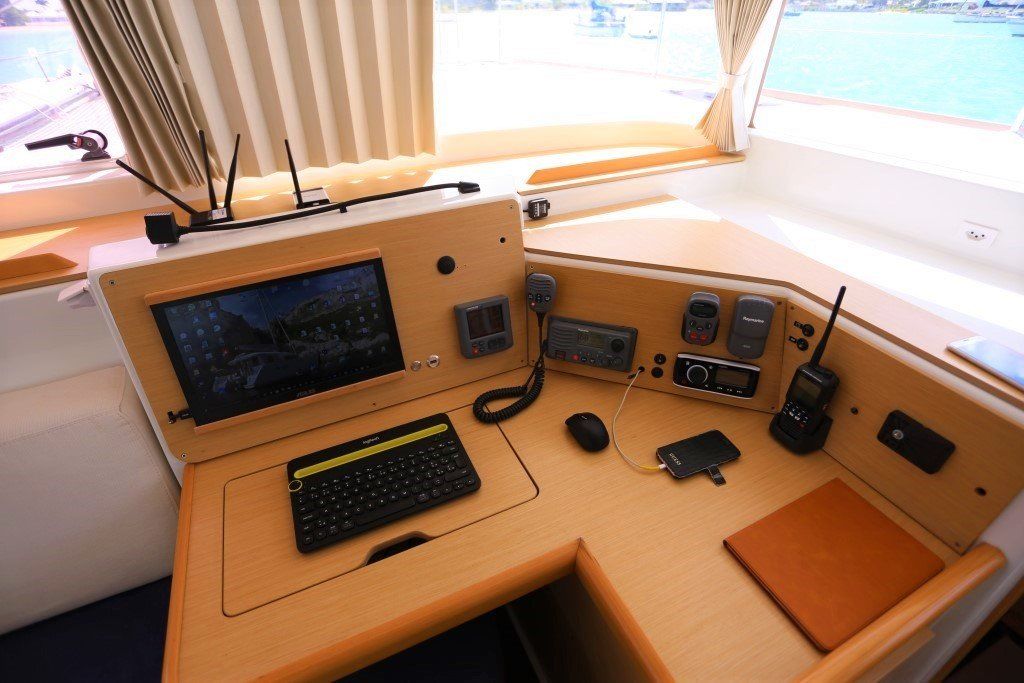

Electronics
  • Autopilot - Raymarine Spx30 (Smartpilot core new) with S100 remote (new 2017)
  • Compass - Plastimo
  • Plotter - Raymarine A70
  • Depthsounder - Raymarine
  • Radar Detector
  • Radio - Fusion MS-RA50 (Bluetooth)
  • Wind speed and direction - Raymarine
  • Cockpit speakers - 4 x Speakers
  • Repeater(s) - 2 x Raymarine
  • Log-speedometer - Raymarine
  • VHF - Raymarine 55E
Sails
  • Fully battened mainsail
  • Furling genoa
  • Gennaker/Cruising spinnaker - 75 m2 Triradial (sail must be repaired) with KSF2 Furler set Top down drum & swivel
Rigging
  • Steering wheel
  • Spinnaker pole
  • Electric winch
Inside Equipment
  • Battery charger - 2 x Cristec (85 - 265 volt 47 - 65 Hz)
  • Electric bilge pump - x 2

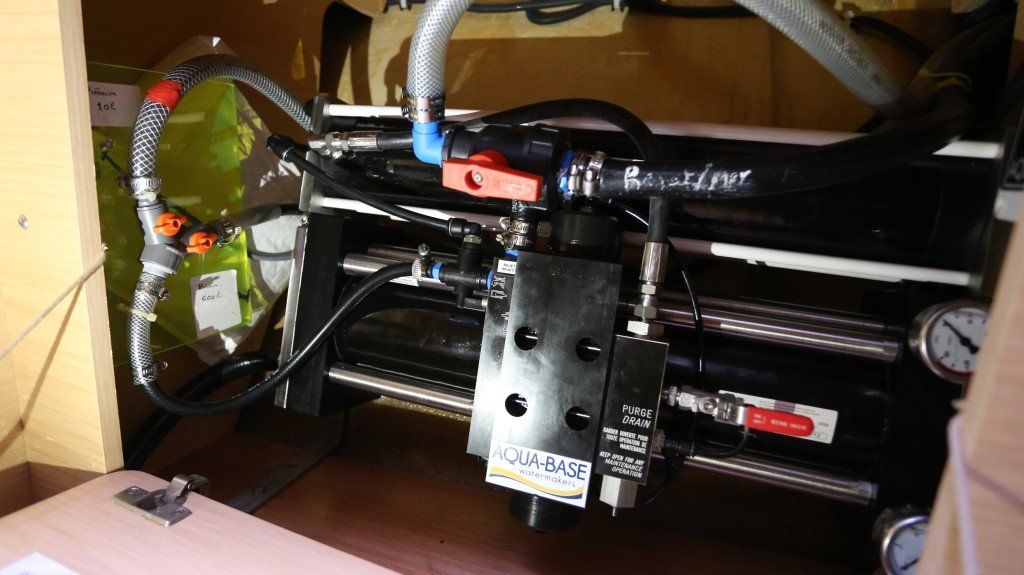

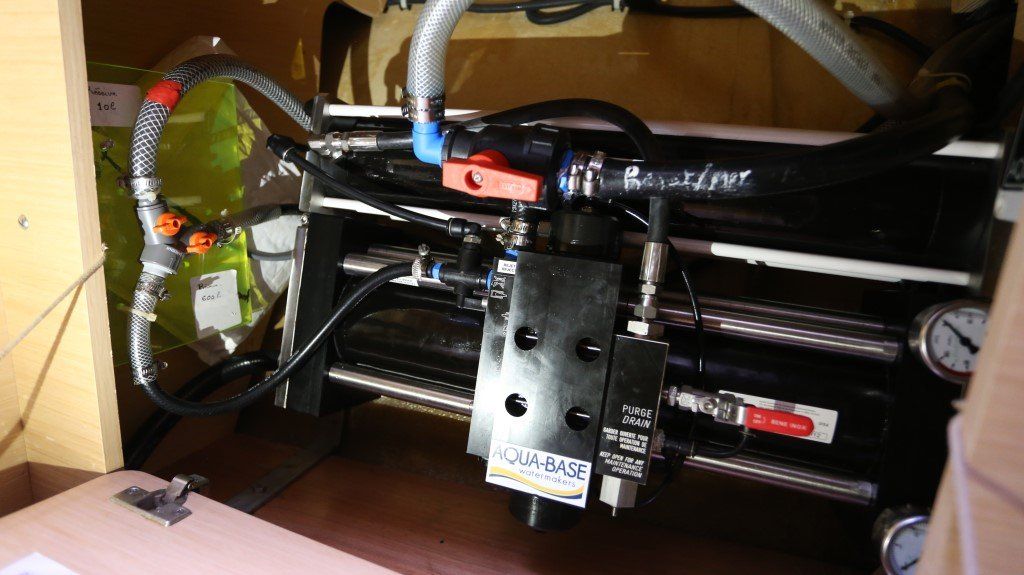

  • Fresh water maker - Aqua Base 35 Serviced 2017
  • Oven - Eno oven and grill

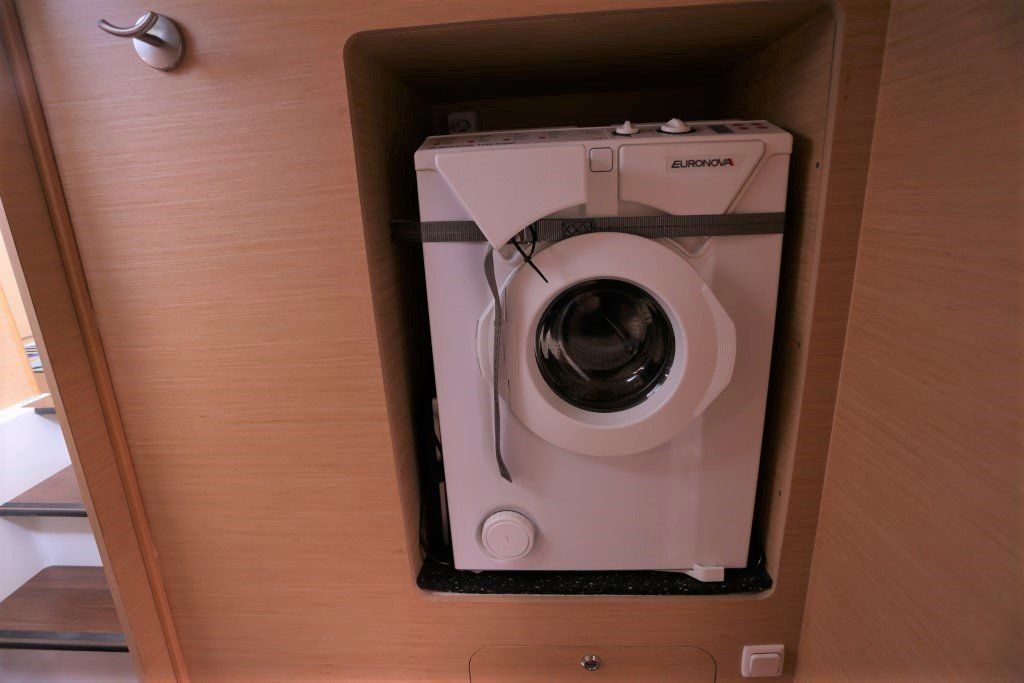

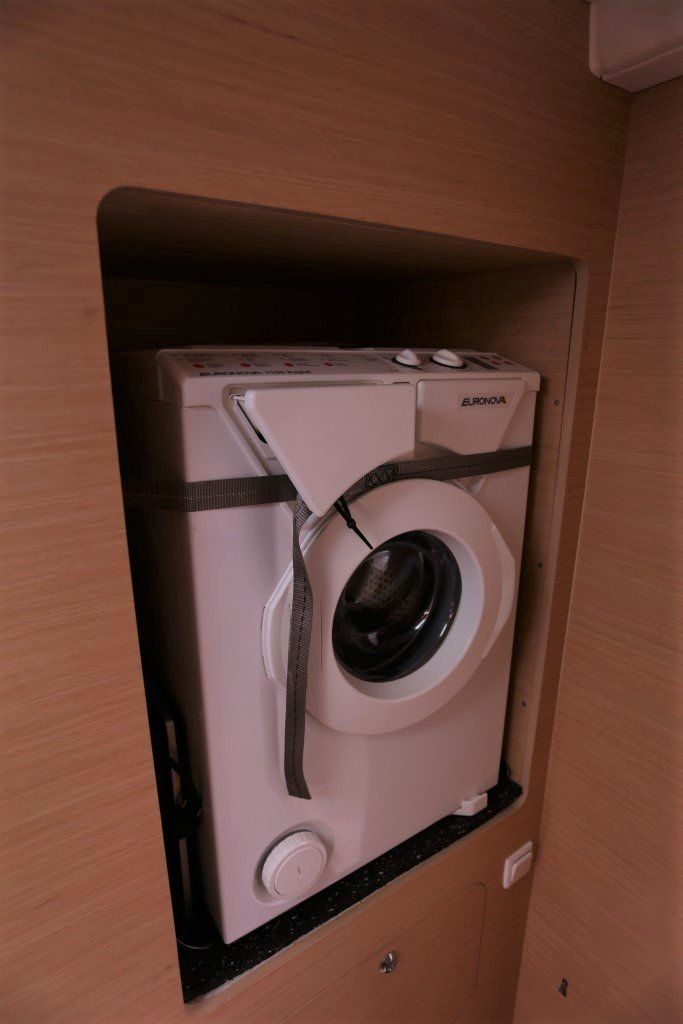

  • Washing machine - Euronova 1150 3kg
  • Manual bilge pump - x 2

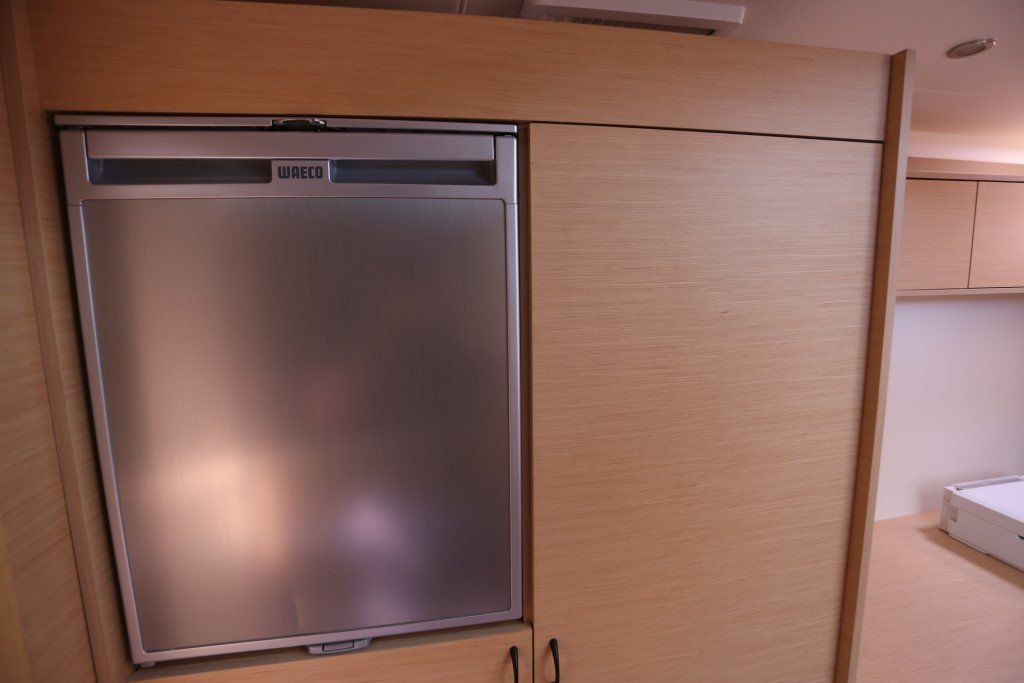

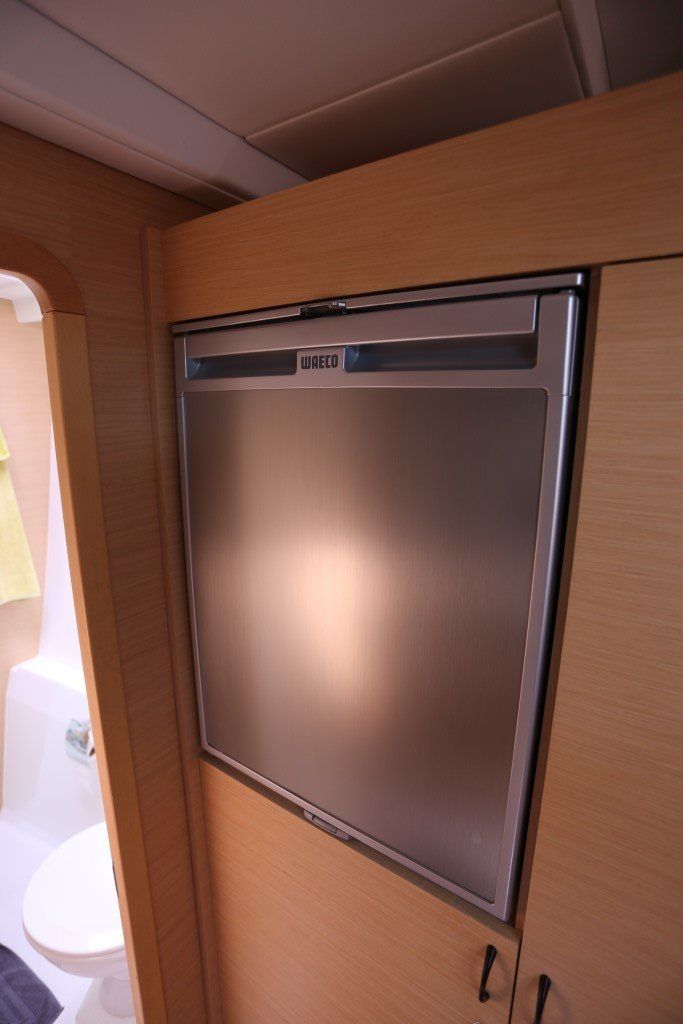

  • Refrigerator - Vitifrigo 130 lt. and Waeco 80 lt. and a Dometic coolfreeze CF16 portable fridge / freezer
  • Hot water - Quick water heater 40 lt. / 10.56 gal
  • Sea water pump
  • Deep freezer - Dometic coolfreeze CF16 portable
  • Electric head - 2 x Electric with 2 x spare pumps
Electrical Equipment
  • Shore power inlet

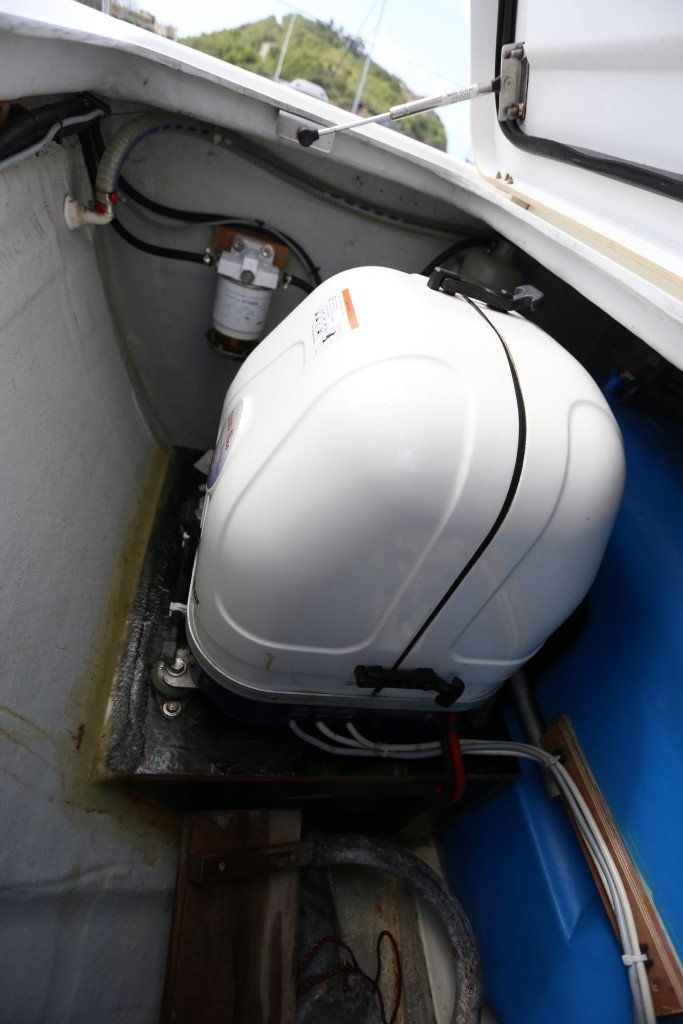

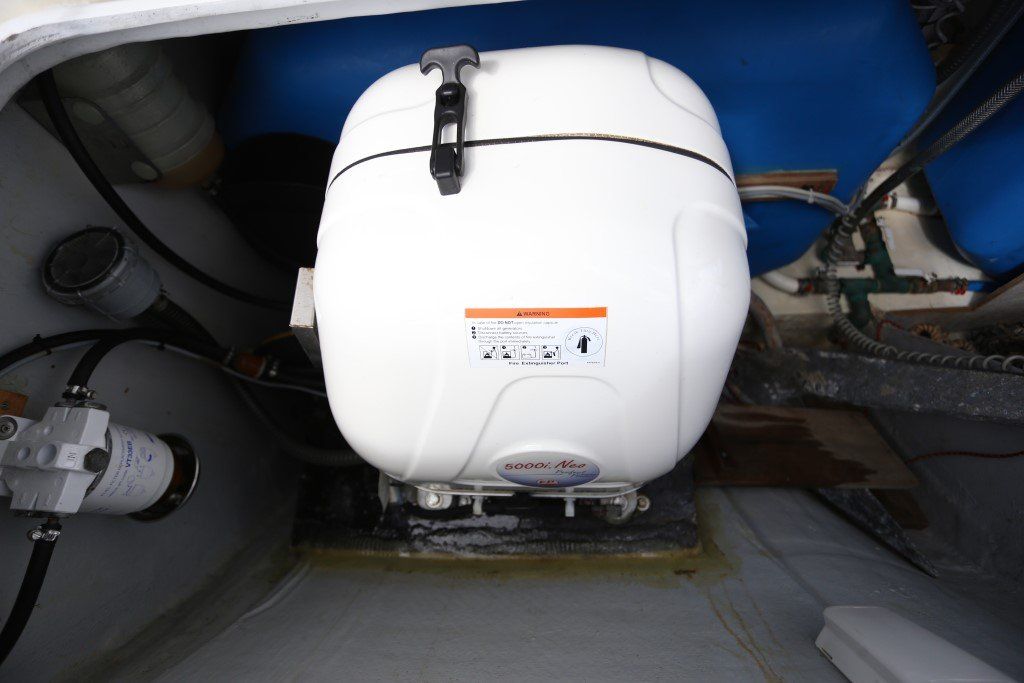

  • Generator - Fisher Panda 5000 iNeo with 60 lt. fuel tank
  • Inverter - 2000 watt Sinus Inverter
Outside Equipment/Extras
  • Cockpit table
  • Tender - Highfield CL 290 BL Hyparlon with Yamaha F9.9 MHS NEW 2017
  • Radar reflector
  • Cockpit cushions
  • Swimming ladder
  • Liferaft - Zodiac open water ISO 6P T1A (6 person)
  • Outboard engine brackets

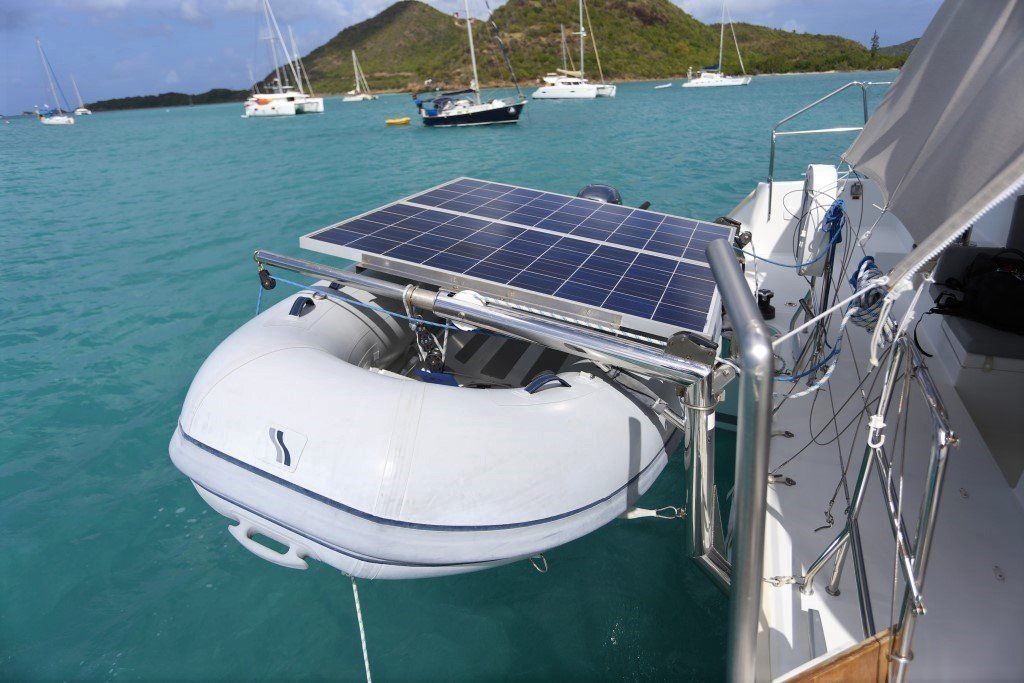

  • Davits

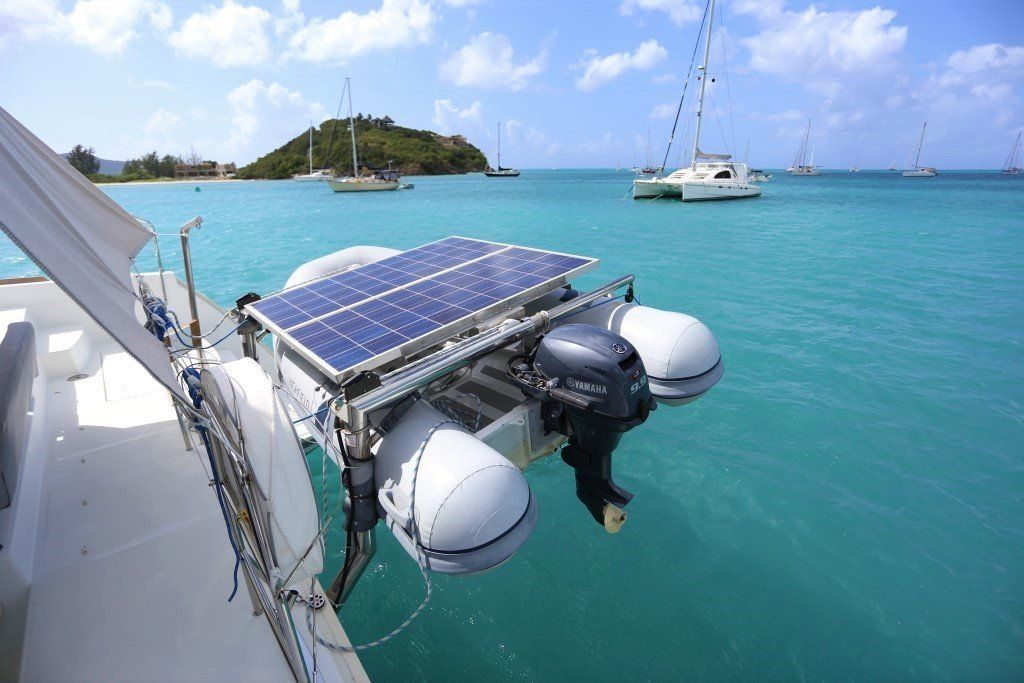

  • Solar panel - 4 x panels 470 watts 2 x NEW 2017
  • Cockpit shower - and seawater deck washdown
Covers
  • Cockpit cover - with sun protection cover new 2017
  • Bimini Top
  • Lazy bag - New 2018
  • Lazyjacks
  • Spray hood
Construction
  • Polyester and high quality anti-osmotic resin
  • FRP construction
  • Infused Balsa cored hull construction - white
  • gelcoat
  • Below the waterline: infused Hull bottom in
  • solid GRP
  • Bridge deck and deck in balsa sandwich.
  • Vacuum bagged and infused with high quality
  • anti osmotic resin and polyester resin
  • Solid glass or core-mat sandwich one-piece liners
  • Glassed or bonde laminated wood bulkheads

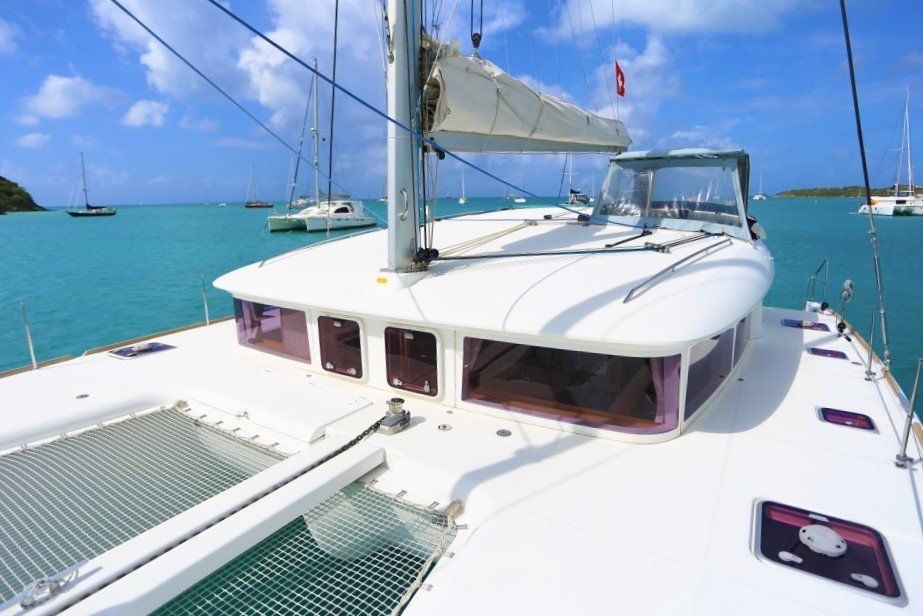

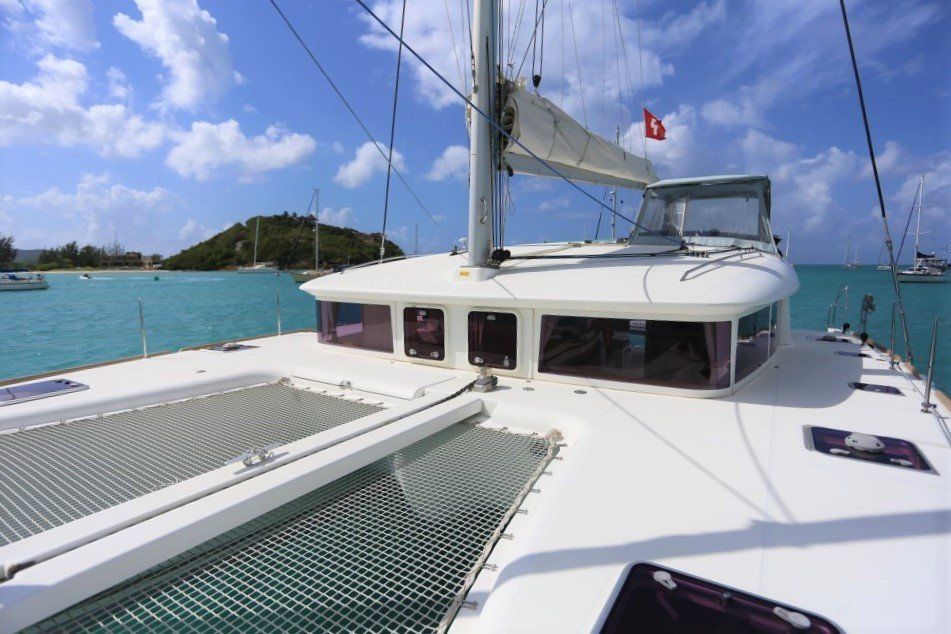

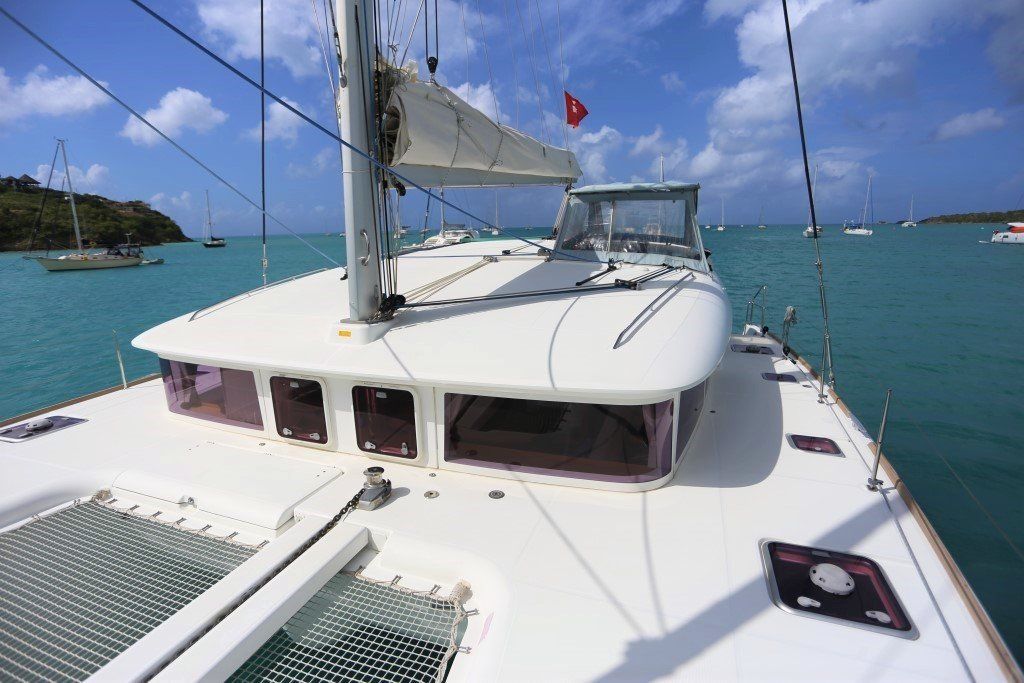

Deck Equipment
  • 8 mooring cleats
  • 12V/1000w electric anchor windlass in anchor locker with 10 mm gipsy

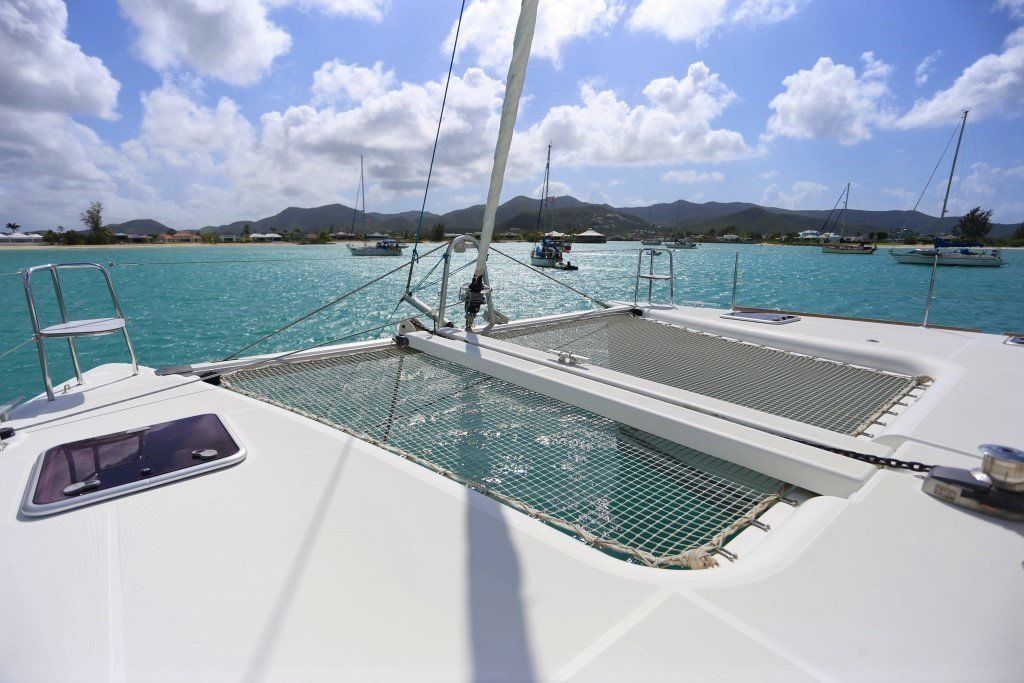

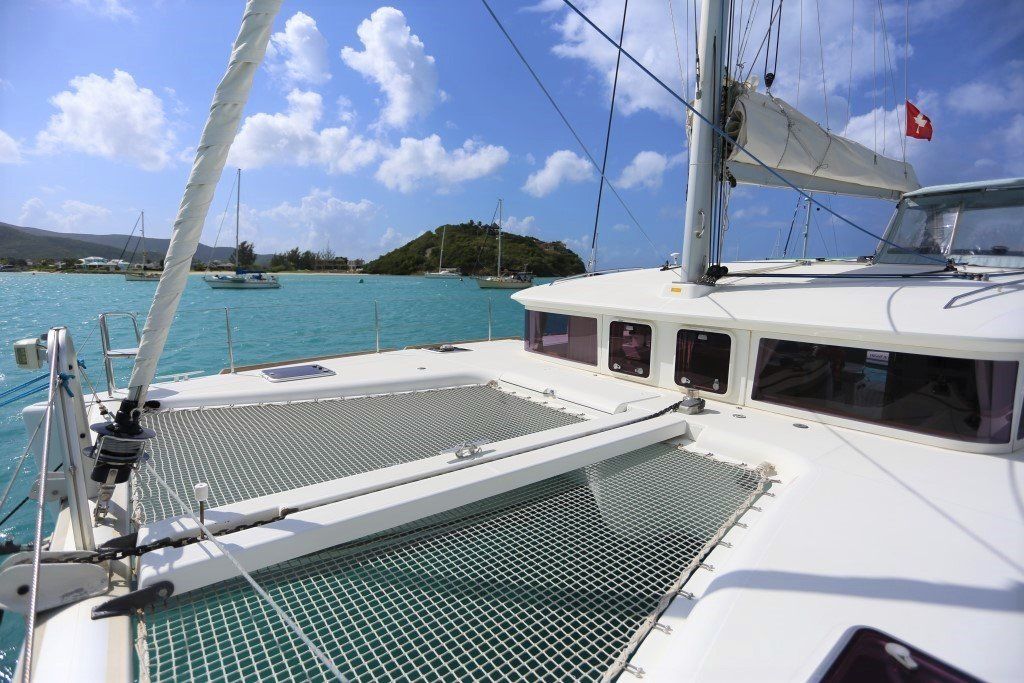

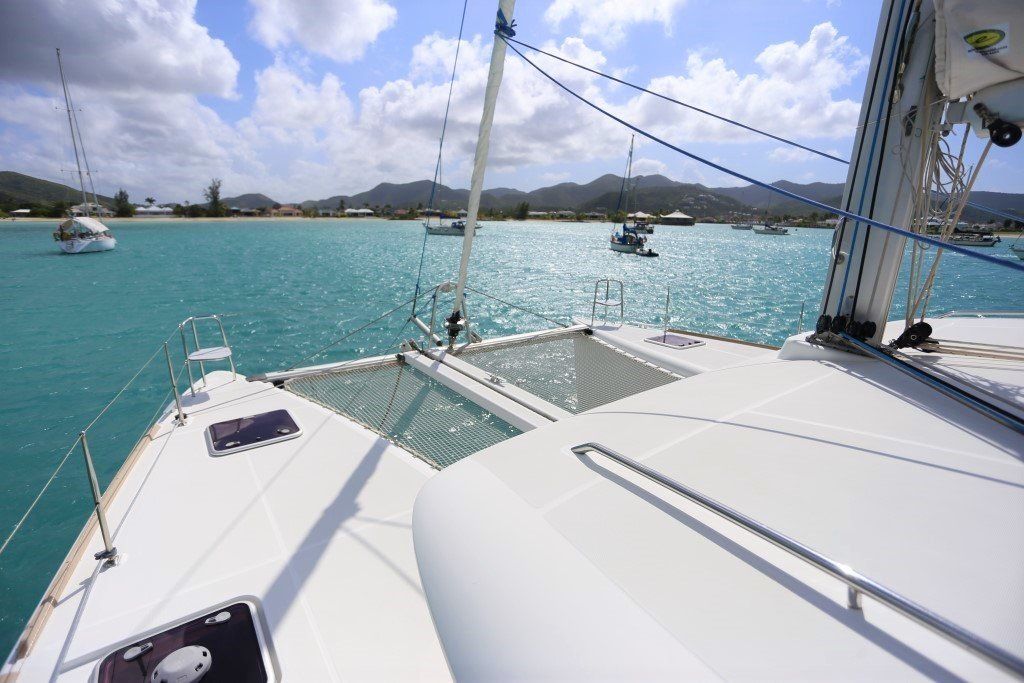

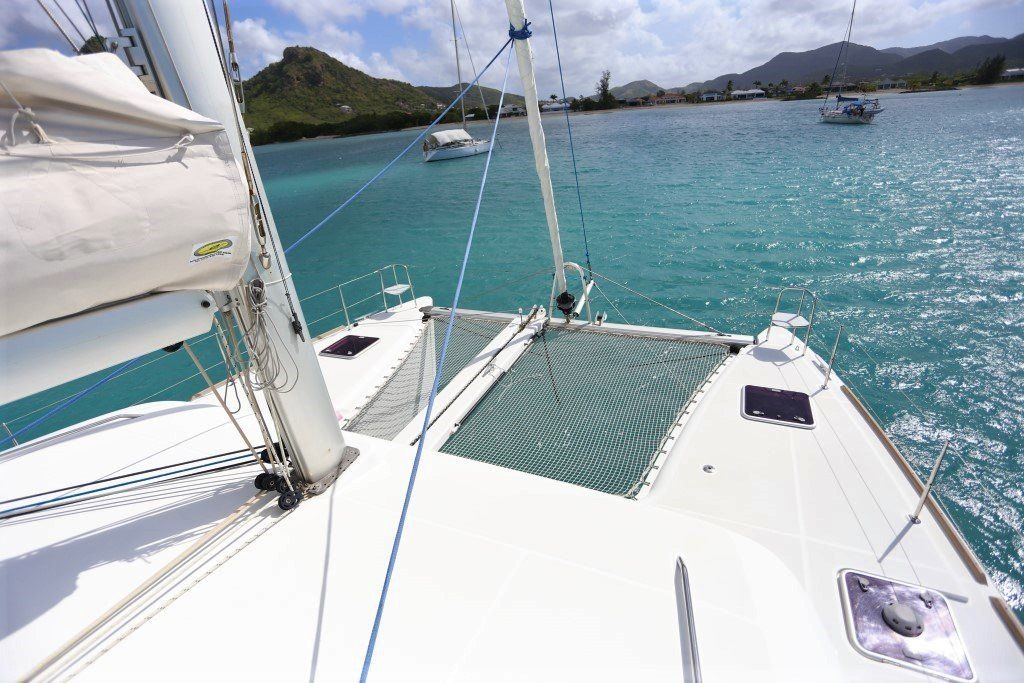

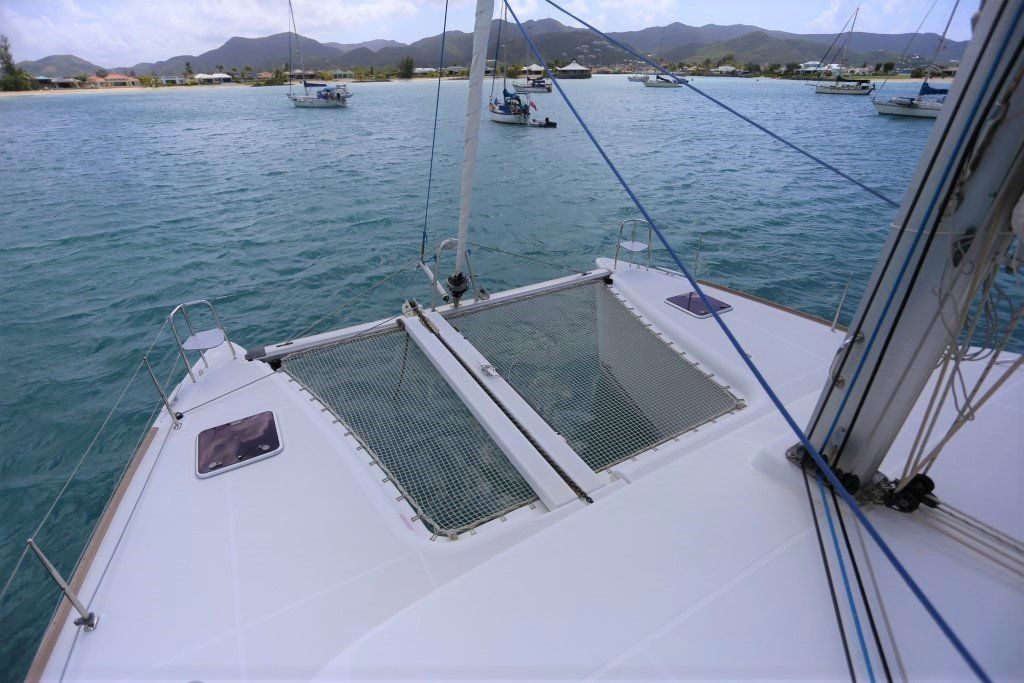

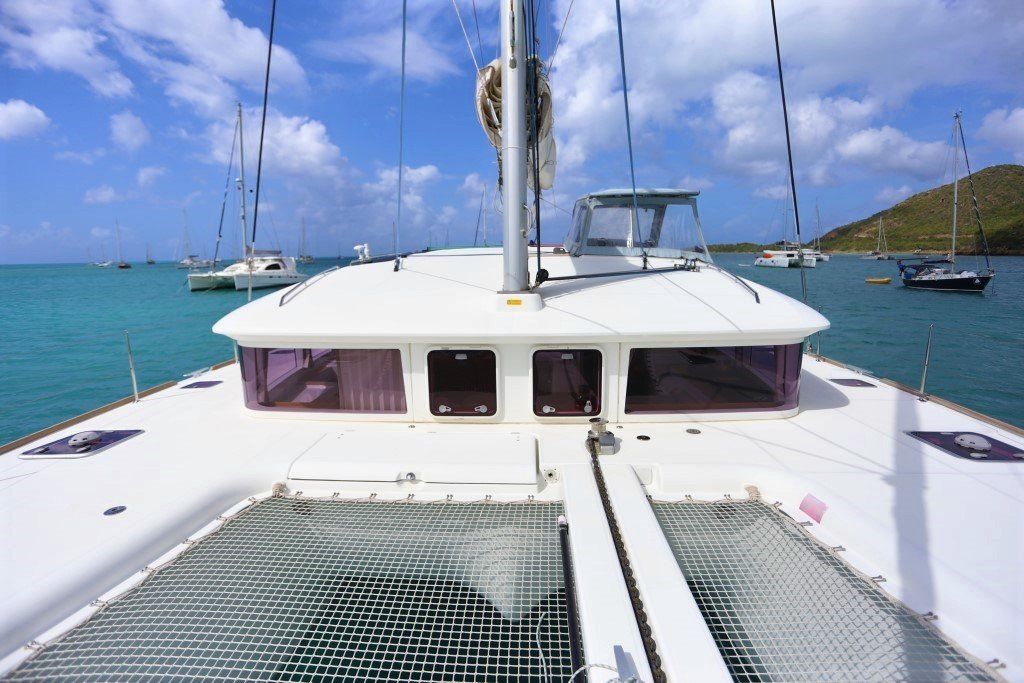

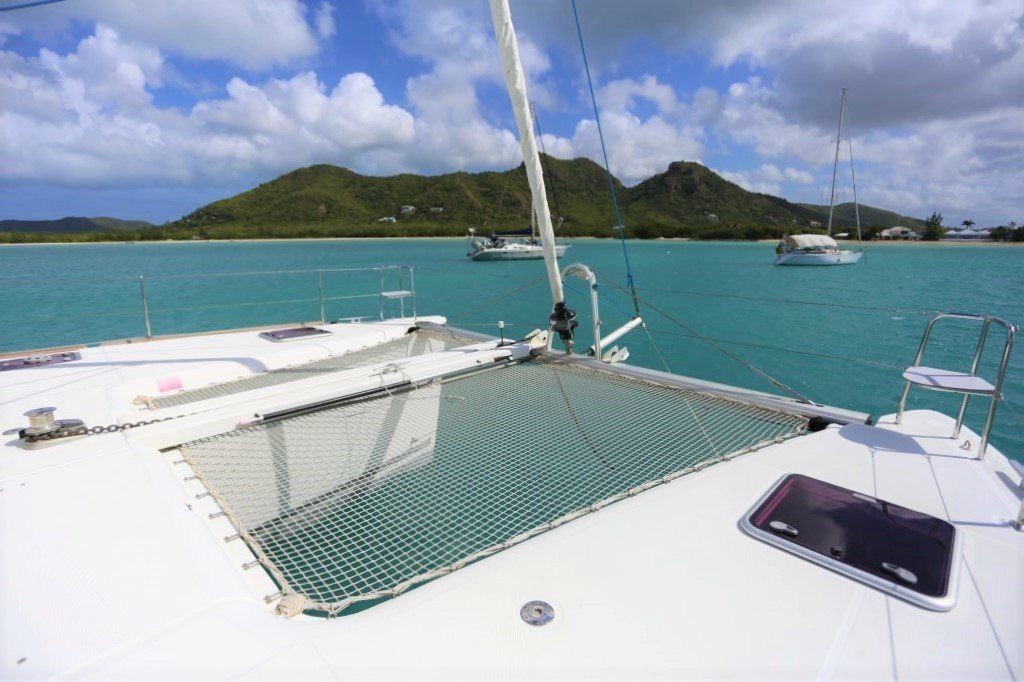

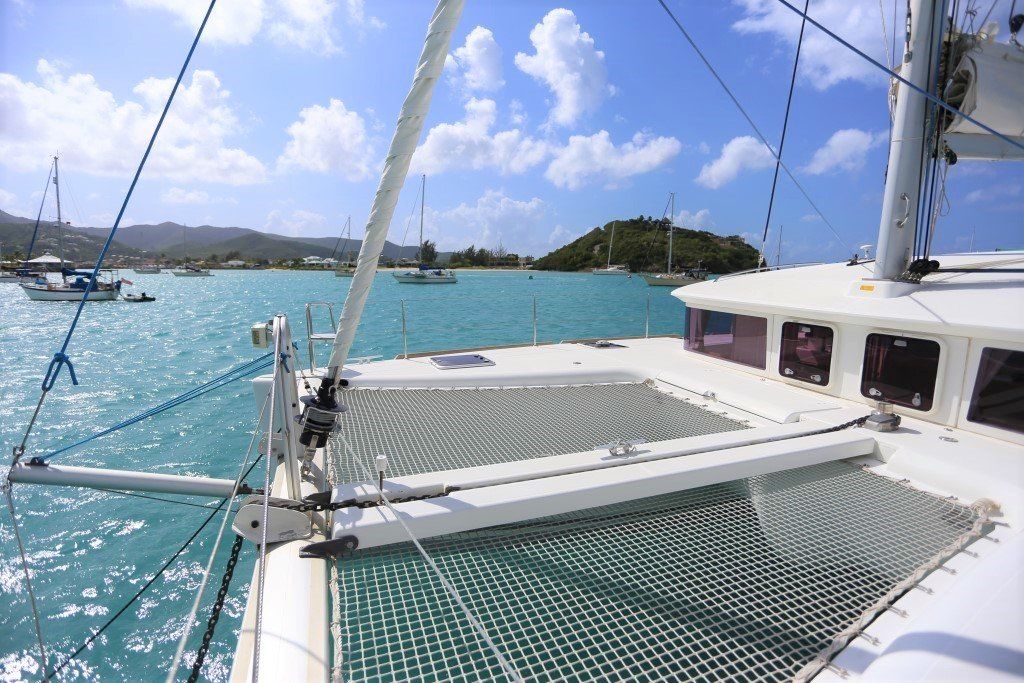

  • Bow safety net with knot-less nylon netting
  • Outboard stern stainless steel pulpits
  • Inboard stern stainless steel pulpits with horseshoe buoy and flag pole mounts on one side
  • Composite forward longitudinal beam with recessed chain run and mooring cleat
  • Aluminium crossbeam with forestay chainplate, anchor roller and 1 nav light
  • Stanchions
  • Double level stainless steel lifelines
  • Triple level stainless steel lifelines on aft beam
  • Stainless steel coachouse-mounted handrails
  • Stainless steel hard top supports-mounted handrails

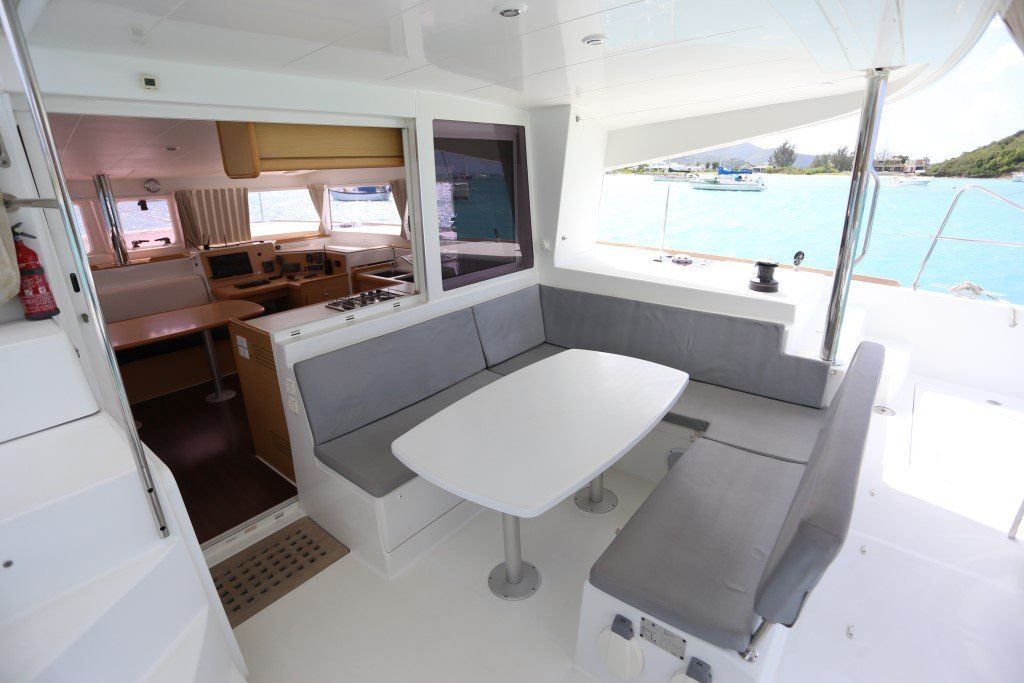

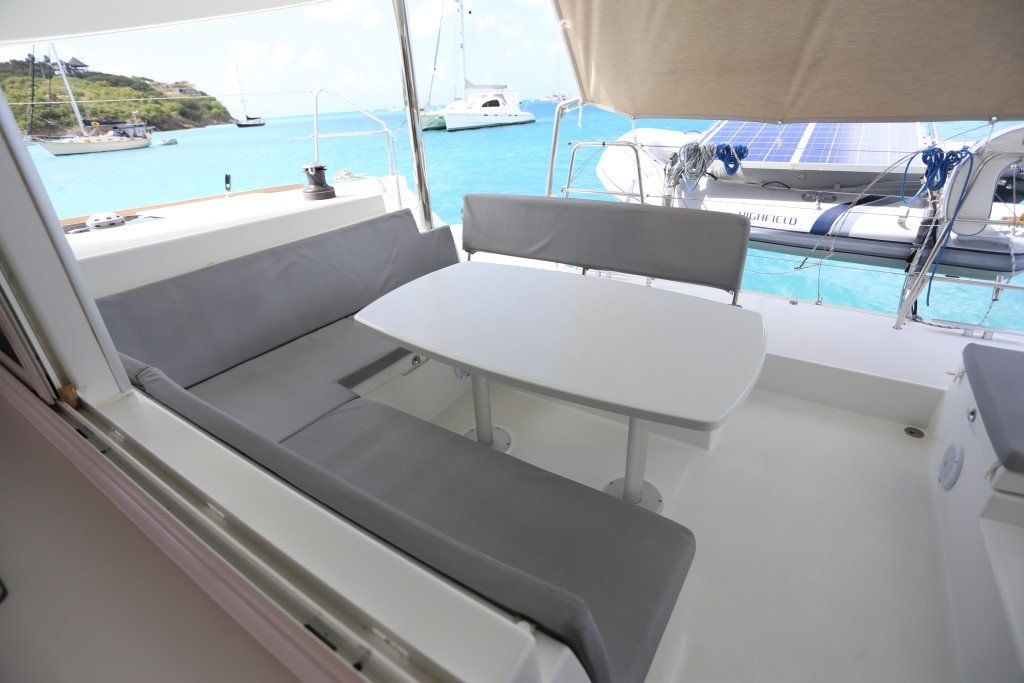

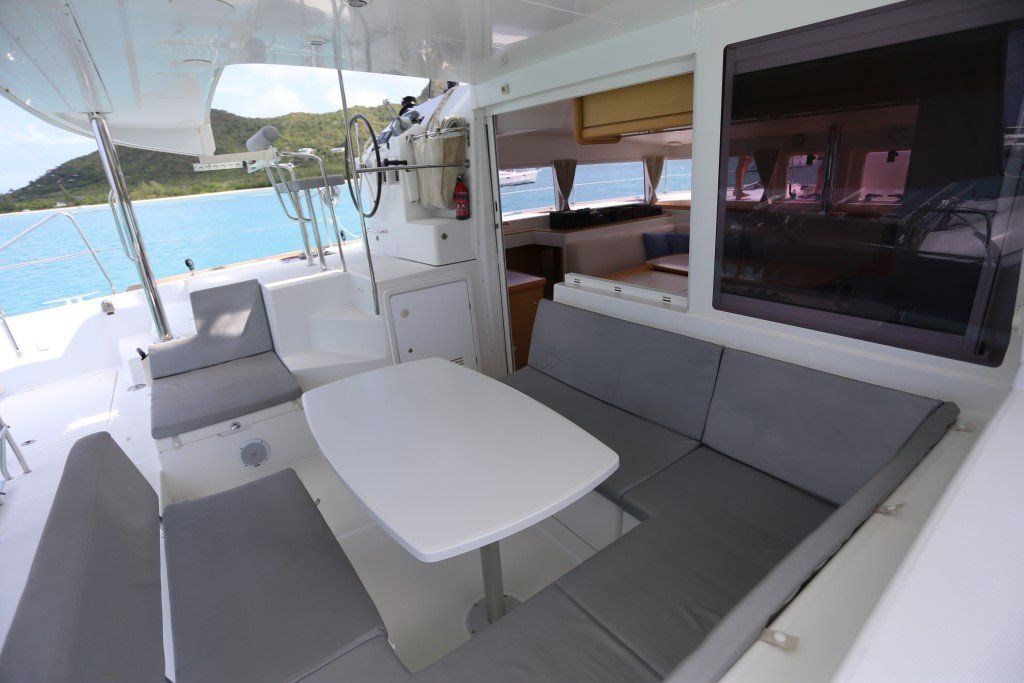

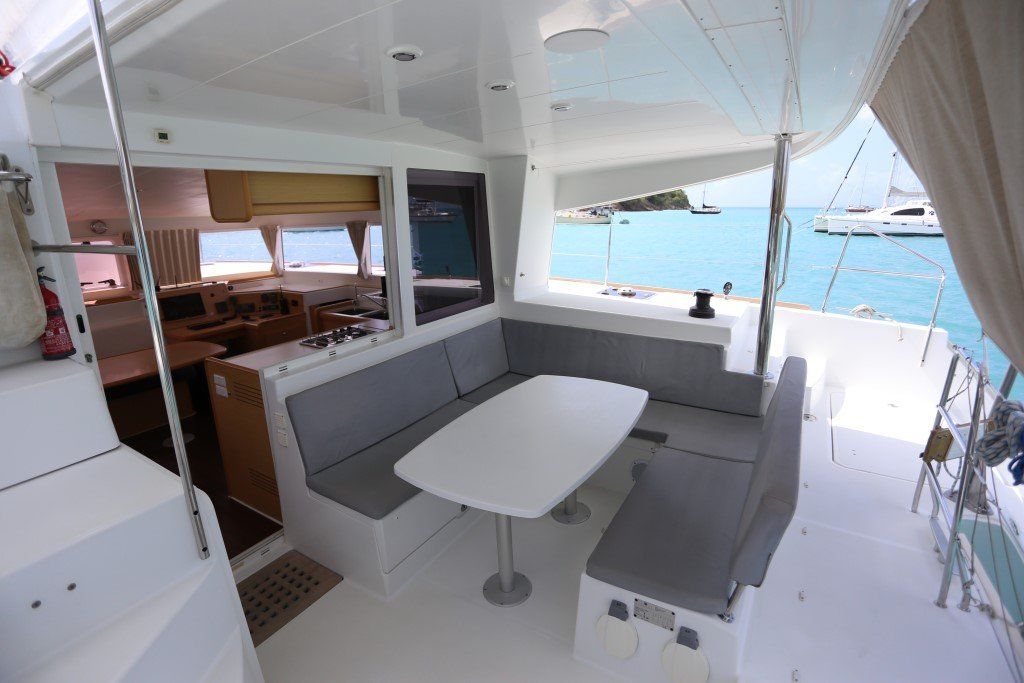

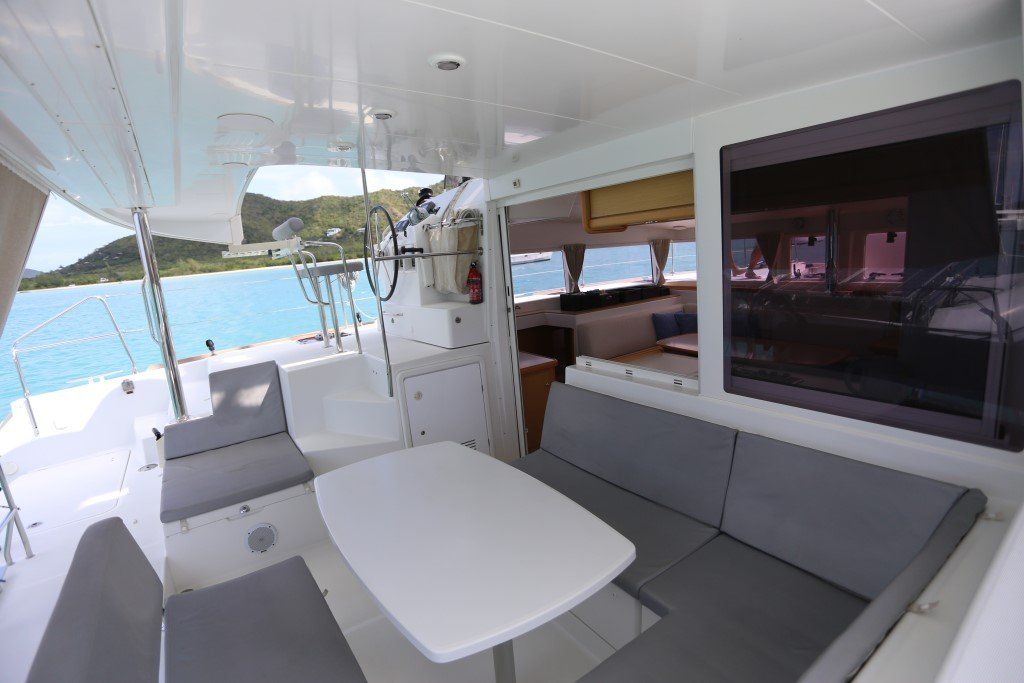

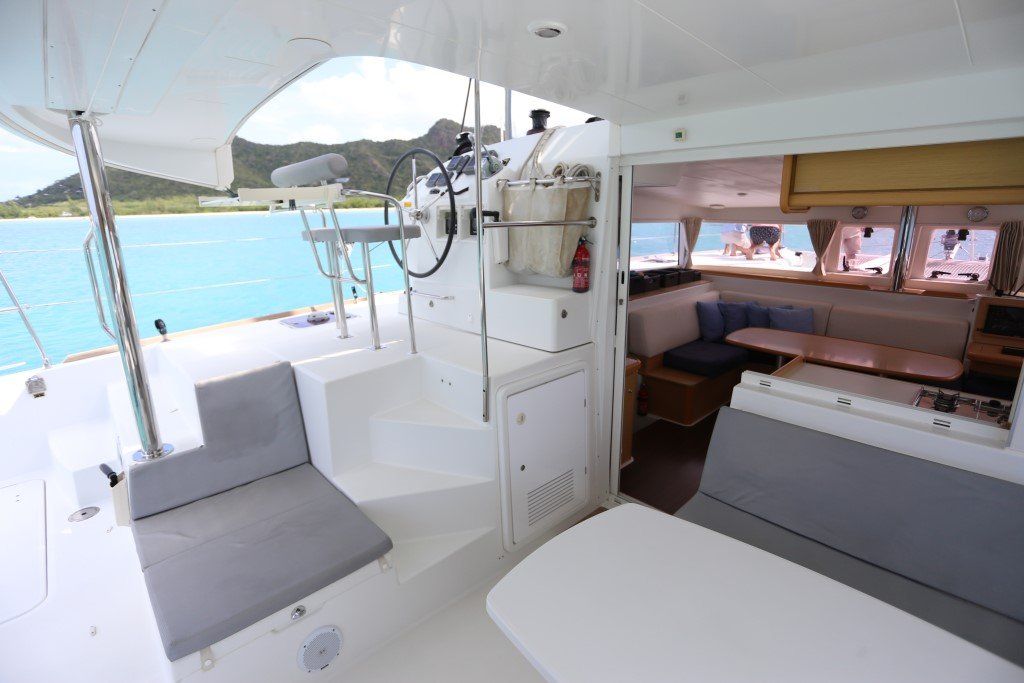

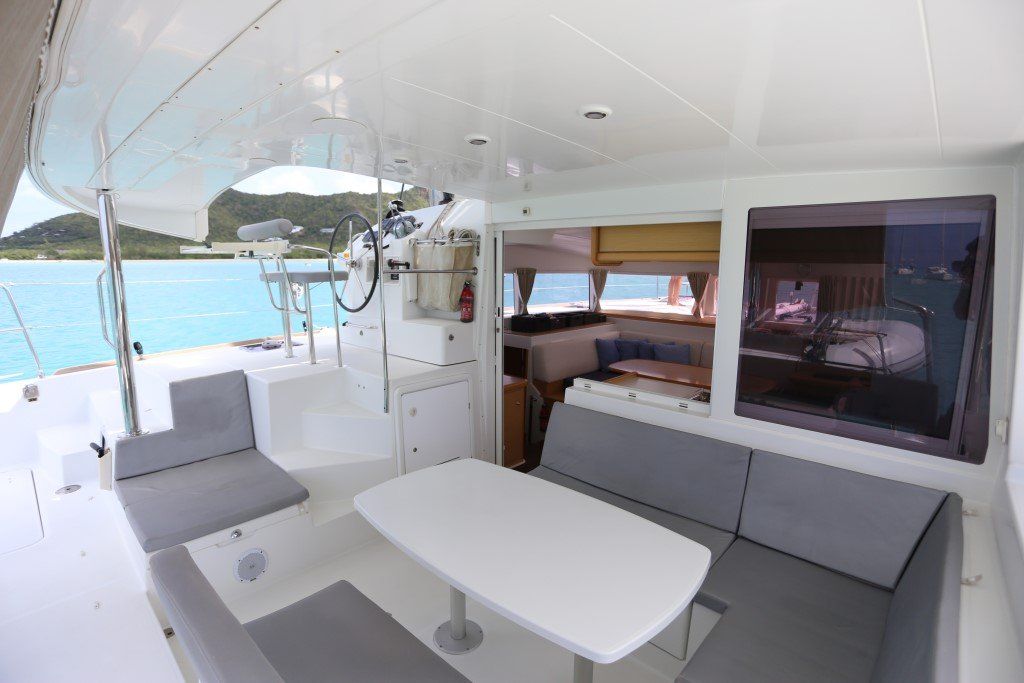

Cockpit

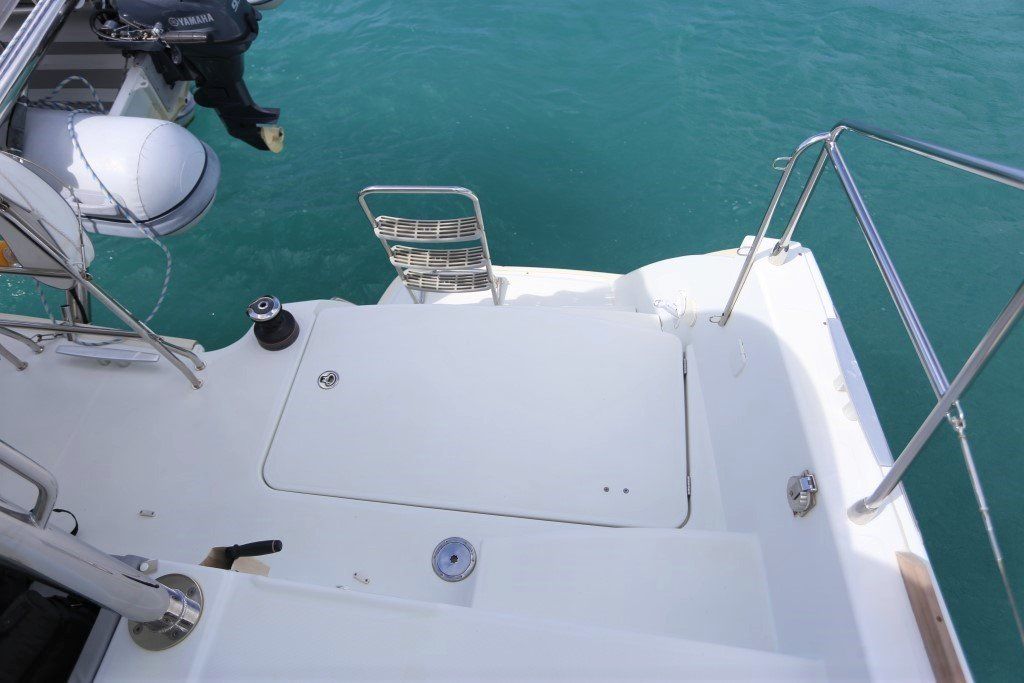

  • Cockpit usable as outdoor salon, access to the sea by a stern walkway giving access to the transoms
  • Hard top bimini with 3 recessed spotlights
  • Self bailing cockpit

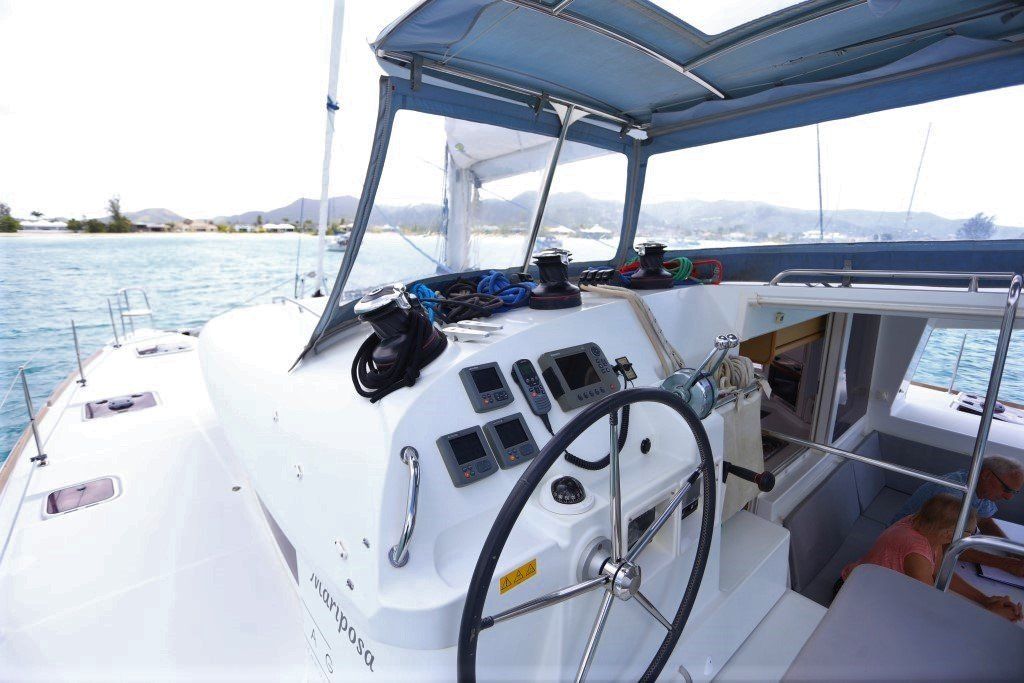

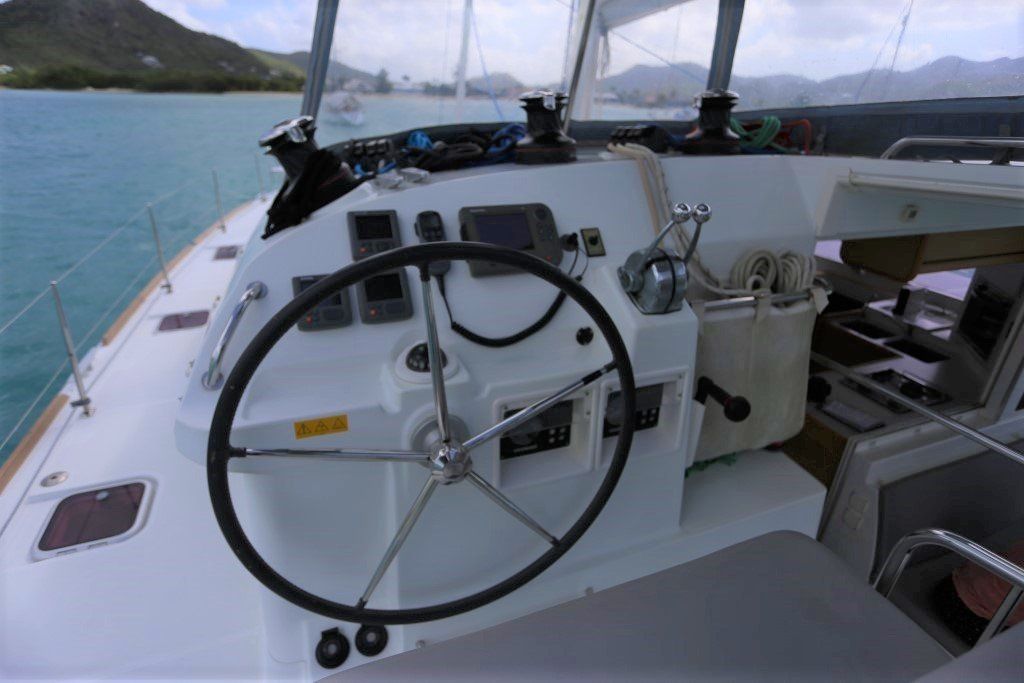

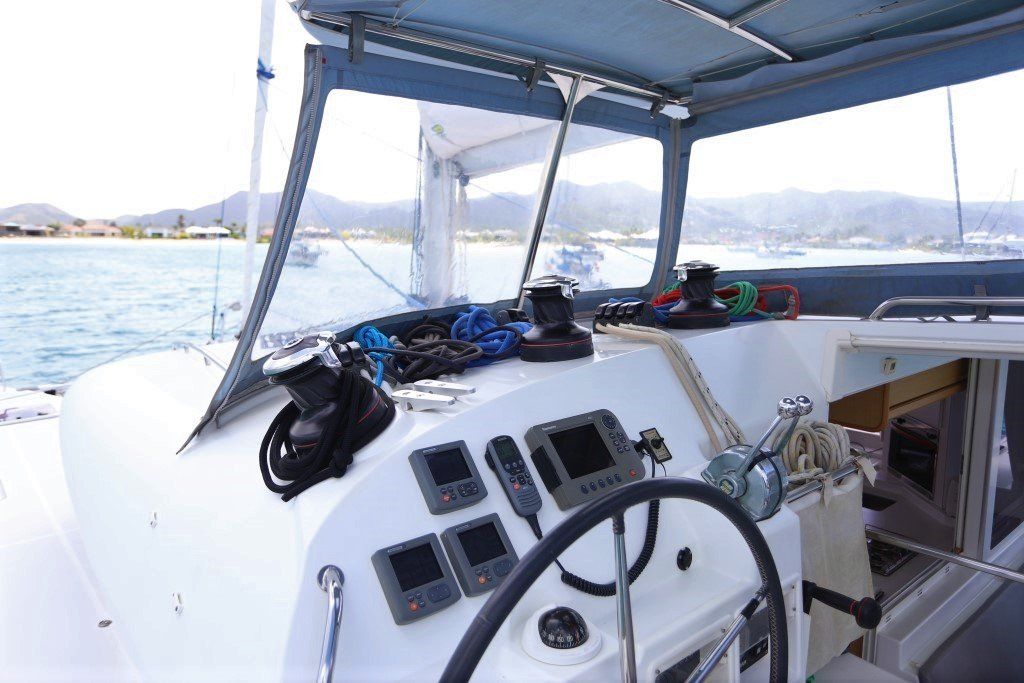

  • Helm station on port side on the coachouse bulkhead: engine throttle controls, engine control panels, compass, area for electronic equipment, leather covered steering wheel with brake, double helm seat with cushions, access steps from cockpit with s/s handrail, line storage bag.

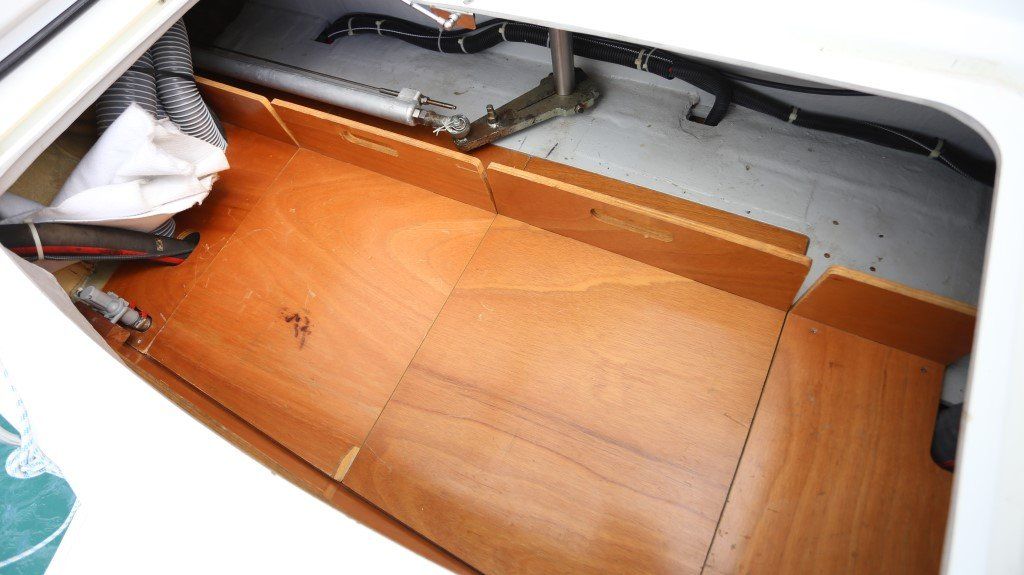

  • Steering system: cable steering, s/s shaft rudders, emergency tiller
  • U shape seating area to starboard
  • Varnished wooden cockpit table interchangeable with salon coffee table

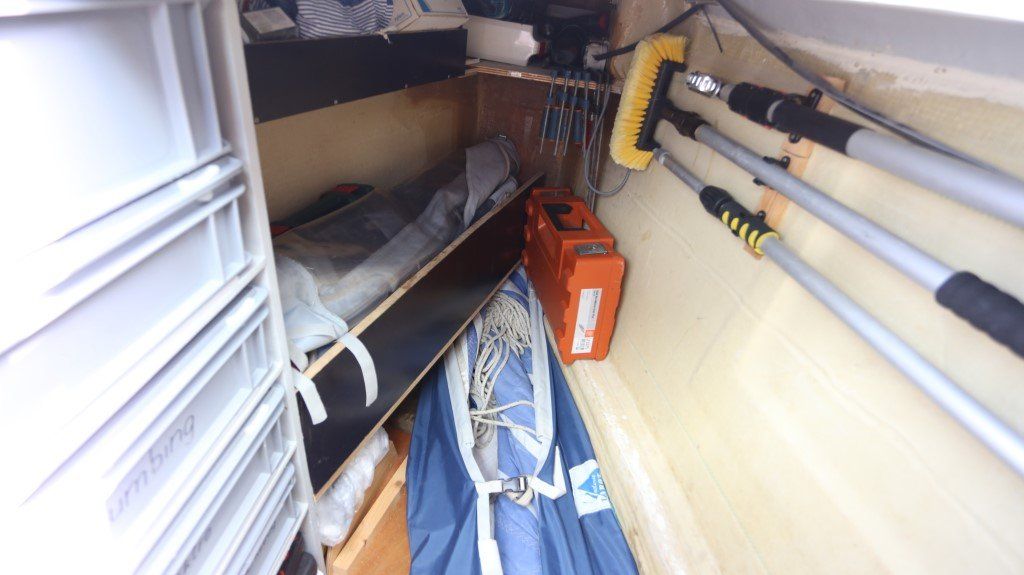

  • 1 aft cockpit seat locker
  • 1 technical locker

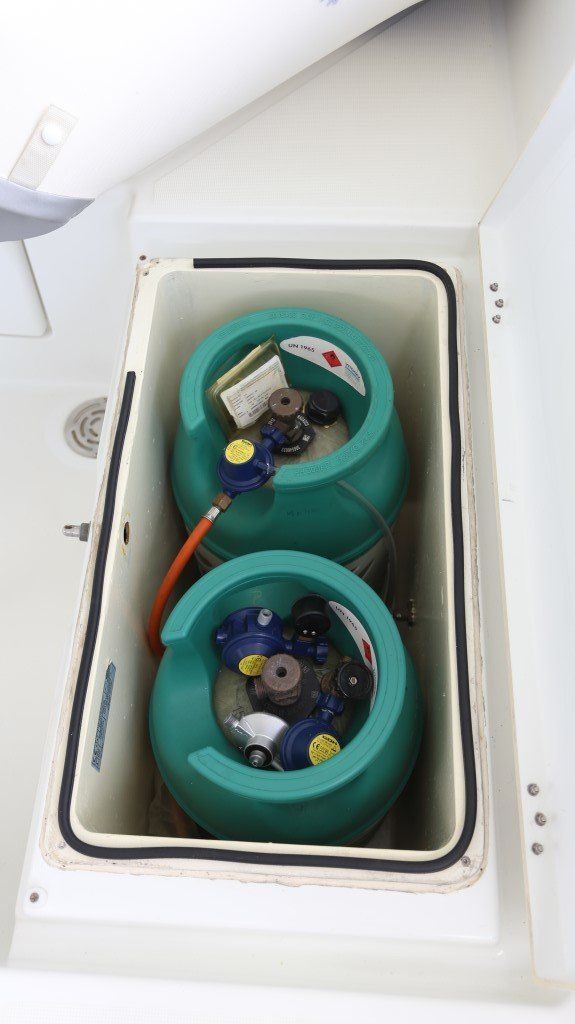

  • 1 gas locker under the seats on starboard side of cockpit Amended to fit 2 x10lt composite gas bottles.
  • 1 locker under the lazy boy in cockpit with room to store 1 additional gas tank
Accommodations

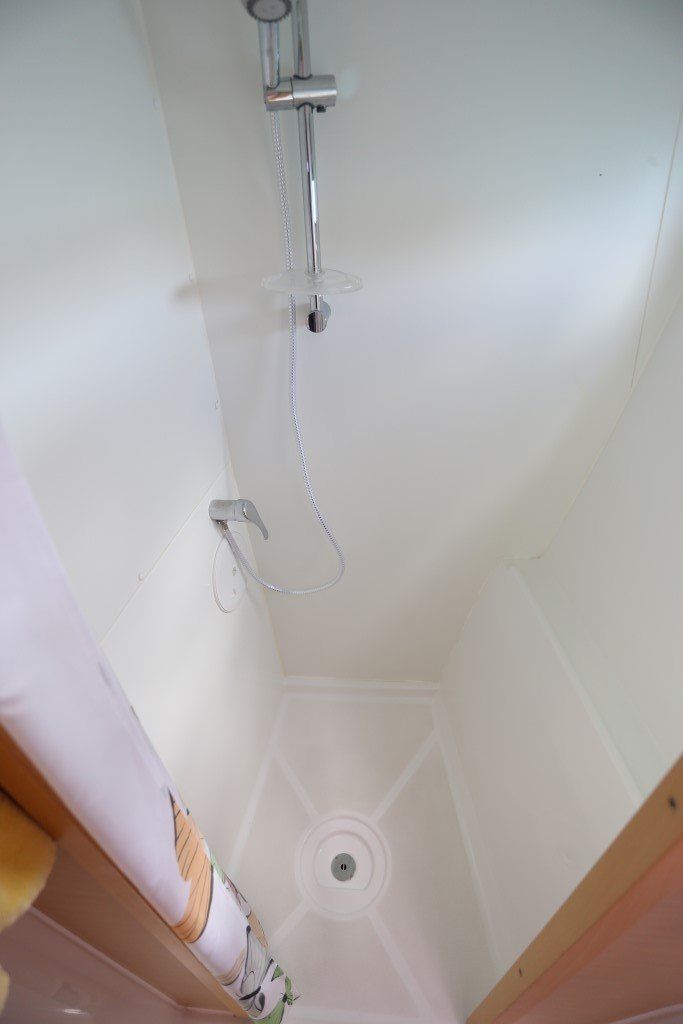

OWNER: 3 cabins, 2 toilets, 2 separate shower stall in owner’s washroom

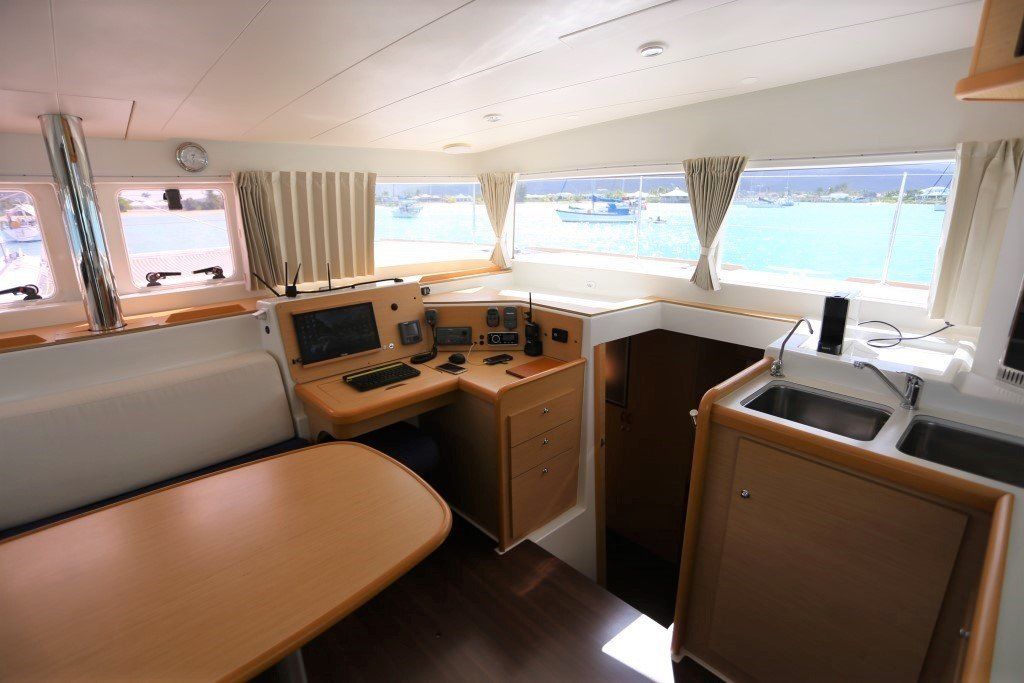

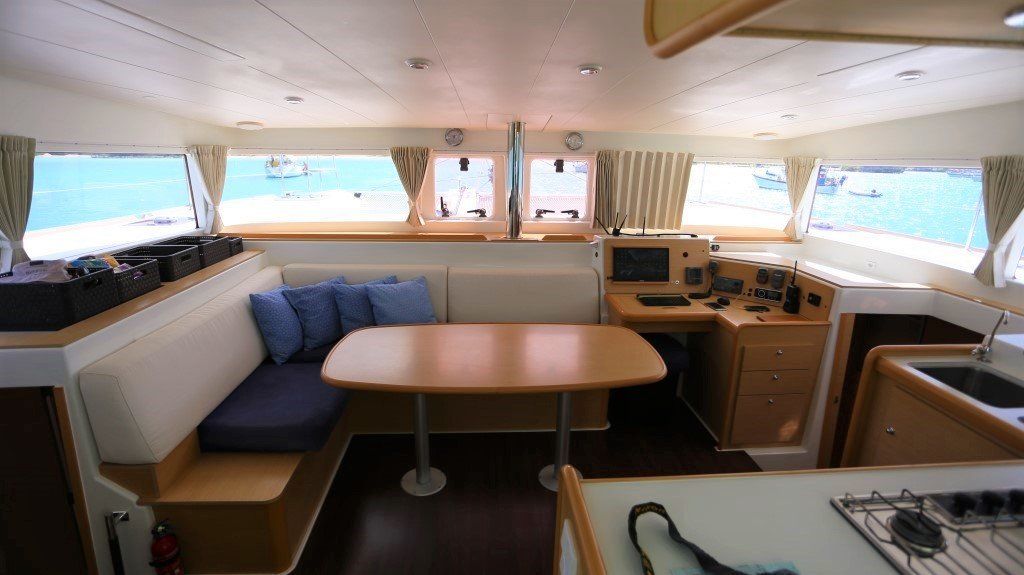

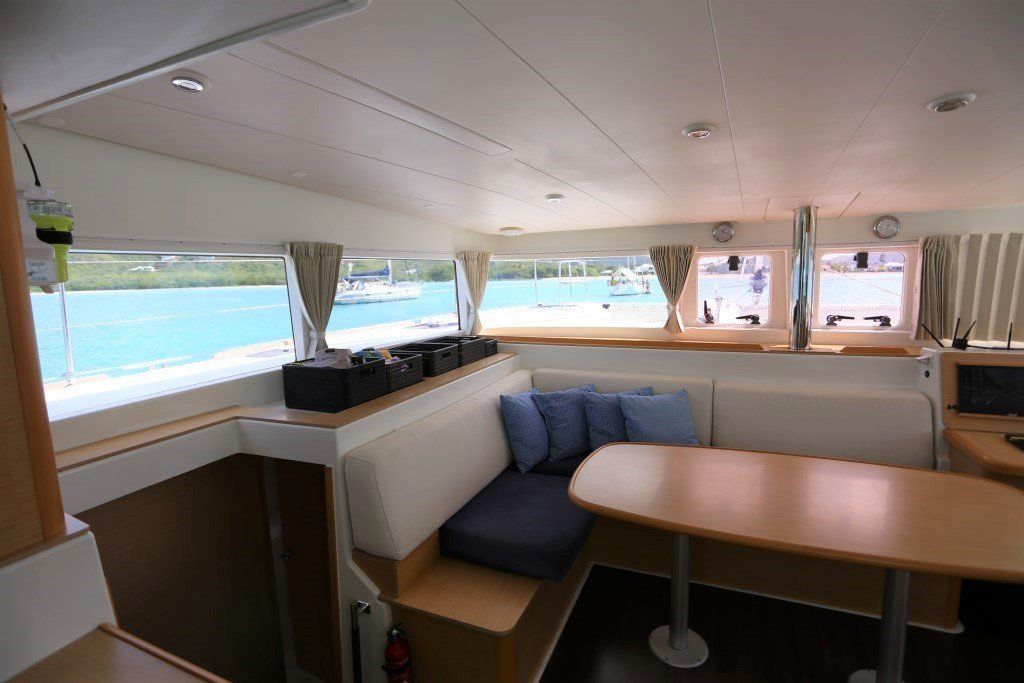

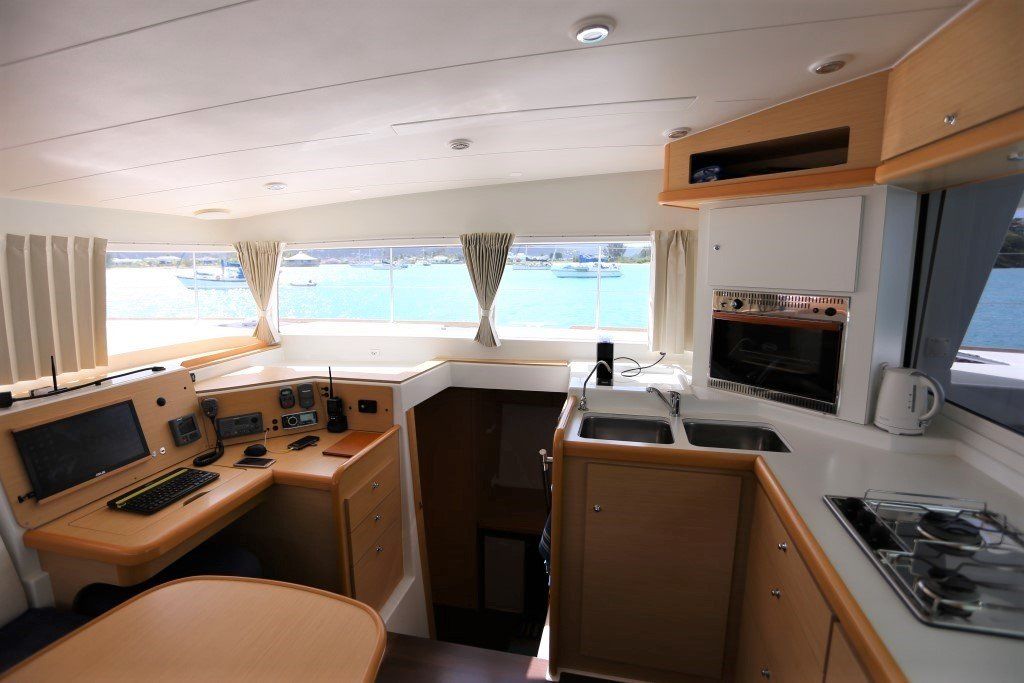

Salon
    • Large panoramic view salon with wide sliding door and lock
    • Standing headroom: 2.13m / 7’
    • 7 X 12V halogen salon overhead lights
    • Seating for 6 people
    • Large cockpit table. 1 set of tall aluminum legs and 1 set of short aluminum legs.
    • 4 storage compartments under settee
    • 2 opening hatches in forward vertical coachouse windows

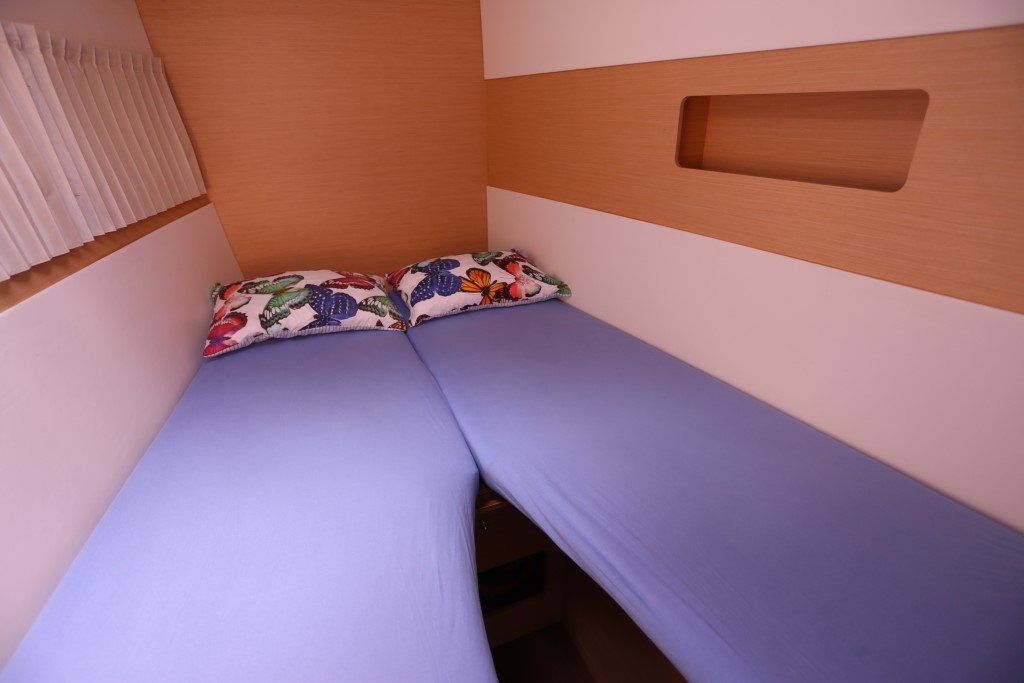

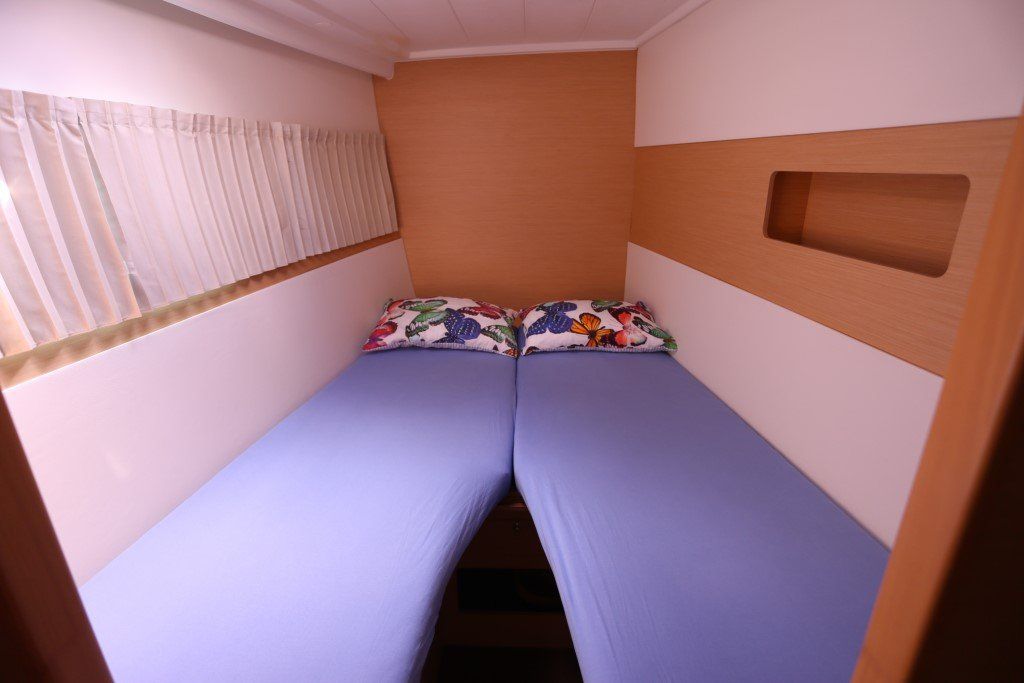

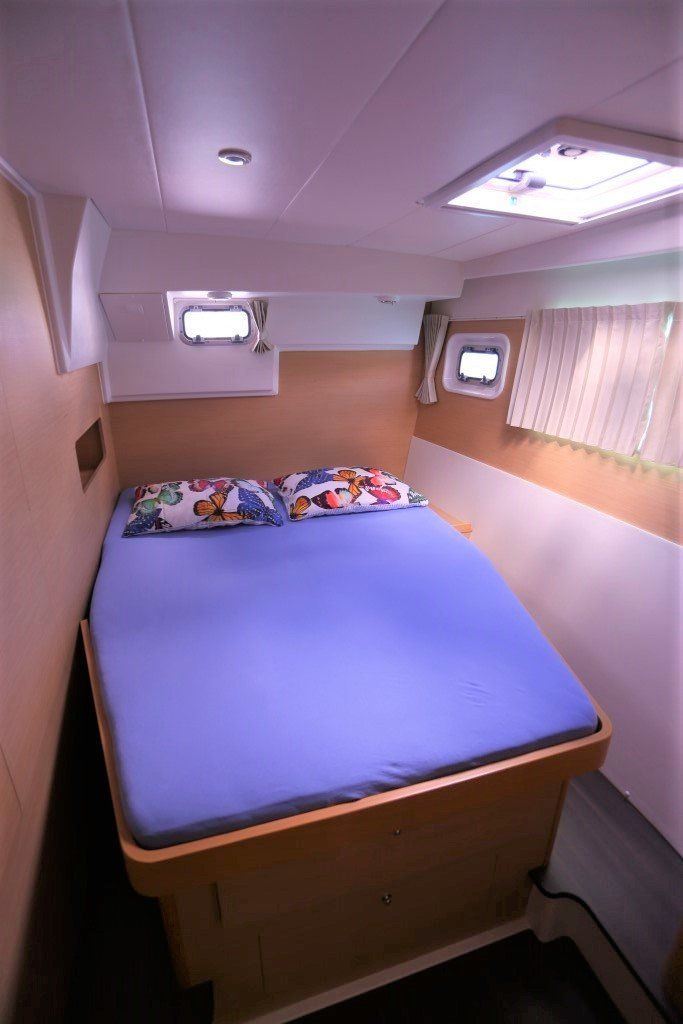

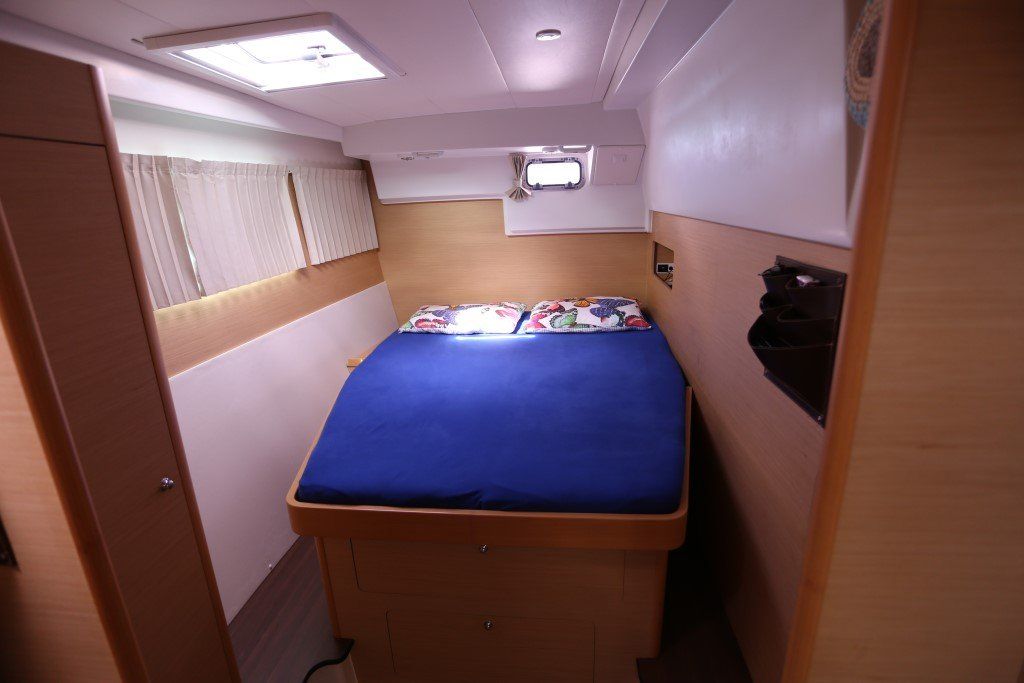

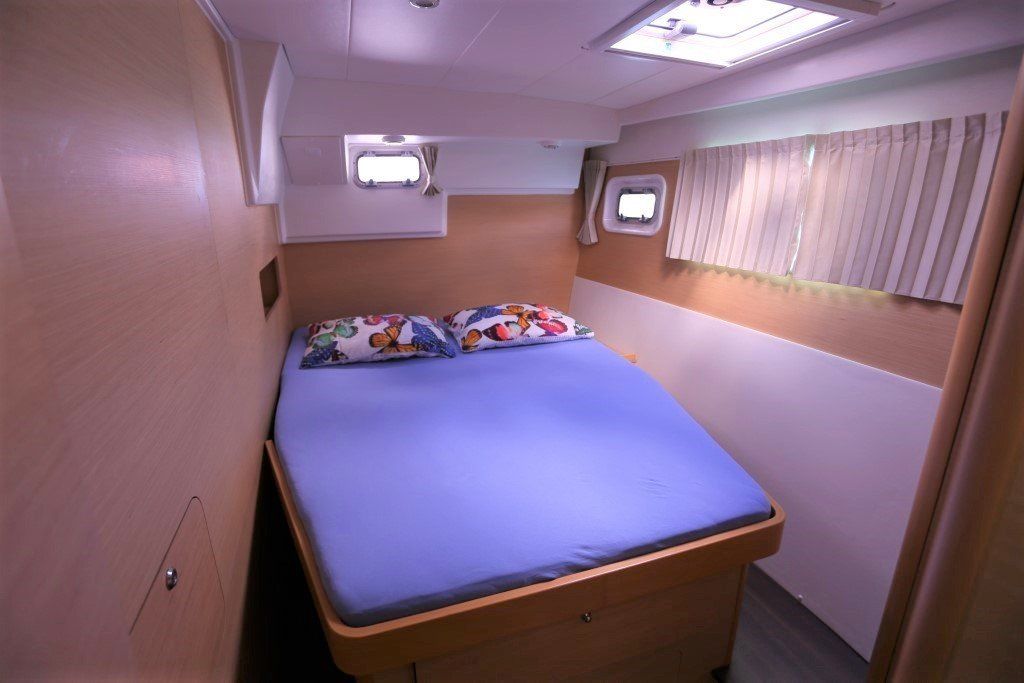

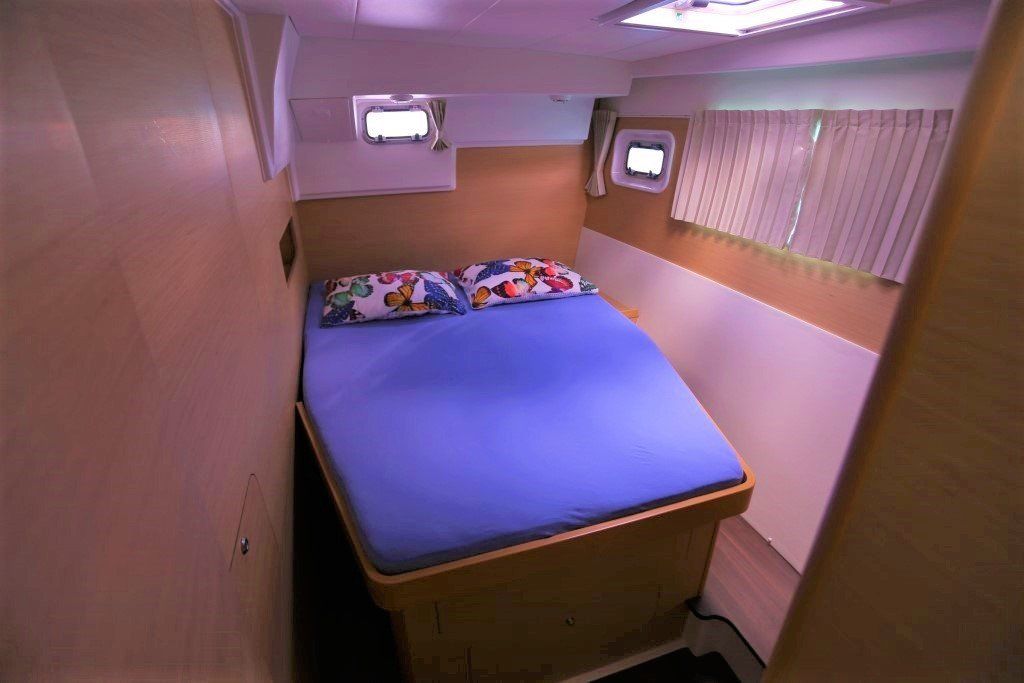

Forward port Cabin
    • Entrance from port gangway
    • Standing headroom: 2.08m / 6’ 10”
    • 2X 12V halogen overhead lighting
    • 2X 12V halogen reading lights on the ceiling
    • Double bed convertible in 2 single beds
    • Double bed: 2.06m X 1.76 m x 1.16m / 6’ 9” X 5’9’’ x 3’10’’ approx.
    • 2 single beds: 2.06m X 0.69 m x 0.58m / 6’ 9” X 2’3’’ x 1’11’’ approx.
    • 1 drawer and 2 lockers on front of bed
    • Storage under the bed
    • Night stands with storage on both sides of bed
    • 1 hanging locker
    • 1 opening deck hatch with blind
    • 1 opening port hull with curtain
    • 1 large one-way fixed window with curtain
    • 1 double USB port in all cabins

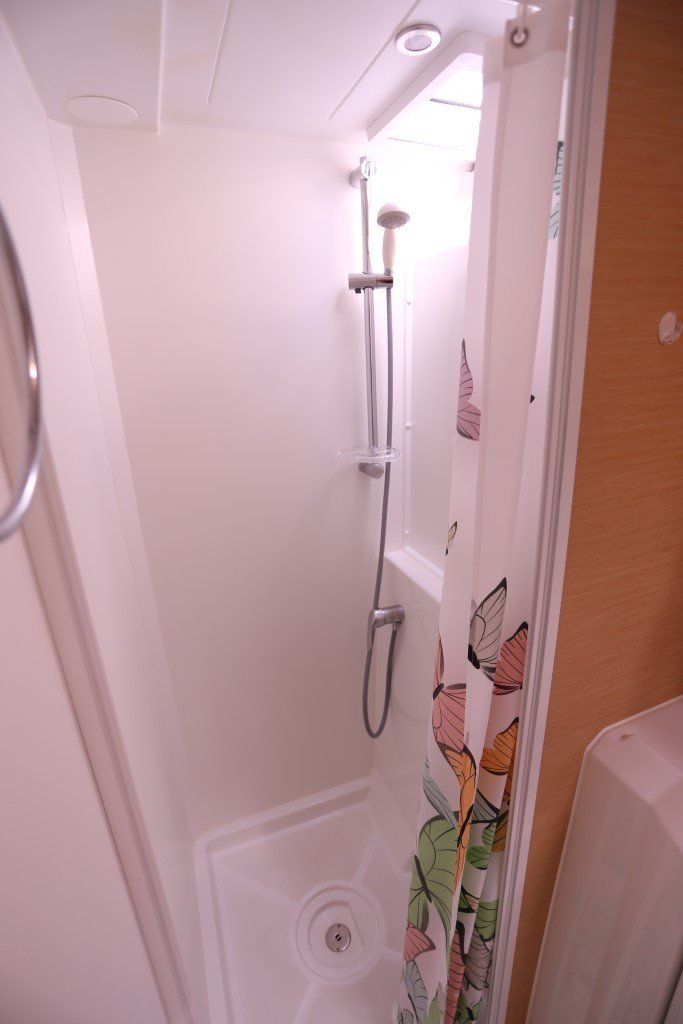

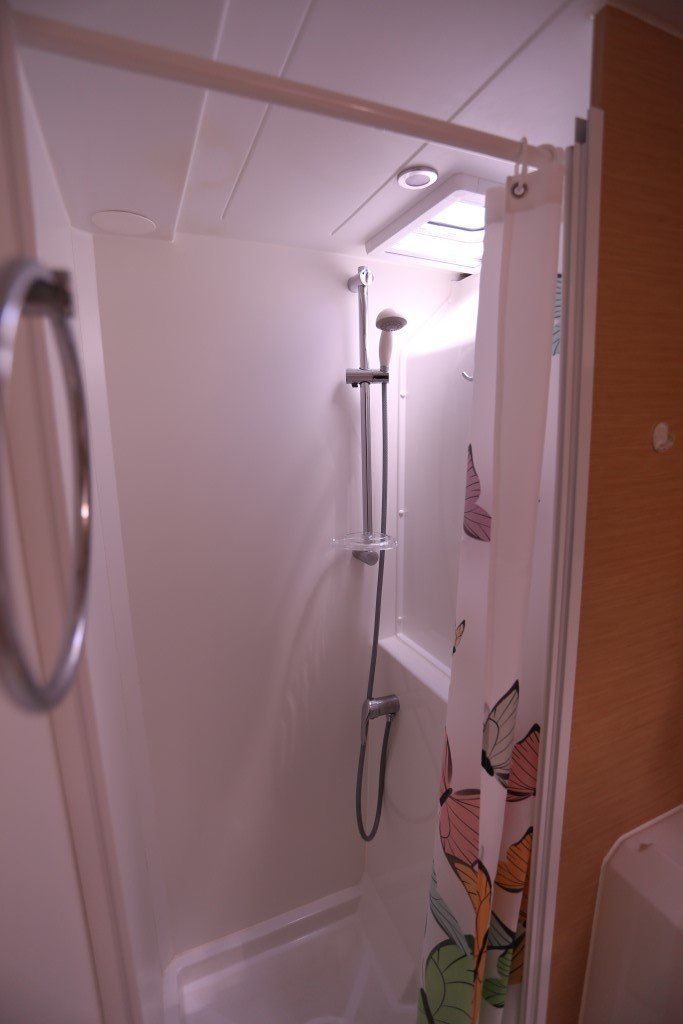

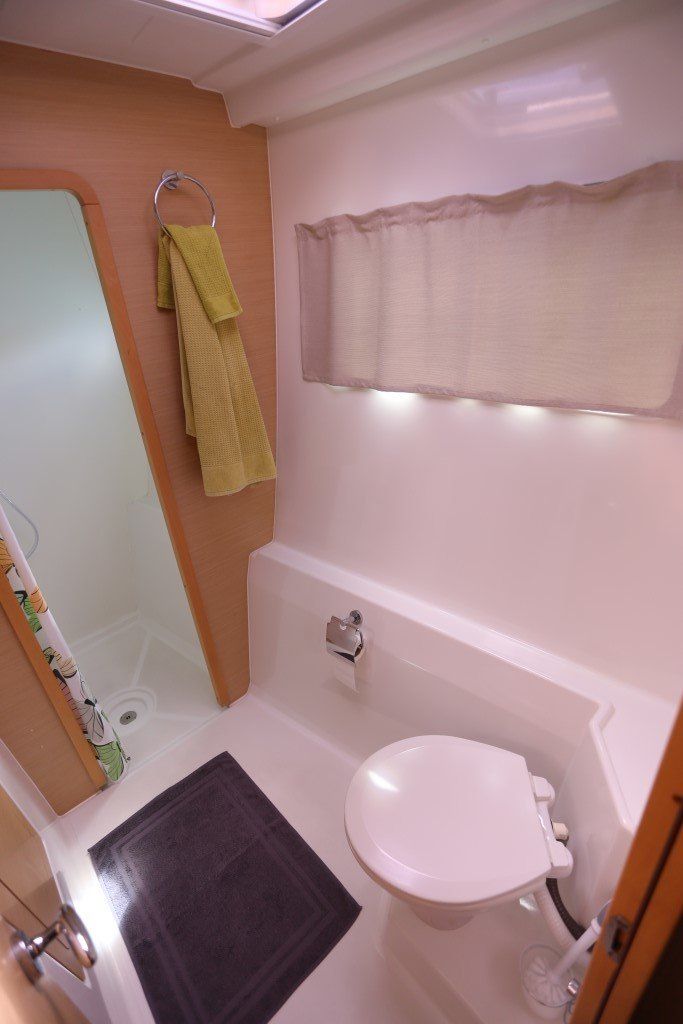

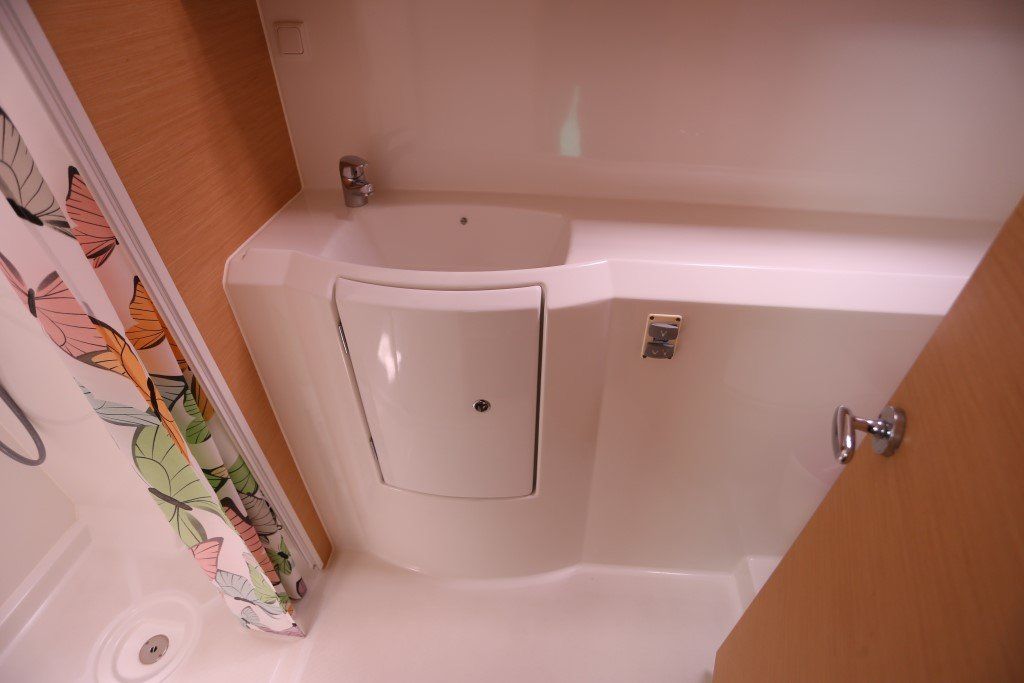

Port head
    • Access from forward port cabin door
    • 2X 12 V halogen overhead lighting and 1 x 220 volt socket in each head
    • Standing headroom: approx 2.00m/ 6’7”
    • Large manual marine head (cabinet for optional holding tank with gravity drain/ and deck pump out)

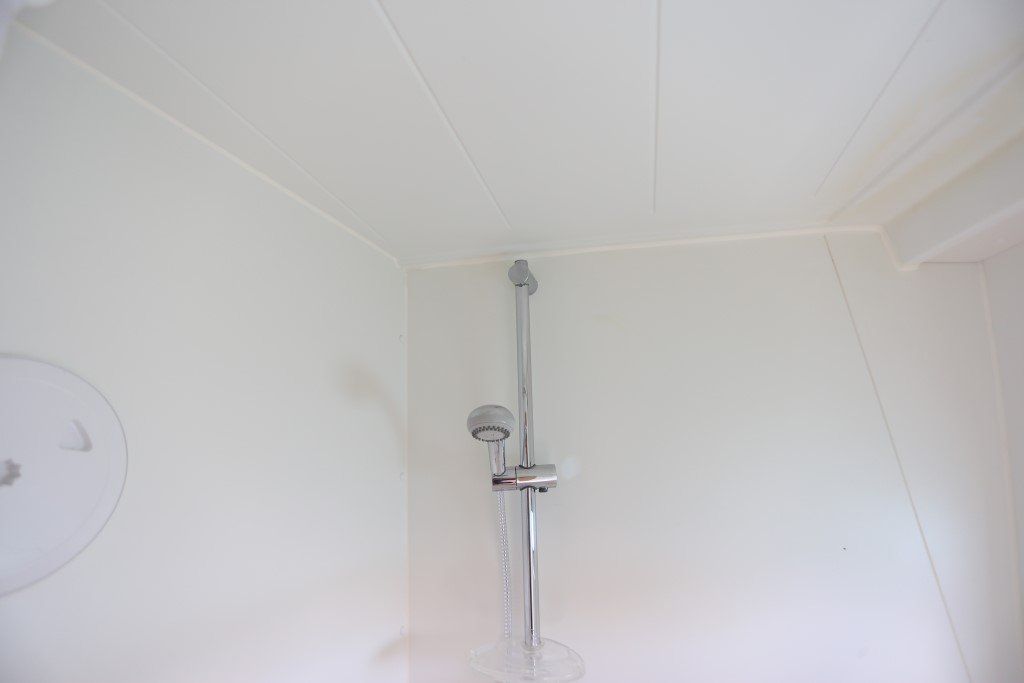

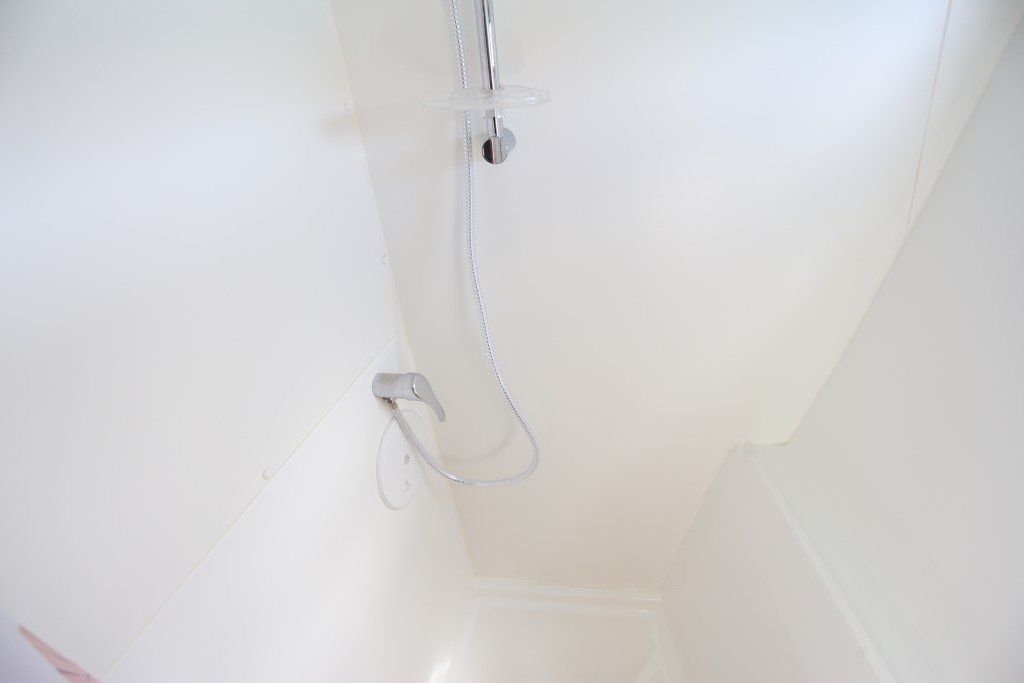

    • Fibreglass washbasin with hot/cold mixer tap,
    • Shower sump pump with float switch
    • 1 opening deck hatch with blind
    • 1 cabinet with 2 mirrors and shelves

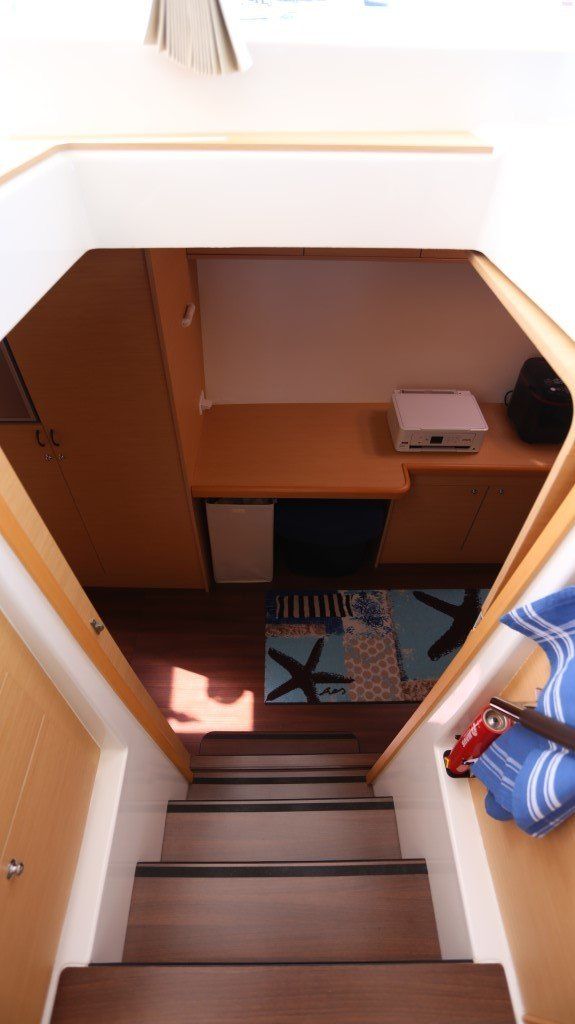

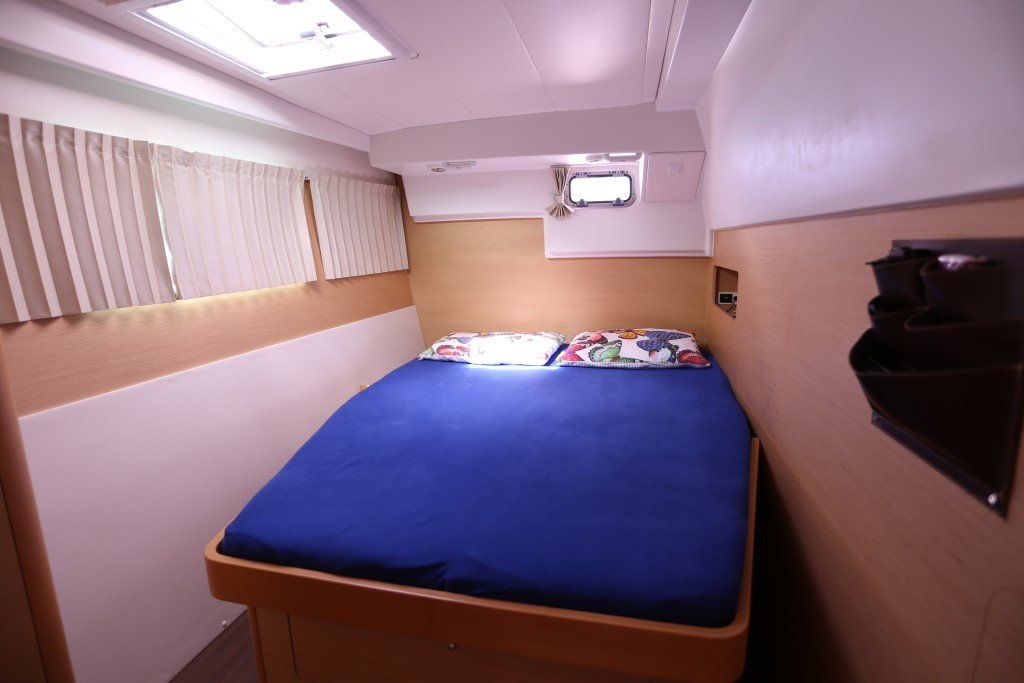

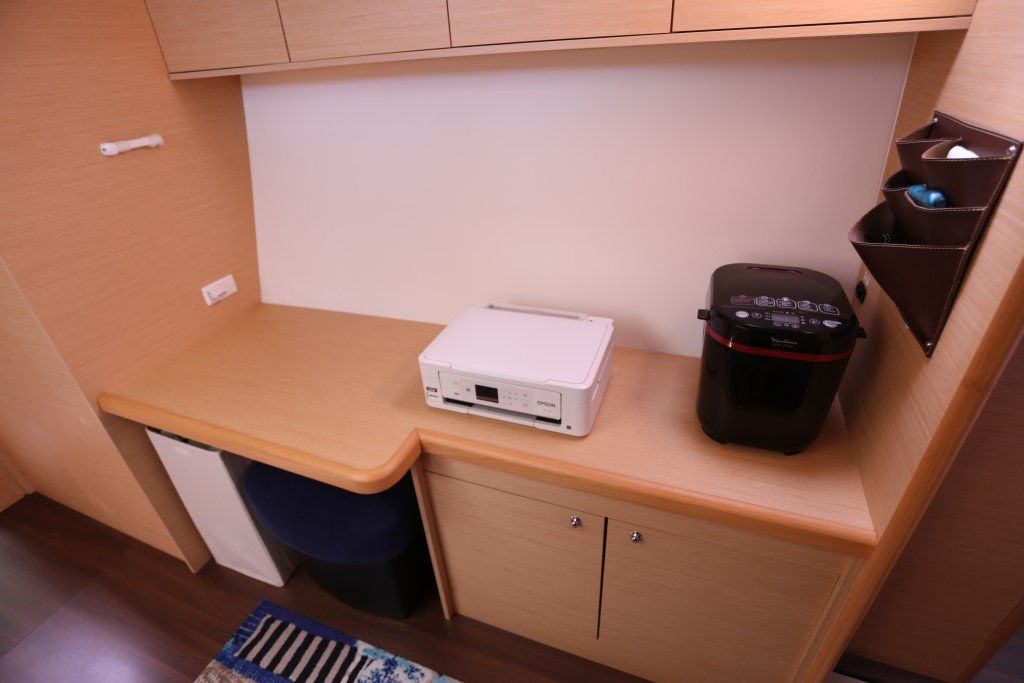

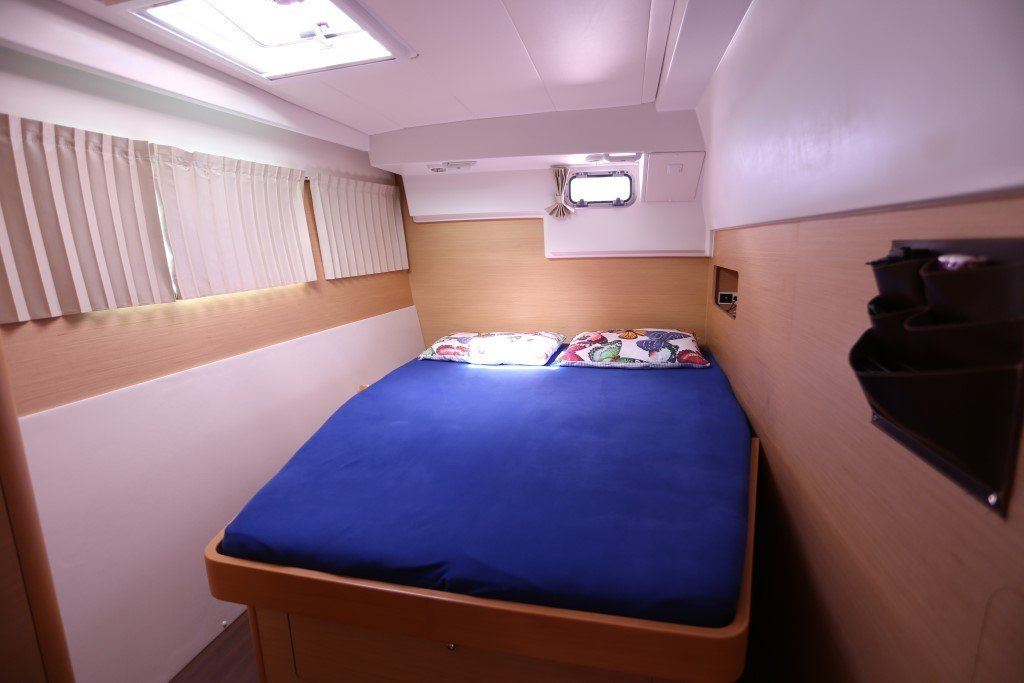

Owner’s version
    • Owner’s cabin to starboard (hull entirely dedicated to owner)
    • Entrance from salon through sliding door
    • Standing headroom: 1.98m / 6’ 6” approx.
    • 6X 12V overhead lighting
    • 2X 12V reading lights on the ceiling
    • 1 double USB port in all cabins
    • “Semi – island” type bed with front and side access 2.00m X 1.44 x 1.00 m / 6’ 7” X 4’9”x 3’3’’
    • 1 drawer under the bed
    • Access to battery switches
    • Nightstands with storage on both sides of berth
    • 1 large one-way fixed window with curtain

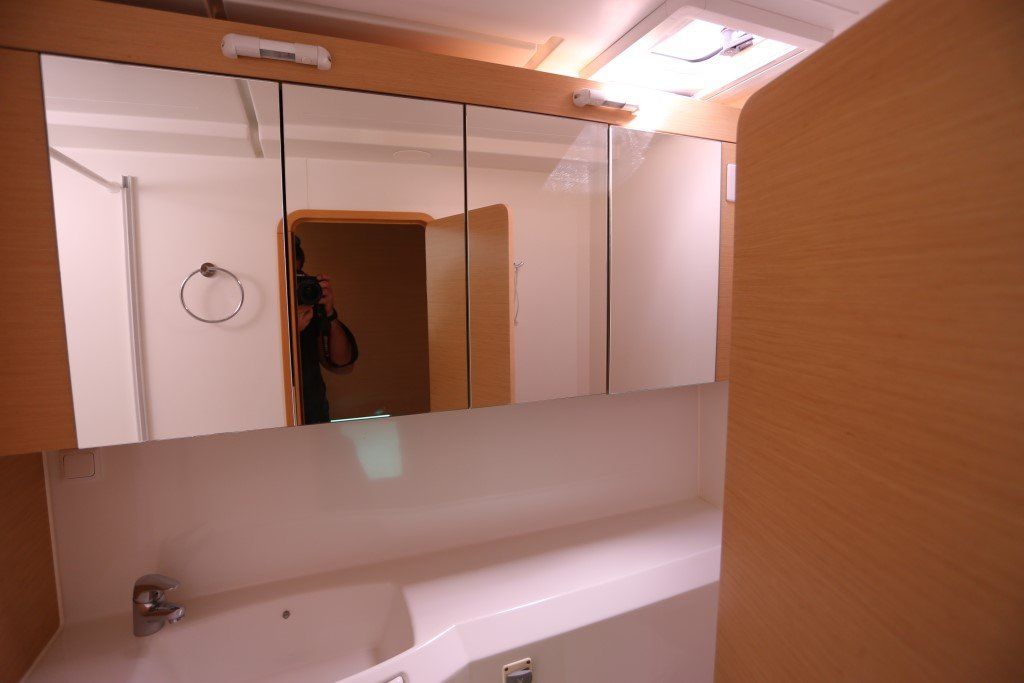

    • 1 cabinet with 4 doors and mirrors above the washbasin

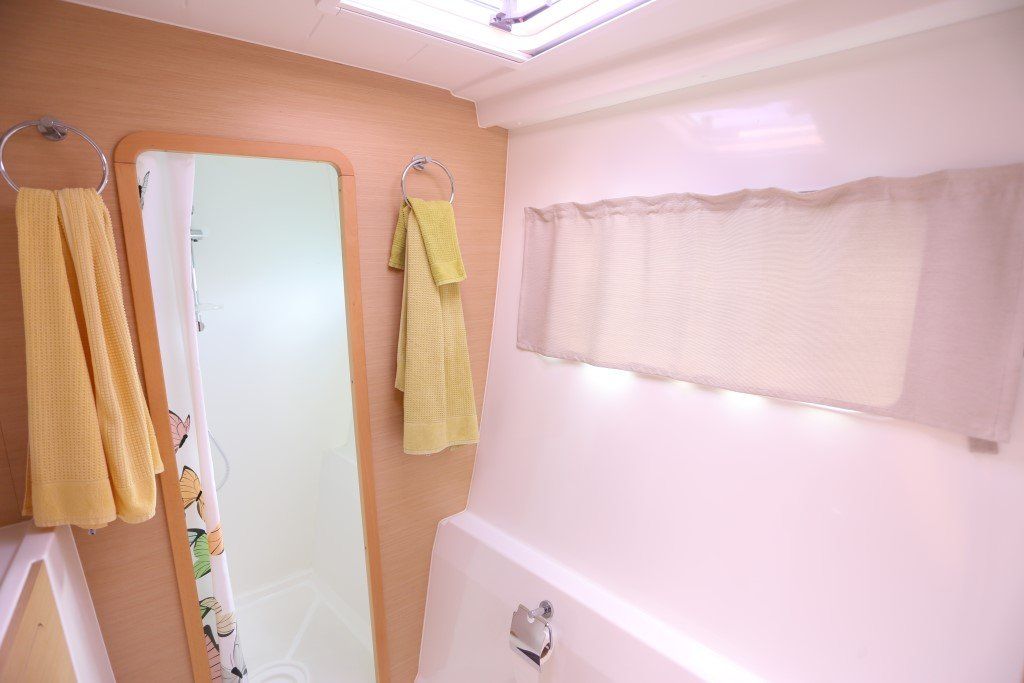

    • 1 light on the cabinetOwner’s head

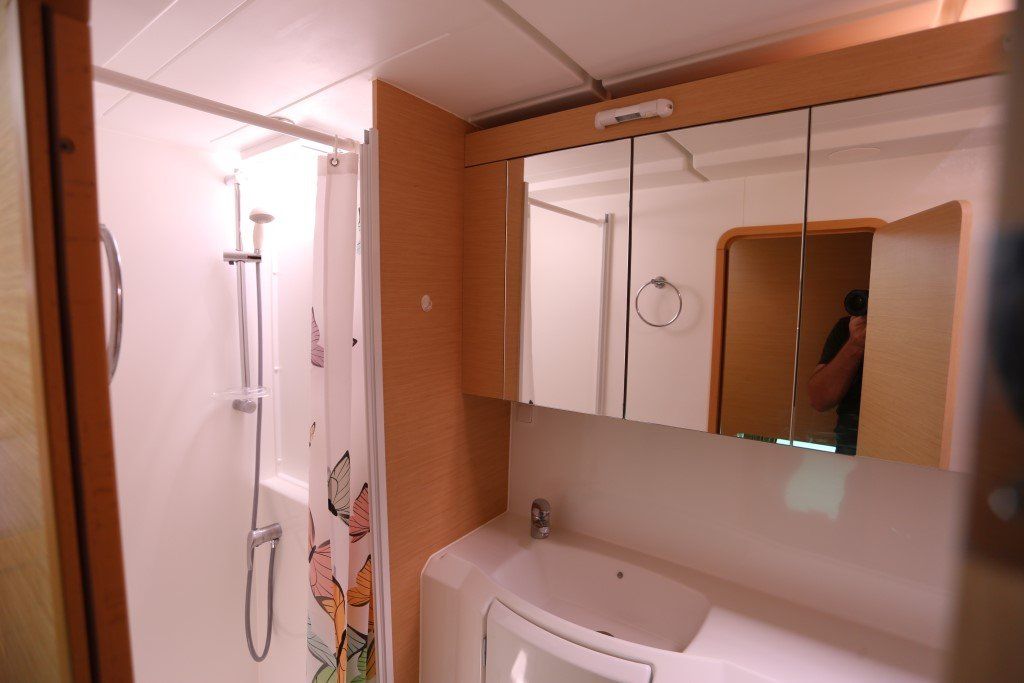

    • Access from owner’s cabin door
    • 3X 12 V overhead lighting
    • Standing headroom: approx 2.01 m or 6’ 7”
    • Large manual marine head (storage for option holding tank with gravity drain/deck pump out)

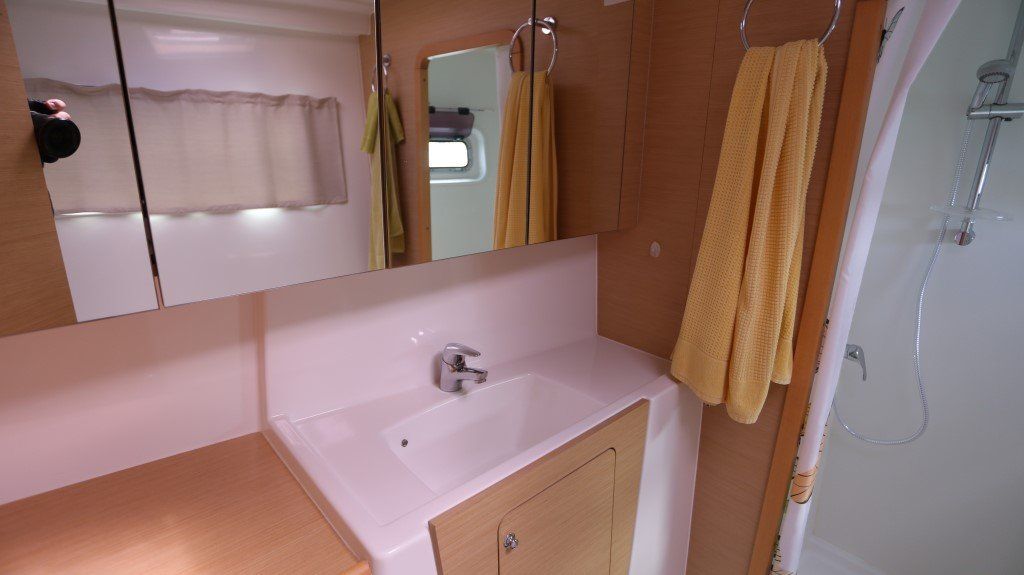

    • Fibreglass washbasin with hot/cold mixer tap
    • 1 low locker with shelves
    • 1 opening deck hatch

Mattress and upholstery
    • Cabins mattresses: marine mattress made of multi layer alveolar foam with several densities. Mattresses designed to improve comfort for a deeper sleep
    • (thickness: 120mm/5’’)
    • Mattresses treatment: anti microbial, anti bacterial, non allergenic, anti dust mite
    • Standard upholstery as indicated on Lagoon sample book
    • Synthetic fabrics adapted to marine environment:
    • Washable (40°C)
    • water repellent, with anti stain treatment
    • Fabric hull liner in cabins
    • Fibreglass ceilings in salon, in cabins and wash rooms
    • Curtains in cabins and on forward windows in salon

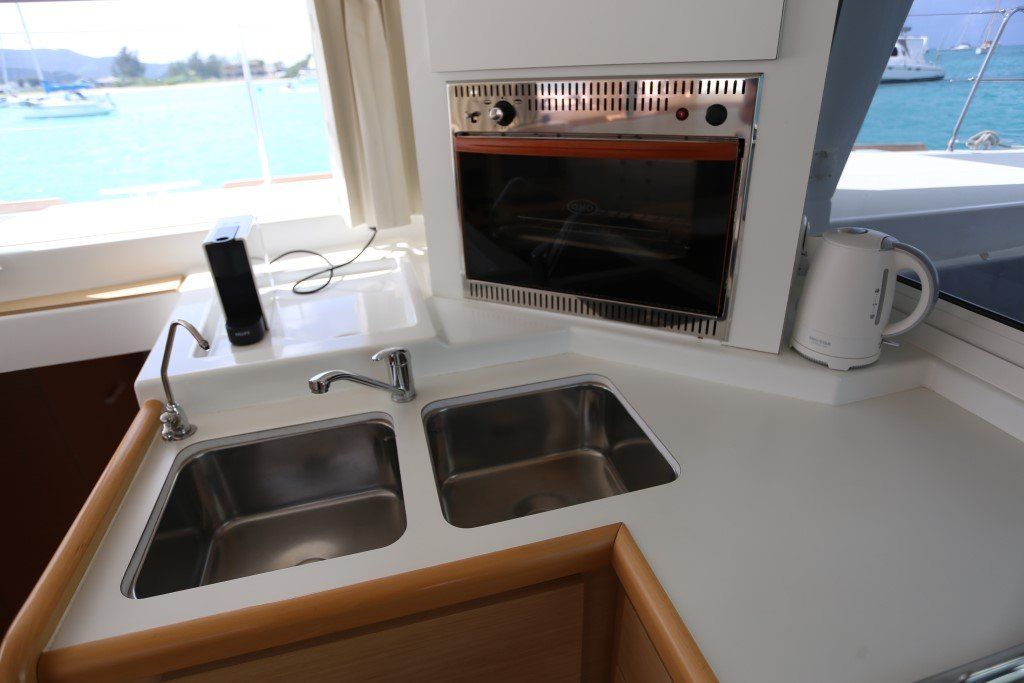

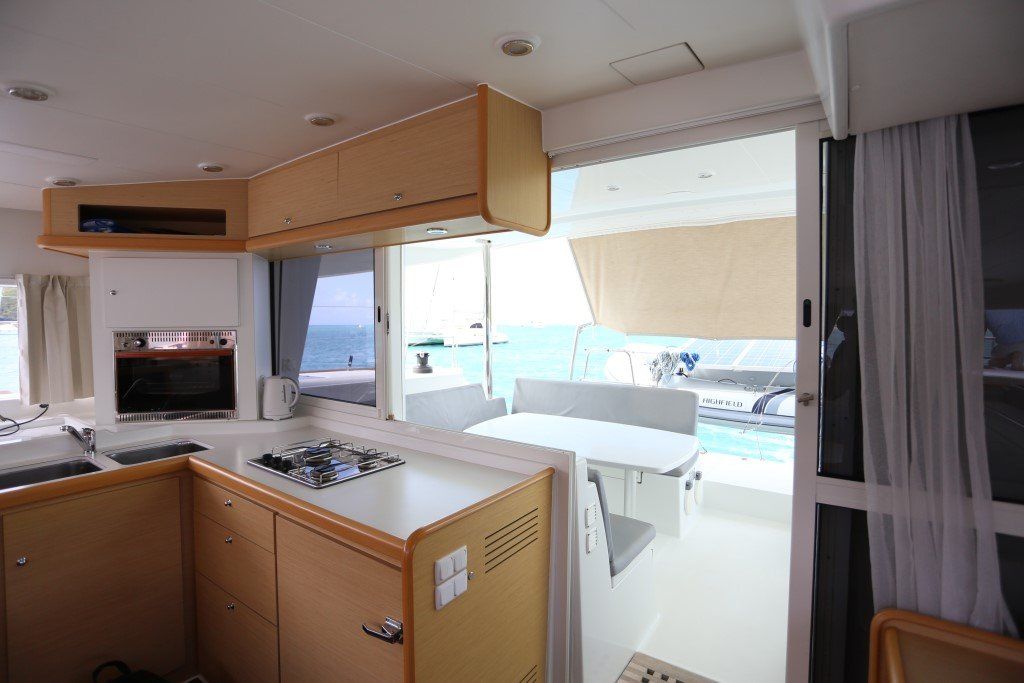

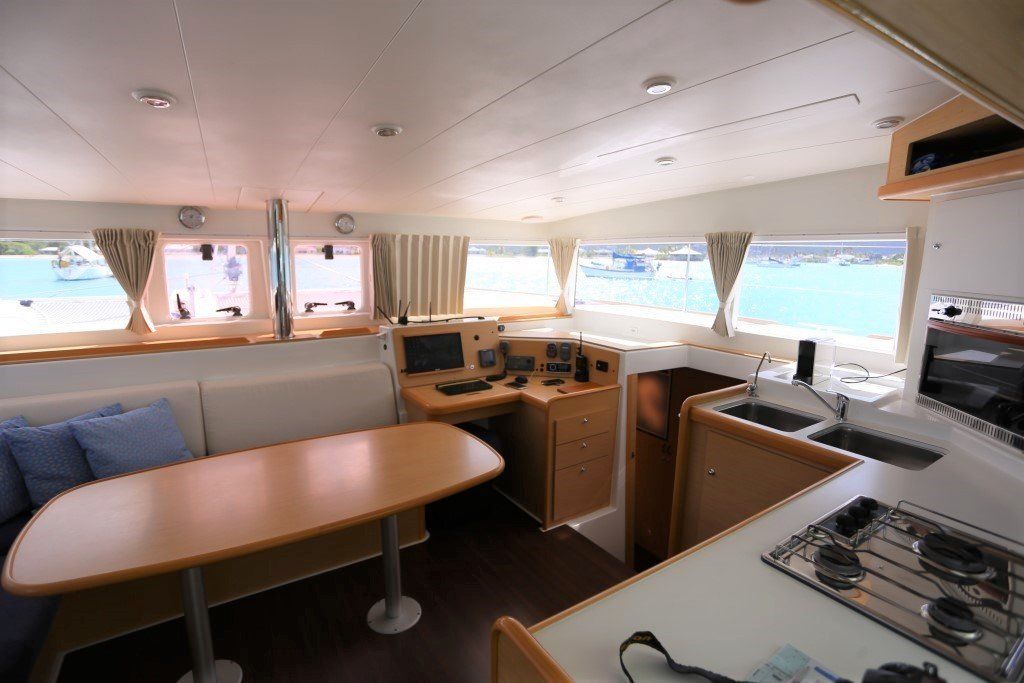

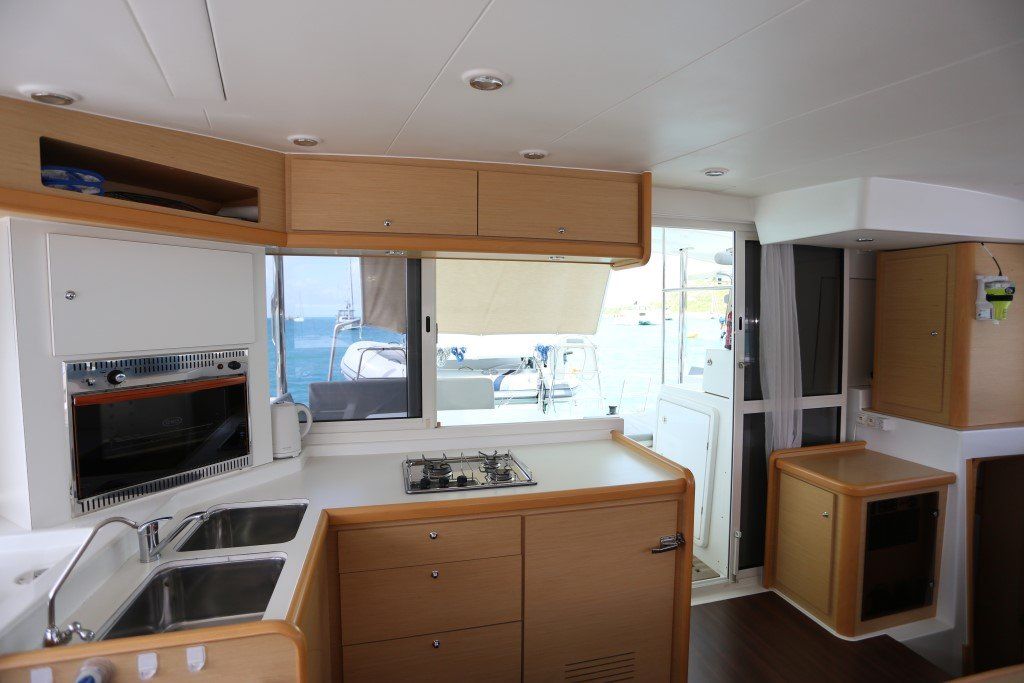

Galley
    • In salon, communicating directly with cockpit via a sliding glass window
    • Standing headroom: 2.09 m / 6’ 10”
    • 3 X 12V halogen overhead lights
    • White laminate countertop with wooden fiddles
    • Double S/S sink with hot and cold mixer tap
    • Drainer counter for dish drying

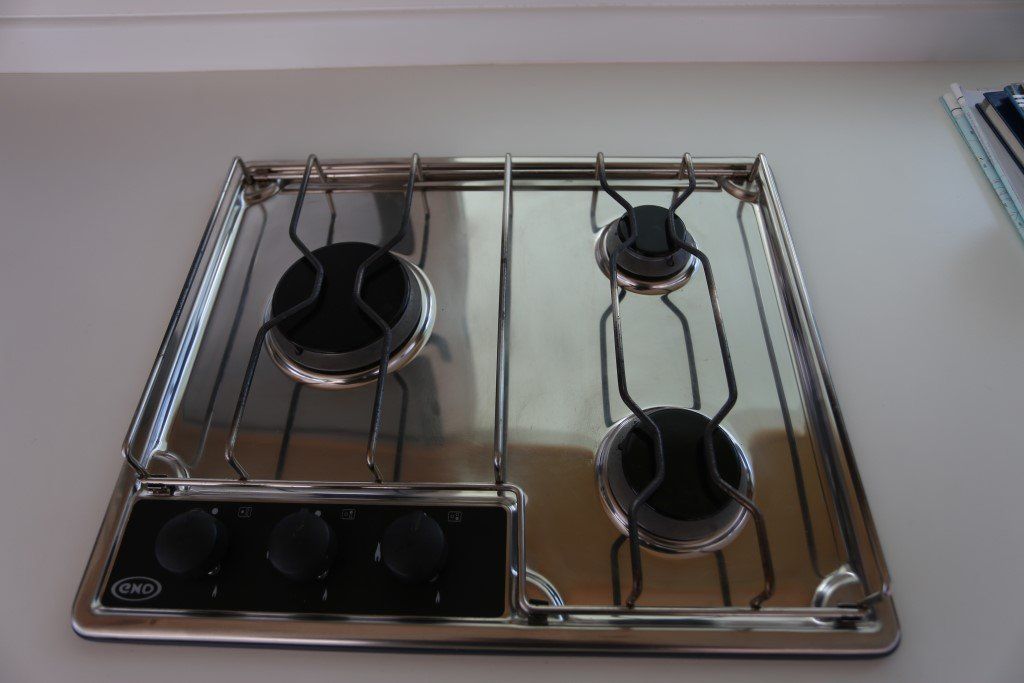

    • 3 burner gas stove
    • Separate oven with grill (enamelled interior)
    • 2 drawers
    • Cupboard under sink with waste bin behind door
    • Starboard galley column with separate enamelled butane oven / with broiler and cabinet for microwave oven (optional).
    • 1 x12V fridge 110 L / 29 US gal with front opening

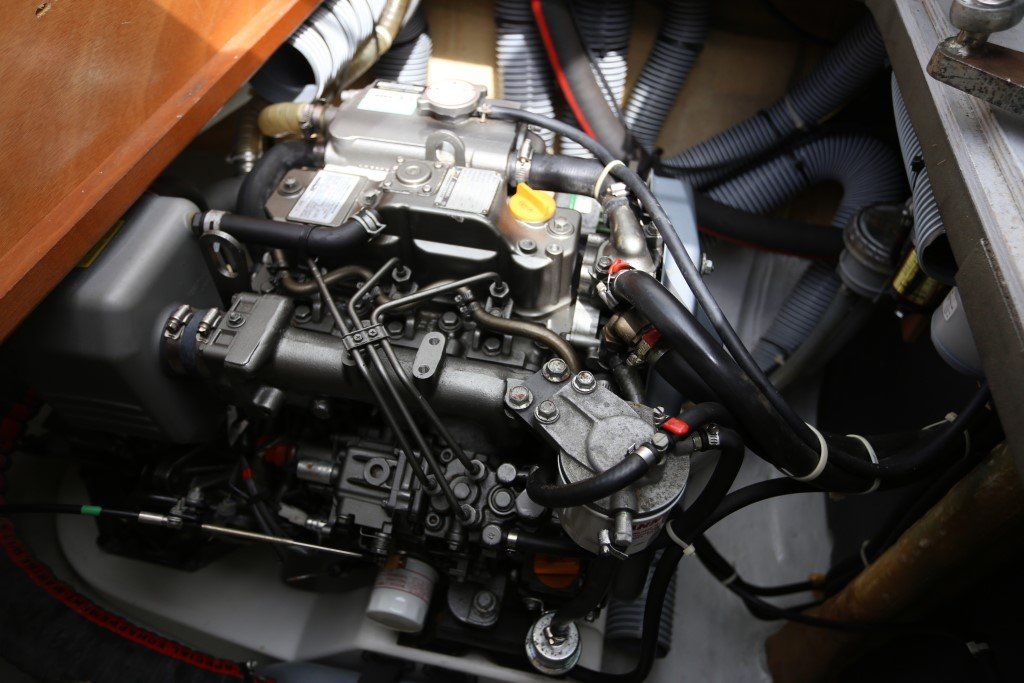

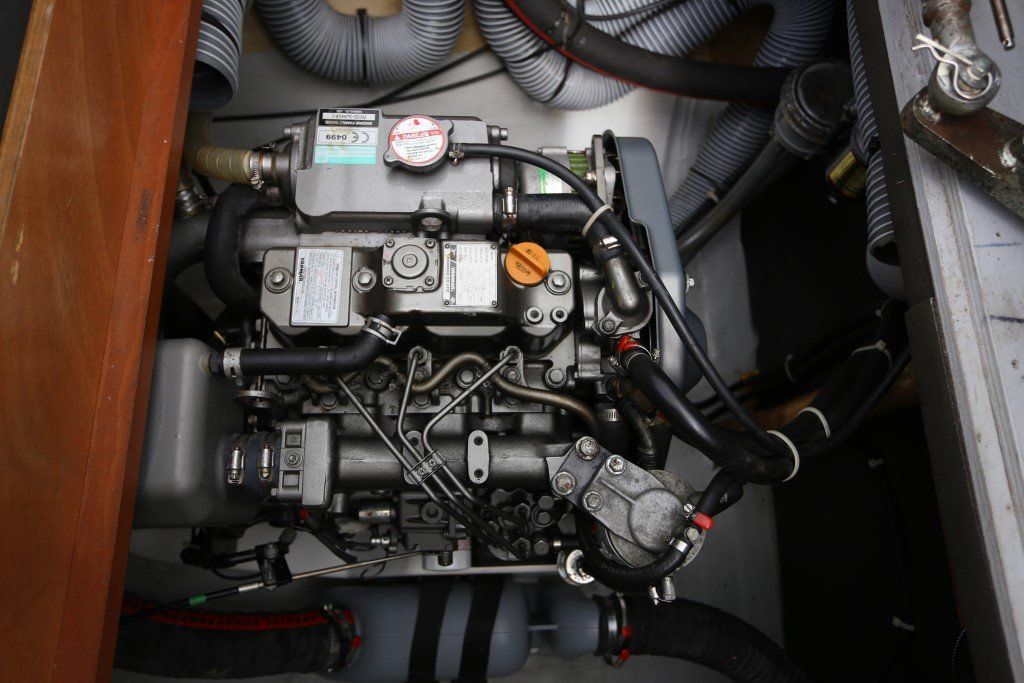

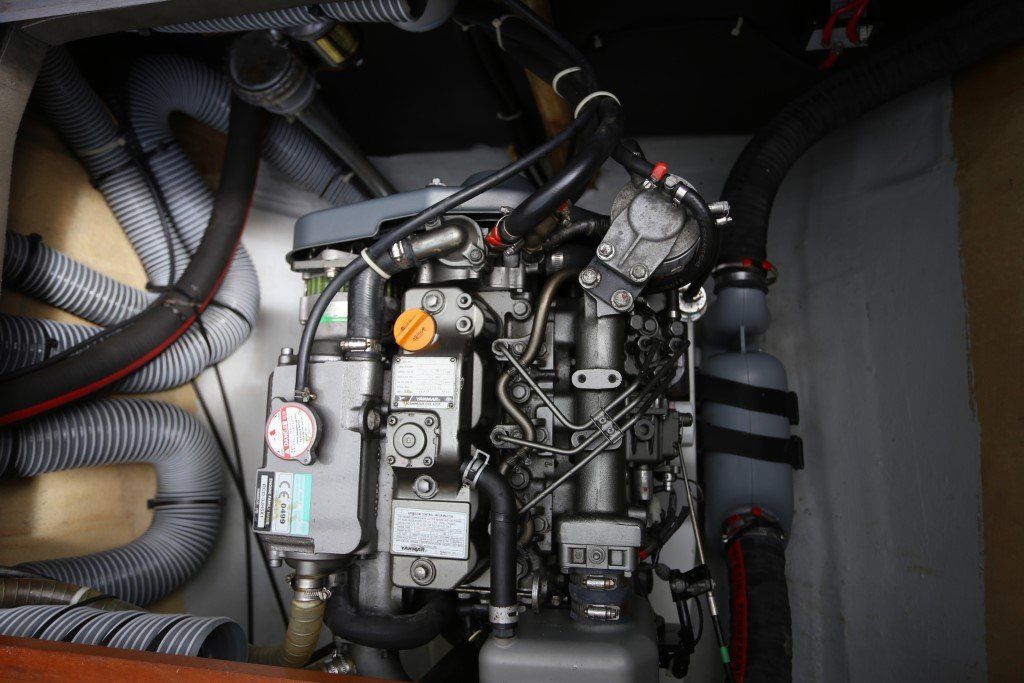

Engines
    • Access from opening hatch with stainless steel gas strut in transom
    • 2 x 40 hp sail drive diesel engines
    • Sound proofed engine compartments
    • Engine compartments air intakes on aft crossbeam
    • Engine compartments 12V blowers
    • 1 Westmariner start battery 1050MCA 12V (per engine) NEW 2018
    • Fuel filter with water separator
    • Sea water filter
    • Exhausts with wet mufflers
    • Saildrive SD50 New joints 2016
    • Propeller SPW Varioprop DF 107 3 Blade

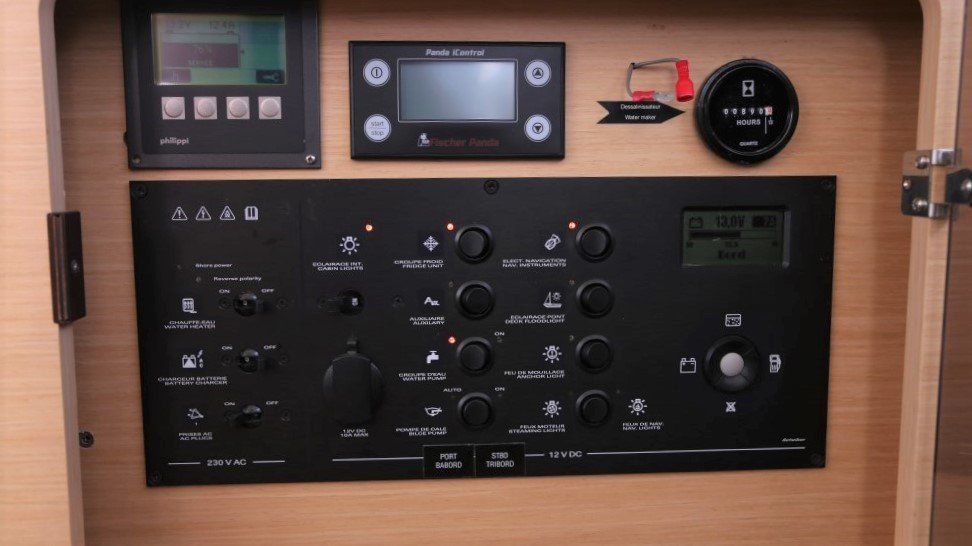

Electrical

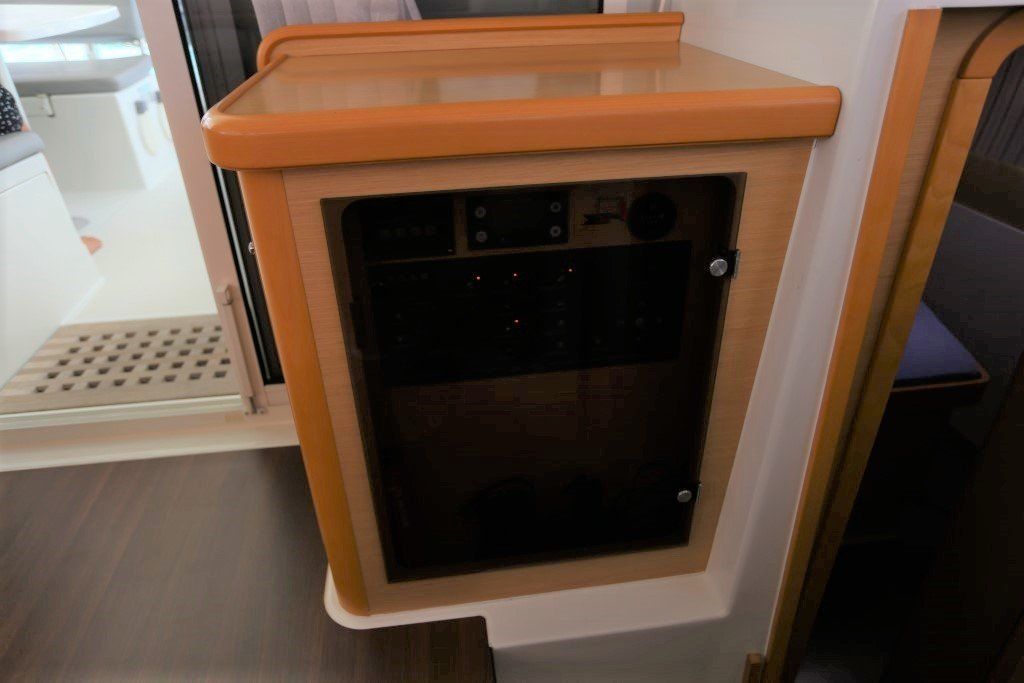

    • 12 V backlit electrical panel on port side of salon
    • LCD display with: voltmeter, Amp-meter, water level gauge, diesel level gauge, low voltage alarm for batteries
    • 4 x Victron house batteries: 12V - 165 Ah Deep cycle Gel batteries NEW 2017
    • Battery switches:
    • - House bank: under bed in aft port cabin
    • - Engine start: under bed in aft port & stbâbord cabin
Sails
    • 1 fully-roached mainsail, sail area 56 m2/603 sq.ft. and battens
    • 1 furling genoa, sail area 28 m2/301 sq.ft. with UV protective strip
    • 1 Gennaker 75m2 Triradial (sail need repair) with KSF2 Furler set-Top-down drum and swivel

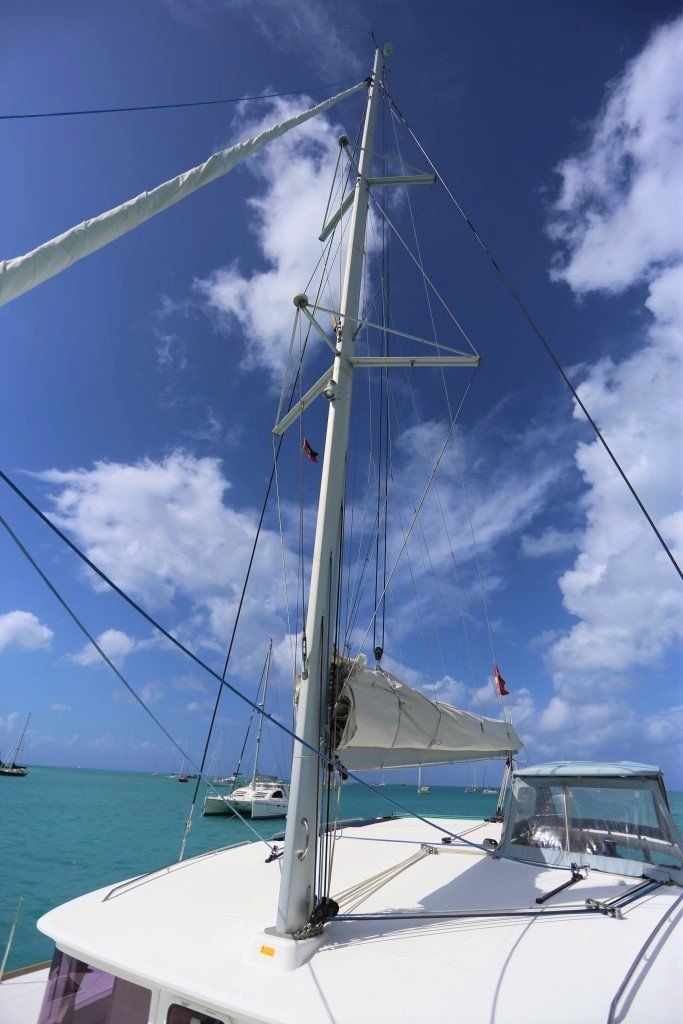

Rigging

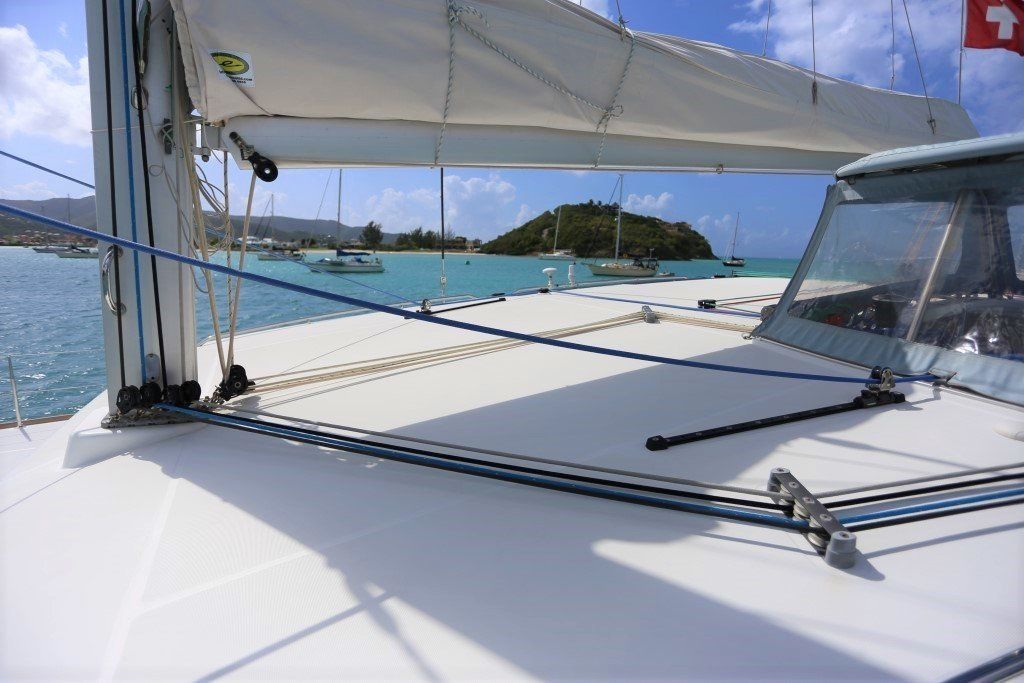

    • Standing Rigging
    • Anodized aluminium mast, P : 15.66m/51’5’’ deck stepped, (mast clearance : 20.30m / 66’7’’)
    • Double spreaders rig

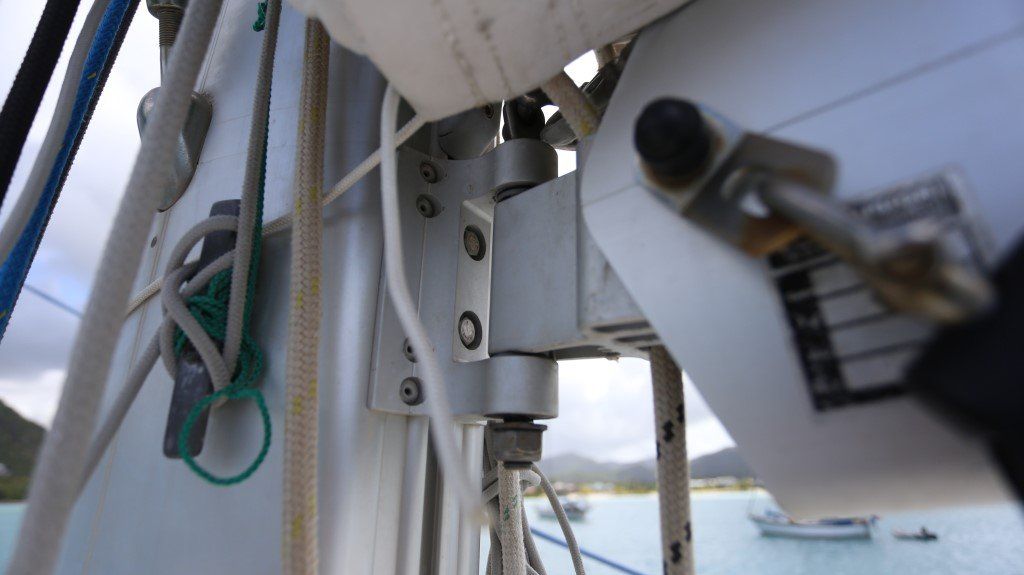

    • Anodized aluminium boom
    • 2 hull-mounted shroud chain plates
    • 1 crossbeam-mounted forestay chain plate
Running Rigging
    • 1 double purchase mainsail halyard
    • 1 genoa halyard
    • 1 multi-purchase mainsail sheet and traveller on hard top, led back to the helm station
    • 2 genoa sheets led back to the helm station
    • 2 genoa sheet tracks with adjustable cars
    • 3 winches at the helm station
1 Electric winch, 46.2 ST for:
      • 1 main sail halyard
      • 1 genoa halyard
      • Gennaker halyard and sheets (option)
      • 1 boom topping lift
      • 1 genoa furling line
1 winch, 46.2 ST for:
      • 1 main sail sheet
      • Reef 1 single line
      • Reef 2 single line
      • Reef 3 single line

1 winch, 46.2 ST for:
      • 1 port side genoa sheet
      • 1 port side main sail traveller line
      • 1 starboard main sail traveller line
1 winch, 46.2 ST for:
      • 1 stbd side genoa sheet
      • 1 stbd side main sail traveller line
      • 1 starboard main sail traveller line
1 winch, 40 ST for:
      • lifting dingy onto davits
    • 1 fixed mainsail outhaul
    • 1 stopper for genoa furling line on deck
    • 2 lazy jacks adjustable at mast base
    • 2 winch handle with holder
Ground Tackle

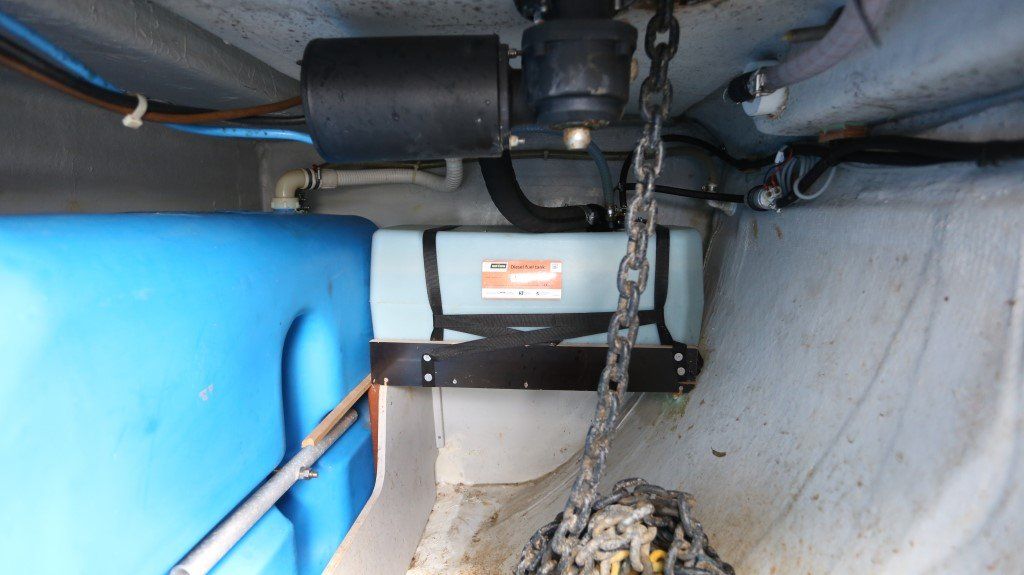

    • Windlass Quick Alpha (AL1012D 100W 10mm)
    • Chain 230 Feet ACCO 10mm G70
    • Main anchor is a Ultramarine 35kg
    • Second anchor is a Bugelanker 35kg (original Kaczirek)
Disclaimer
Lighthouse Yachting Ltd. offers the details of this vessel in good faith and has tried to verify all details as much as possible but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. As a buyer you should instruct your agent or surveyor to investigate and validate such details as you desire. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
