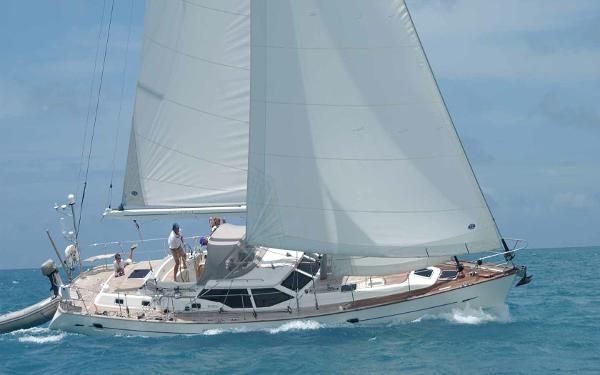

OYSTER 485 DECK SALOON - SOLD

VESSEL INFORMATION

ASKING PRICE

SOLD

LAUNCHED
1996
LENGTH
48' 6"
BEAM
14'
DRAFT
6' 2"
GUESTS
7
CABINS
3
HEADS
2
ENGINE
Perkins 4 M90 80 hp
HULL
GRP - White
DESIGNER
Holman & Pye - Oyster Design
BUILDER
Oyster Yachts

VESSEL SPECIFICATION

Description:

STYLISH BLUE WATER CRUISER

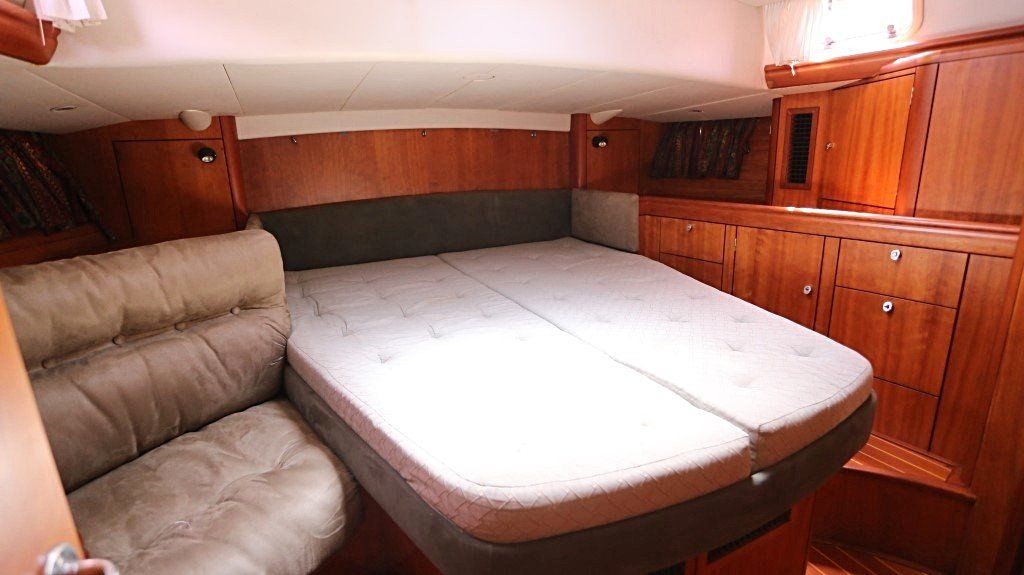

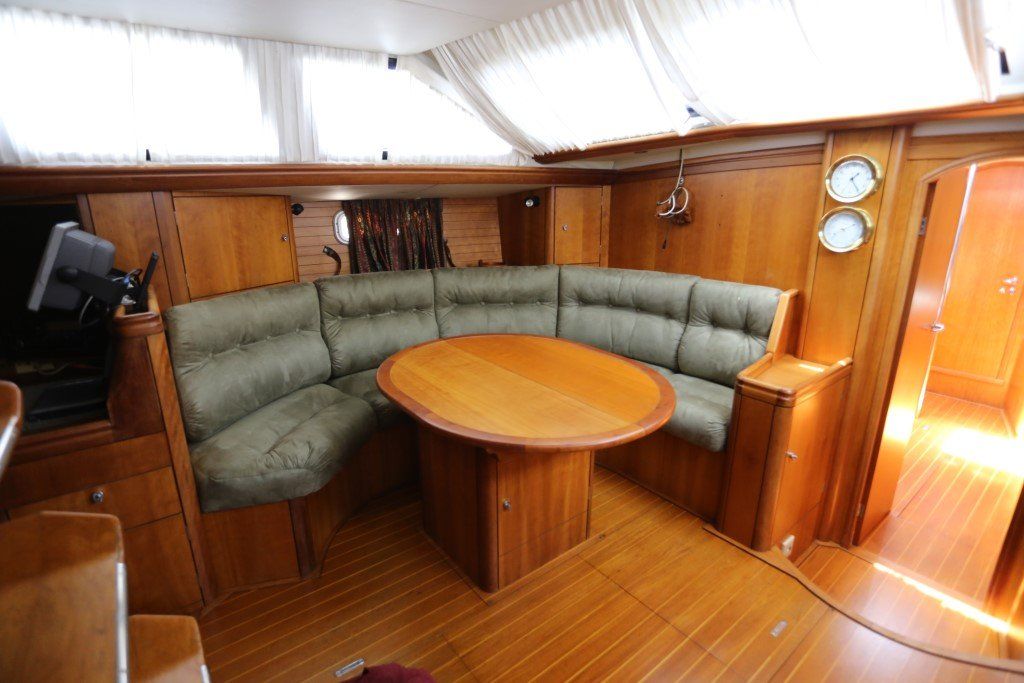

The 485 was designed by Holman and Pye to be handled by a couple as a safe long distance open ocean cruising boat. Admired as one of the most desirable sea kindly offshore cruising boats on the market. The 485 layout provides great privacy with two well-appointed staterooms on either end of the boat. The spacious saloon and open plan galley midships is a comfortable living area that is light and airy with loads of clever storage areas.


This vessel has new teak decks, new painted hull, new sails, mast has been removed refurbished and re-painted with all new instrumentation, new bimini and dodger, 2 x new Garmin touch screen plotters, new dingy and motor and a store room full of equipment and spares.

Additional Specs, Equipment and Information:

Specs
Builder: Oyster Yachts
Designer: Holman & Pye - Oyster Design
Flag of Registry: United States
Keel: Bulb
Hull Shape: Monohull

Dimensions
LOA: 48 ft 6 in
Beam: 14 ft 0 in
LWL: 39 ft 1 in
Maximum Draft: 6 ft 2 in
Displacement: 41000 lbs
Dry Weight: 41000 lbs
Ballast: 12675 lb. external lead

Engines
Total Power: 80 HP

Engine 1:
Engine Brand: Perkins Range 4 M90
Engine Model: Perkins Range 4 M90
Engine Type: Inboard
Engine/Fuel Type: Diesel
Engine Power: 80 HP

Accommodations
Number of single berths: 6
Number of heads: 2

Specifications

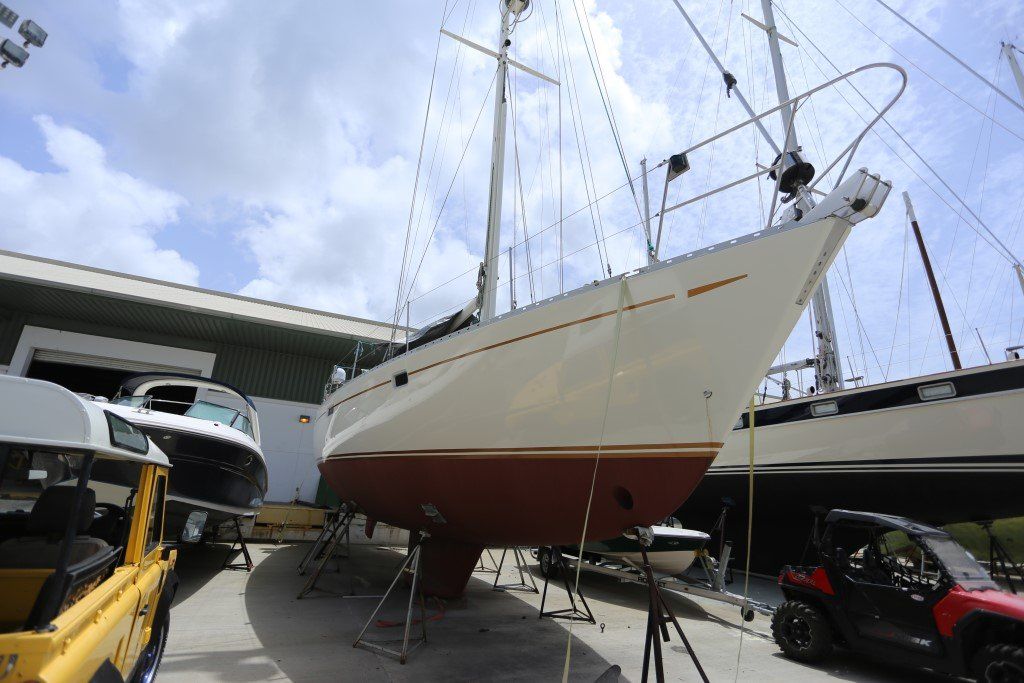

Hull: painted Oyster white (2017)

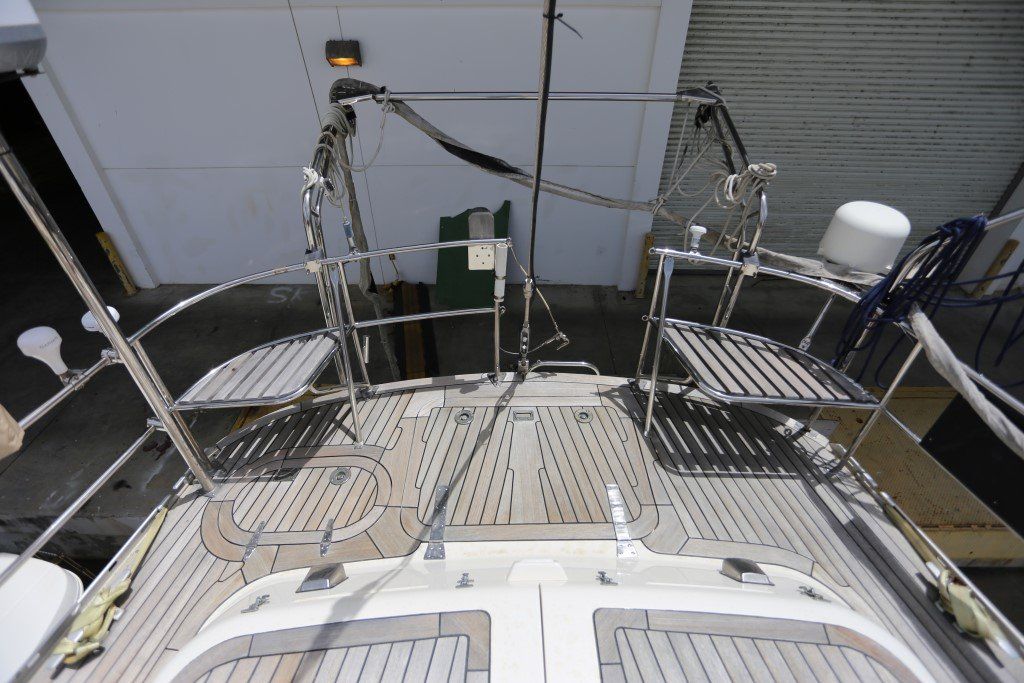

Decks: (New 2017)Teak over molded fiberglass with core material
Keel: Fin with bulb and skeg rudder
Topsides: Painted (2017)

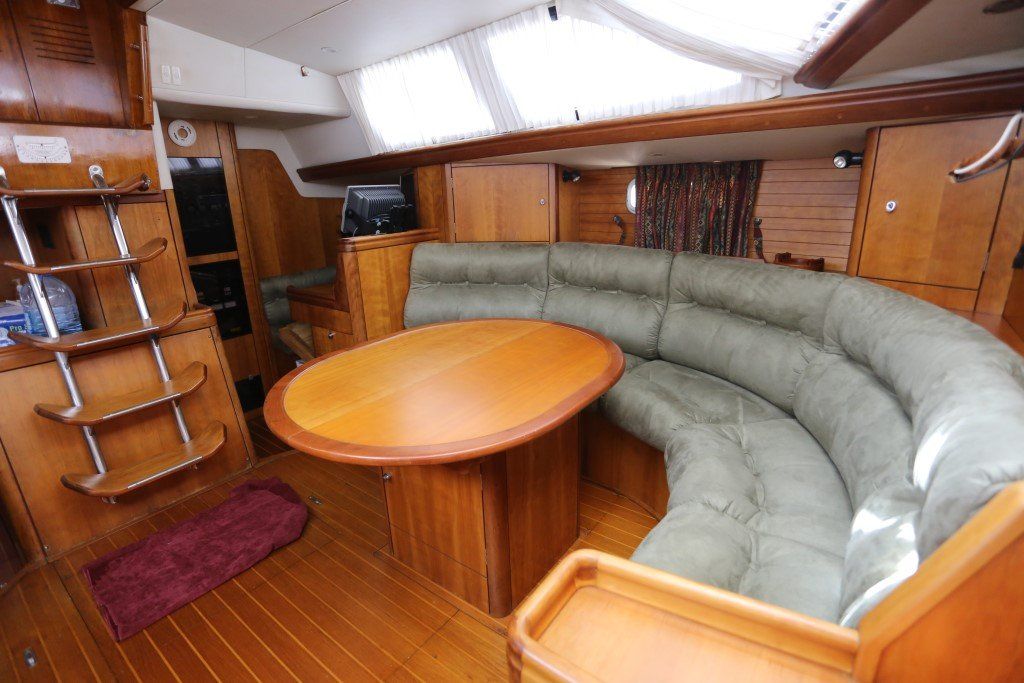

Interior: Vinyl overhead, cherry veneer wall covering, cherry trim, teak and holly sole and Corian counter surfaces

Engine:
  • Engine Perkins diesel
  • Approximate Speed: (KNOTS): 7.7 cruise, 8.7 full
  • HP/RPM: 80 @ 2500 NO. CYLS.: Four
  • Location: Behind companionway stairs
  • Model: Range M90 1021532 SERIAL: LD21532U705978A
  • Engine Hours: 1851
  • Engine Bed: Fiberglass stringers ENGINE COOLING SYSTEM: Fresh water
  • Fuel Filters: Racor primary and CAN secondary
  • Exhaust Line: Hose connected COOLED: Sea water
  • Exhaust Silencer: Fiberglass water collector type muffler
  • Controls: Mechanical cable
  • Reduction Gear: Hurth RATIO: 1.88/2.10 :1
  • Model: HBW2502.OR SERIAL: 17 25187
  • Shaft Log Type: Fiberglass with flex PACKING GLAND: Strong Seal dripless
  • Propeller: 22" diameter 3 - blade bronze Maxprop SPARE: None
  • Propeller Shaft: 35MM/1.5” diameter stainless steel STUB SHAFT
  • Struts: One single arm bronze and fiberglass sterntubes BEARINGS: Cutlass
  • Propeller Protection: Keel lower RUDDER: One skeg supported fiberglass
Electrical System:

Onan Generator
  • Hours: 657.5
  • Location: Aft of main engine beneath cockpit sole
  • Cooled: Fresh water
  • KW: 6.0
  • Voltage: 120/240 NO. CYLS.: Two R.P.M.: 3600
  • Exhaust Line: Hose connected to plastic muffler
  • Fuel Filters: Racor primary and Kubota secondary
Batteries
  • Spec: Nine 12-volt for 12 and 24 volt systems
  • Location: Salon center bilge, beneath nav station seat and salon port settee in battery boxes
  • Charging: Heart Freedom 25
Electrical
  • Lighting: 12-volt DC
  • Wiring: Thermoplastic and molded rubber
  • Switchboard: At nav station
  • Circuit breakers: Yes
  • Fused: Yes
  • Ground: Negative
TANKS:
Fuel
  • Size: One
  • Size: Approx 140 gallons total
  • Location: Bilge starboard in the salon
  • Material: Fiberglass
  • Valves: Approved
  • Location: At tank
  • Lines: Approved flexible and copper
Water
  • Quantity: Two
  • Size: Approx 180 gallons total capacity
  • Location: Bilge port in salon and beneath salon port forward settee
  • Material: Fiberglass and polyethylene
Holding
  • Quantity: One
  • Size: Approx. 20 gallons total capacity
  • Location: Forward stateroom port outboard forward hanging locker
  • Material: Stainless steel
Fittings & Equipment:
Deck hardware
  • Stainless steel and aluminum
Steering gear
  • Stainless steel cable to Whitlock pedestal
Ground tackle
  • 60 lb CQR anchor with approx. 250 feet of 12mm chain
  • 30 kg claw and Fortress FX-55 anchors in lazarette
  • Additional anchor 30 kg claw with approx. 20 feet of 3/8 inch chain and 200 feet of 5/8 inch nylon rode
Anchor windlass
  • Lewmar 2000 bi-directional (NEW 2017)
Other
  • VHF radio: Icom IC-M58 RADAR: Furuno Navnet 3D
  • Auto pilot: Autohelm ST7000 DEPTH FINDER: Furuno FI50
  • Chart plotter: Furuno Navnet 3D GPS: Furuno Navnet 3D
  • Knotlog: Furuno FI50 OTHER ELECTRONICS: See list on following page(s)
  • Antennas: VHF, three GPS, radar, satellite television, satellite phone, television, insulated backstay for SSB
  • Horn: Portable air
  • Air-conditioning: Marine Air Systems (3 units with digital controls)
  • Water heater: Electric with engine heat exchanger
  • Tender: Walker Bay RIB H.I.N. EWVG56 with Tohatsu 15 hp S.N: 039404AX
  • Bilge pumps: One electric automatic, two hand operated and two electric manual shower pumps
  • Outboard motor bracket on aft rail
  • Hot and cold shower and SS swim ladder on sugar scoop transom
  • Davits: SS dinghy davits
  • Sea water wash down on foredeck
  • BOW THRUSTER: Sidepower bow thruster
  • Foredeck flood light
  • Firdell blipper radar reflector
  • Masthead tri-color navigation light
  • Magma SS propane BBQ grill on aft rail

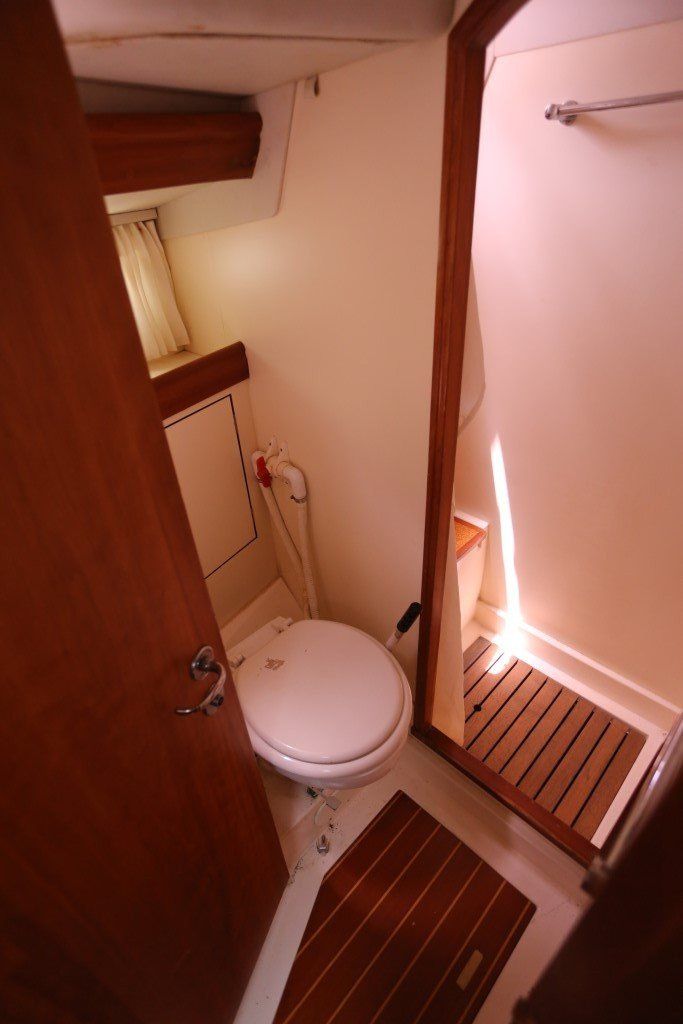

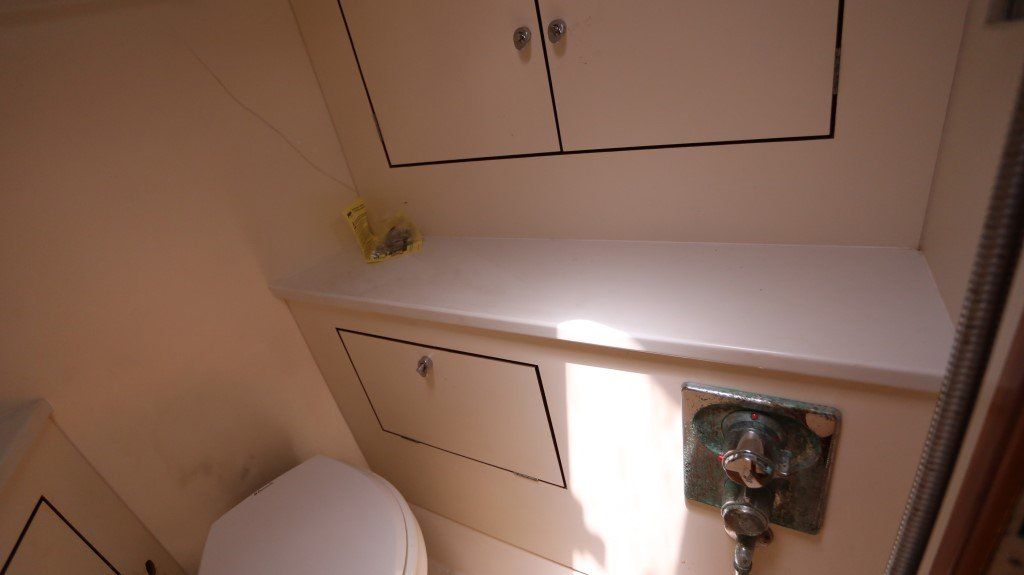

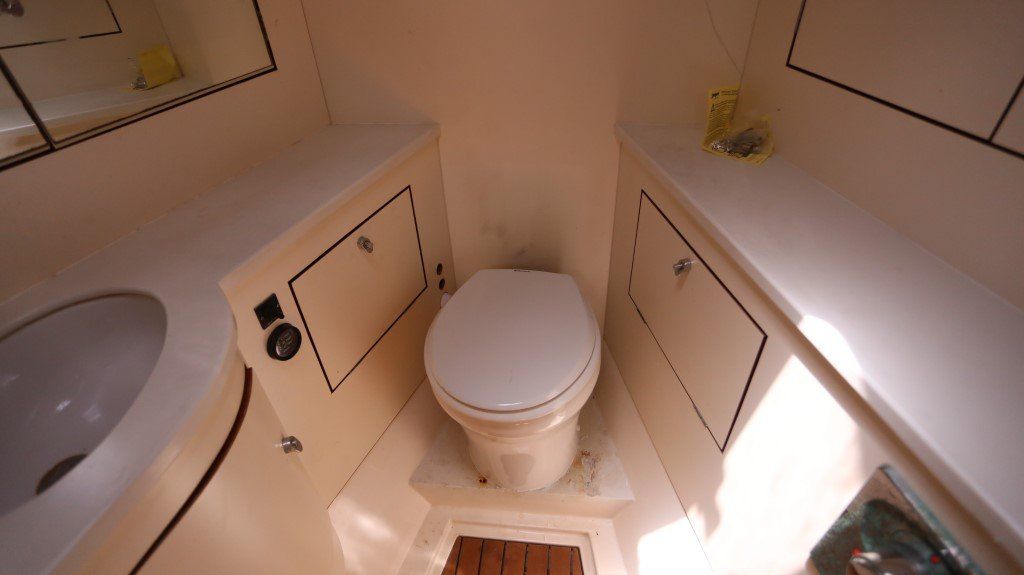

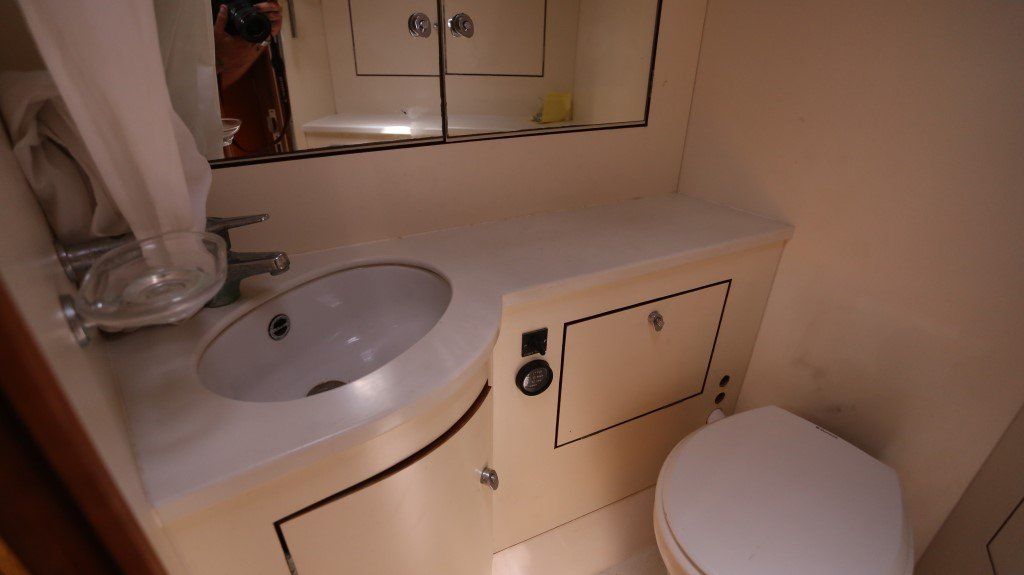

  • New electric heads fitted forward and aft (New 2017)
  • New upholstery in saloon

Spars & Rigging
  • Mast: Main (aluminum)
  • Boom: Main (aluminum
  • Standing rigging: 1 X 19 stainless steel wire
  • Running Rigging: Dacron line
Sails
  • Main - new 2017
  • Genoa - new 2017
  • Staysail and spinnaker
  • Hood Yacht Systems Seafurl jib furling system
  • Hood Stoway in-the-mast main sail furler
  • Rigid boom vang
  • Spinnaker pole
Winches

Cockpit
  • Two Harken 56.2 two speed ST electric primaries
  • Harken 32 two speed ST multipurpose
  • Harken 40 two speed ST multipurpose
Mast
  • Harken 42 two-Speed ST halyard
  • Harken 40 two speed ST halyard

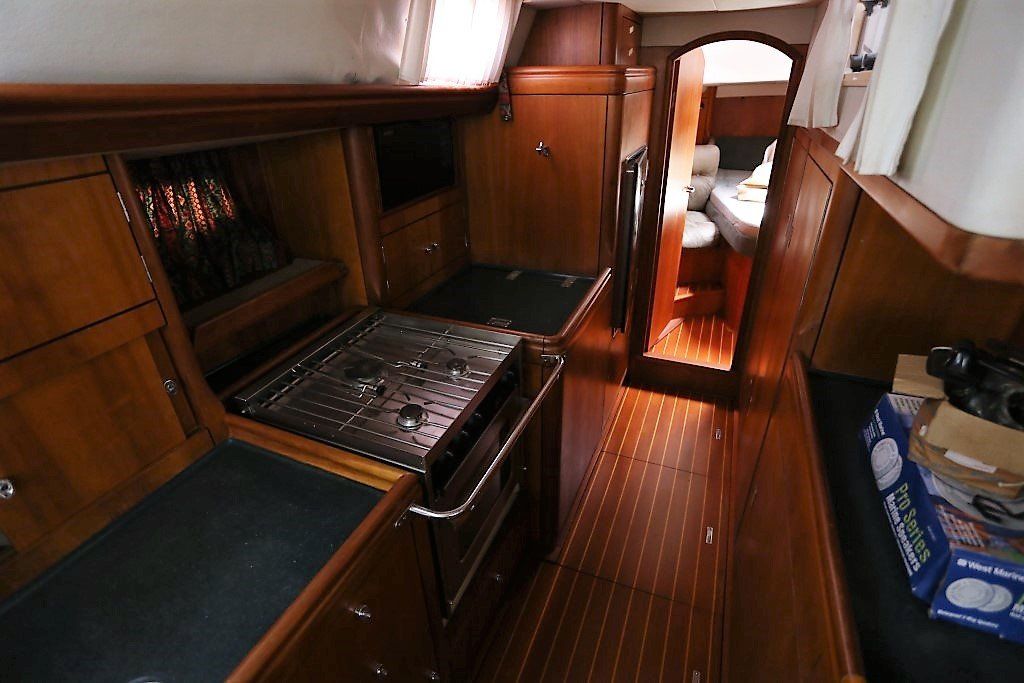

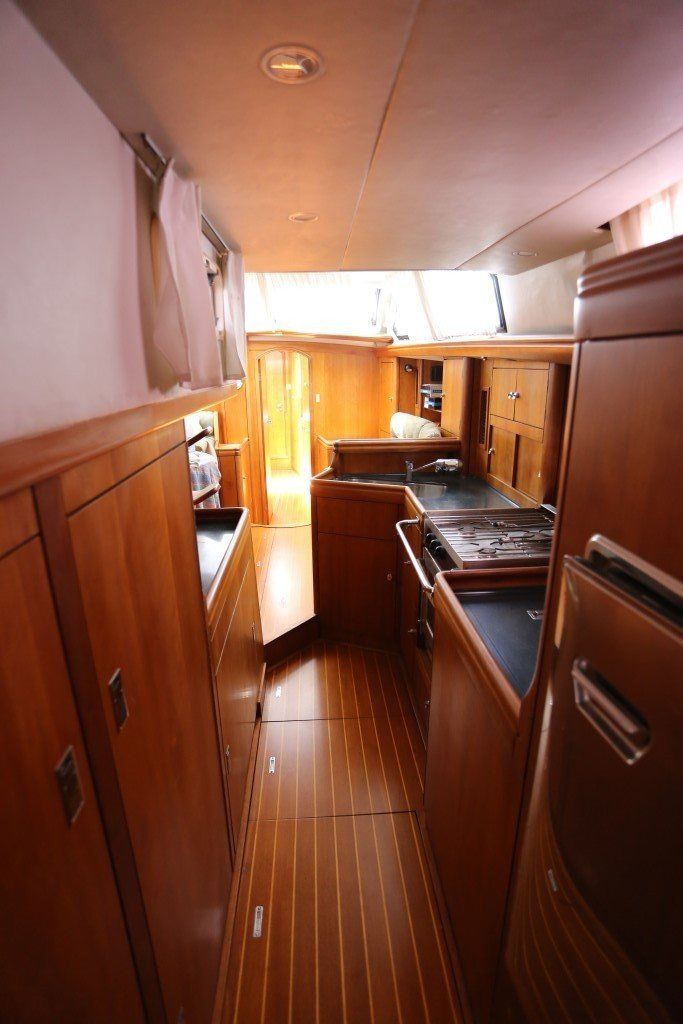

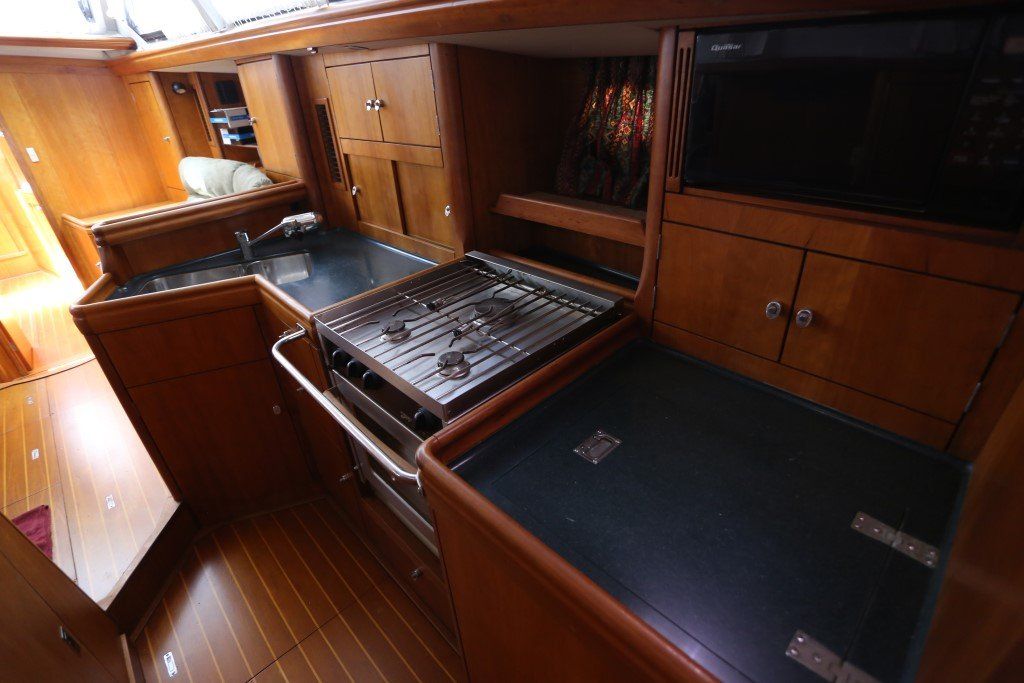

Galley
  • Location: Starboard aft of salon
  • Stove: Force 10 propane 3-burner stove/oven
  • Tank location: Aft deck starboard locker
  • Gas lines: Copper tubing and flexible rubber
  • Gas Shut-off: At burners, safety thermocouples, in-line valve, solenoid shut off valve and tanks
  • Refrigeration: Grunert 120VAC refrigerator/freezer with holding plates
  • Microwave: Quasar microwave oven
Safety Equipment
  • Flares
  • Life jackets: Three Type I
  • Type IV Throwable
  • Life raft: One approx. DBC/Swiftsure 6 person in soft pack
  • Portable extinguishers: Three 10 B:C dry chemical
  • Built-in system: Fireboy 3.1 kg FE-241
  • Location: Port forward in engine room
  • MOM8 man overboard module
Electronic Equipment

Cockpit
  • Garmin 7212 touch screen (new 2017)
  • Garmin GPSmap 2006C GPS/electronic chart plotter
  • Autohelm ST7000 autopilot
  • Three Furuno FI-50 multifunction instruments
  • Furuno Navnet 3D combination GPS/radar/electronic chart plotter
  • Bow thruster control (New 2017)
  • Cockpit speakers (New2017)

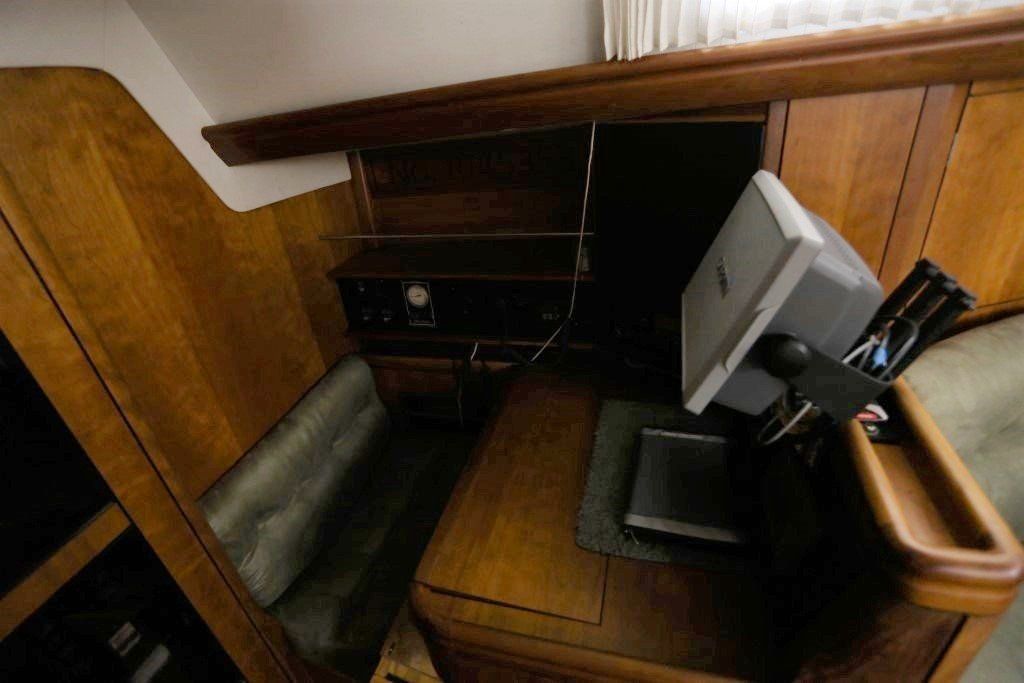

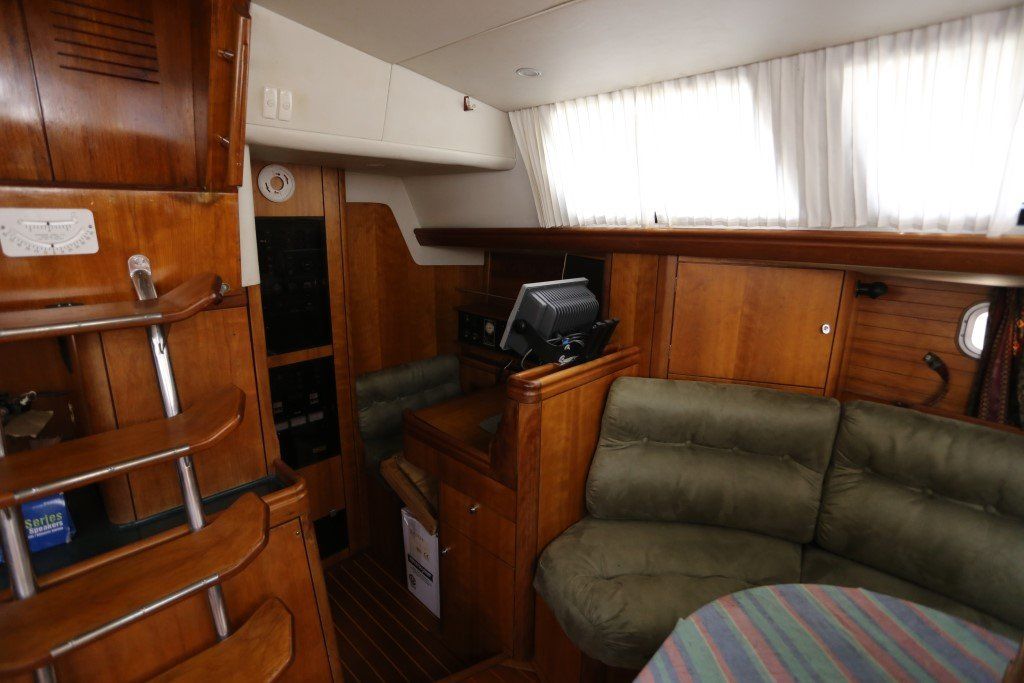

Nav Station
  • Garmin 7212 touch screen (New 2017)
  • Furuno Navnet 3D combination GPS/radar/electronic chart plotter
  • C-M710 HF radio transceiver
  • Icom VHF Marine IC-M58 VHF radio
  • Furuno RD-30 multifunction display
  • Furuno GP-32 GPS WAAS Navigator
  • Hart Tank Tender water/fuel level gauge
  • ACR Globalfix EPIRB
  • KVH Tracvision M3 tracking DSS television system
  • KVH Inmarsat satellite telephone system
Interior
  • Heart Interface Freedom 25 2500 watt inverter/charger
  • Hitachi TV with built in DVD player
  • Pioneer KVH-P4200RDS AM/FM/cassette stereo with Pioneer CD-P610 6-CD changer
  • Algae-X fuel conditioner
  • Large 120A engine alternator
  • Bilge high water alarm
Covers:
  • Cockpit Bimini and dodger, BBQ (NEW 2017)
Manufacturer Provided Description
The Oyster 485 is a well-proportioned yacht that looks good from any angle and offers a combination of excellent performance, ease of handling, and real comfort. Like all Oysters the 485 features a deck saloon configuration creating a light, airy saloon and unbeatable ventilation. The 485 is well proven as a blue water cruiser, with numerous ocean crossings and at least one circumnavigation to her credit. The 485 has a low center of gravity, high performance bulb keel, and a fully-protected skeg-hung rudder. Performance was demonstrated in an Olympic triangle race during Antigua Race Week, when two 485s led the fleet and showed tremendous speed, particularly to windward. The standard sloop rig is set up with a conventional spar with a fully-battened mainsail and lazy jacks for ease of handling. The majority of these yachts have been fitted with in-mast furling, which enables all sail handling functions to be undertaken from the cockpit. For performance-orientated sailors whose cruising area is away from the boisterous trade winds of the Caribbean we also offer a sport rig with taller sailplan, which is ideal for cruising areas where light airs predominate. The Oyster 485 has a spacious owner's stateroom aft featuring a centerline berth which makes the cabin feel light and airy, particularly in warm climates. This stateroom also incorporates a large head within which is a separate stall shower. Forward there's the usual Oyster-type "walkthrough" galley, which is ideally located within easy reach of the cockpit and saloon. Both sides of the galley incorporate counter space and ventilation is assured with a number of adjacent opening ports. The saloon uses the yacht's maximum beam to good effect and incorporates a pair of oversized opening hullports for use while at anchor or dock, which allow good athwartships ventilation. In addition, really good fore and aft ventilation is offered by the deck saloon with its two opening forward windows. The saloon table incorporates a "clam" type design so it can be used in the small size, closed position, typically for drinks or informal gatherings. The table then opens, to provide a much larger surface for dining, by means of an ingenious pair of additional leaves that unfold from underneath when the table is opened from its "clam" position. The yacht's forward accommodation offers a choice of a standard arrangement with a twin, upper - lower berth cabin offset to port, and a twin or double vee berth cabin forward. There is also a head with an integral shower offset to starboard. As an alternative we also offer an optional variant with only one double cabin forward, to suit those owners looking for a yacht with just two cabins, but offering a very high standard of comfort, comparable to the owner's stateroom, for two guests. On deck right aft there is a large size lazarette locker and adjacent propane gas cylinder locker, so that all the usual cruising amenities have suitable stowage. At the end of the aft coachroof there is a pair of large bin lockers with enough space to house a life raft and other safety equipment on one side, with more than enough room for fenders, docklines, and other gear that needs to be kept to hand when sailing. The stern platform has a folding bathing - safety ladder and provides an ideal place to board the yacht from a dinghy. It also houses an optional flush mounted locker for a hot and cold freshwater deck shower.

Disclaimer
Lighthouse Yachting Ltd. offers the details of this vessel in good faith and has tried to verify all details as much as possible but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. As a buyer you should instruct your agent or surveyor to investigate and validate such details as you desire. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
